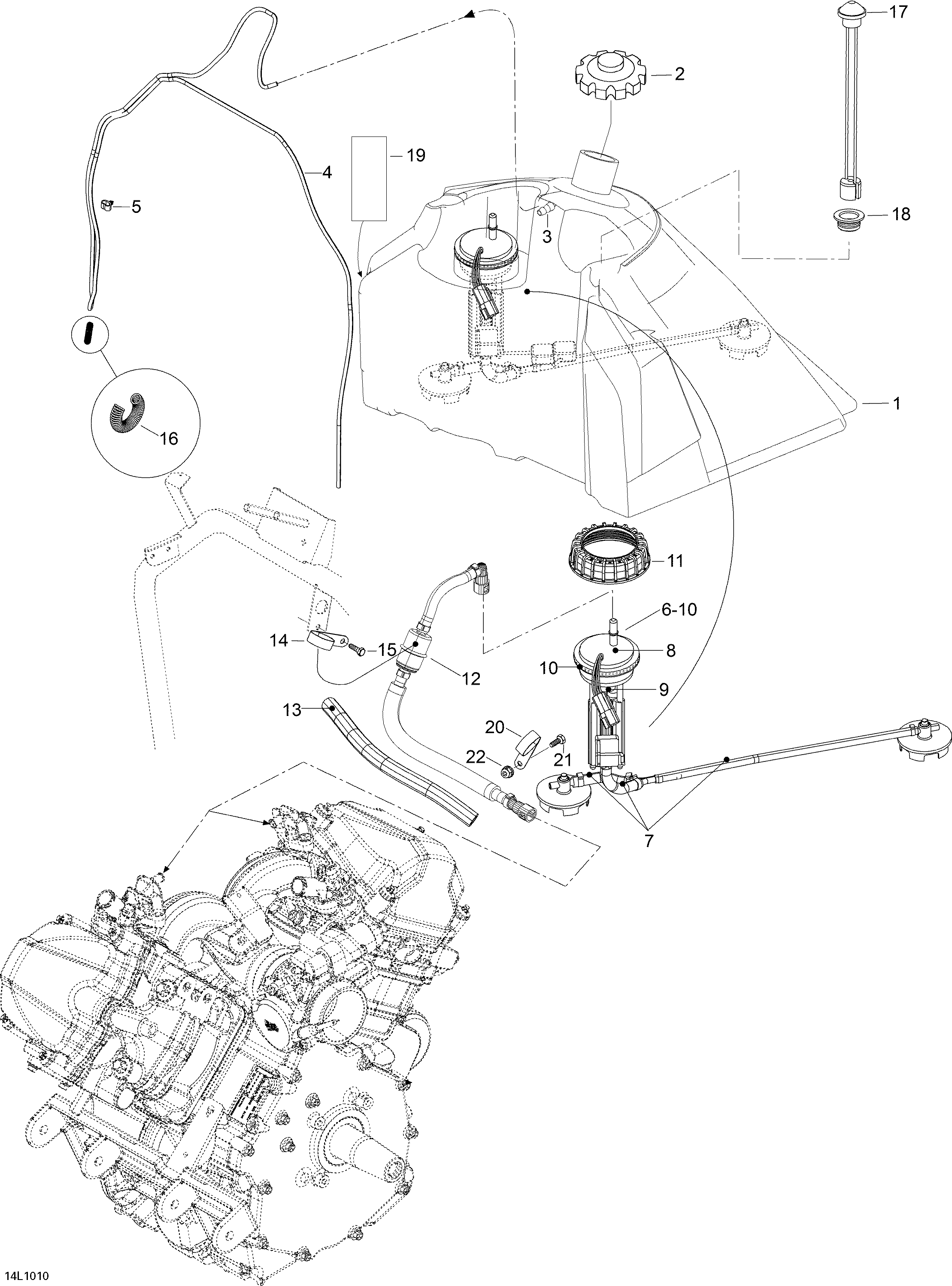

02- Fuel System для BRP Ski-Doo Skandic SWT V800 - 2010
-
№АртикулНазвание
-
1605151302 Fuel TankFuel Tank
-
2580259400 CapCap
-
3404127600 NippleNipple
-
4M39035 HoseHose
-
5513032923 Tube ClampTube Clamp
-
6605355331 Fuel Sensor Module Ass'y. Includes 6 to 10Fuel Sensor Module Ass'y. Includes 6 to 10
-
7M19183 Fuel Hose KitFuel Hose Kit
-
8861302600 Fuel Pump KitFuel Pump Kit
-
9861302100 Regulator KitRegulator Kit
-
11513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
12605356034 Hose Ass'yHose Ass'y
-
13M27127 TubingTubing
-
14513033047 Open ClampOpen Clamp
-
15M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
16M25003 SpringSpring
-
17605351982 Fuel GaugeFuel Gauge
-
18293720058 GrommetGrommet
-
19M44001 Reflective SheetReflective Sheet
-
20M27092 ClipClip
-
21207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
