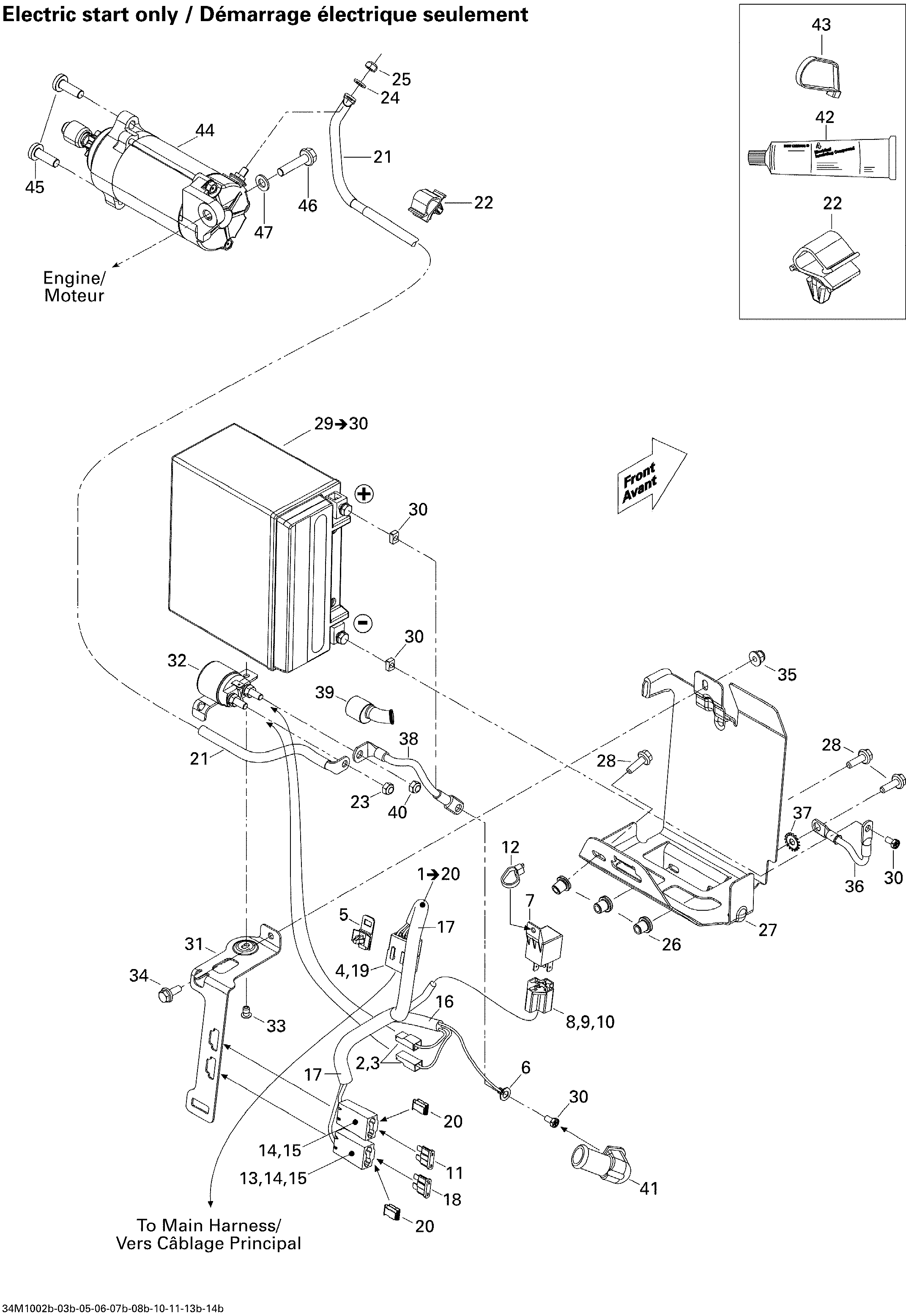

10- Battery And Starter 800R PTEK для BRP Ski-Doo Renegade X 800R PTEK - 2010

  • №
    Артикул
    Название
  • 1
    515176773 Battery Harness. Includes 1 to 20
    Battery Harness. Includes 1 to 20
  • 2
    409010100 Female Terminal
    Female Terminal
  • 3
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 4
    515175232 Male Terminal
    Male Terminal
  • 5
    515175283 Housing Support
    Housing Support
  • 6
    278000992 Open Barrel
    Open Barrel
  • 7
    410113200 Relay
    Relay
  • 8
    409209900 Female Housing, 5 Circuits
    Female Housing, 5 Circuits
  • 9
    561503100 Female Terminal
    Female Terminal
  • 10
    561503100 Female Terminal
    Female Terminal
  • 11
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 12
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 13
    409011600 Female Terminal
    Female Terminal
  • 14
    409004200 Female Terminal
    Female Terminal
  • 15
    409004000 Fuse Holder
    Fuse Holder
  • 16
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 17
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 18
    278000344 Fuse, 5 Amperes
    Fuse, 5 Amperes
  • 19
    515175817 Male Terminal Housing, 8 Circuits
    Male Terminal Housing, 8 Circuits
  • 20
    710000992 Clip
    Clip
  • 21
    515176785 Battery Wire
    Battery Wire
  • 22
    515176795 Clip
    Clip
  • 23
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 24
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 25
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 26
    415107300 Insert
    Insert
  • 27
    515176886 Battery Support Ass'y
    Battery Support Ass'y
  • 28
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 29
    410301203 Battery, 18 Amperes. Includes 29 to 30
    Battery, 18 Amperes. Includes 29 to 30
  • 30
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 31
    515176368 Battery Strip
    Battery Strip
  • 32
    515176501 Starter Relay
    Starter Relay
  • 33
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 34
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 35
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 36
    515176358 Ground Wire
    Ground Wire
  • 37
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 38
    515176556 Battery Wire
    Battery Wire
  • 39
    515175919 Protector Cap
    Protector Cap
  • 40
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 41
    710000495 Protector Cap
    Protector Cap
  • 42
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 43
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 43
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 43
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 43
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 44
    515176858 Starter
    Starter
  • 45
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 46
    207583544 Hex Flanged Screw M8 X 35, Scotch Grip
    Hex Flanged Screw M8 X 35, Scotch Grip
  • 47
    250200008 Flat Washer 8 mm
    Flat Washer 8 mm
