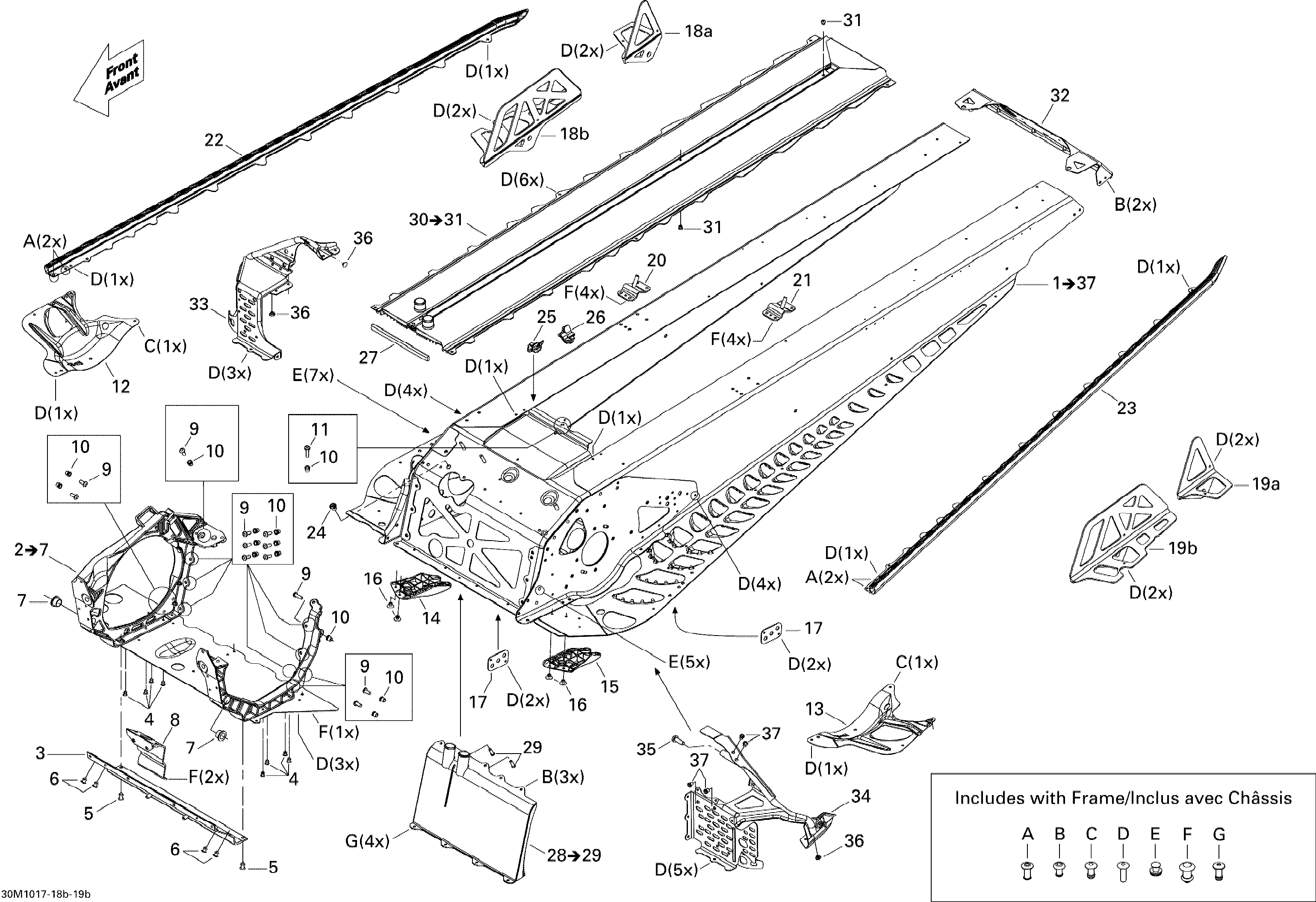

09- Frame X для BRP Ski-Doo Renegade X 1200 - 2010

  • №
    Артикул
    Название
  • 1
    415129478 Frame 137'' Ass'y. Includes 1 to 37, White-White Model
    Frame 137'' Ass'y. Includes 1 to 37, White-White Model
  • 1
    415129479 Frame 137'' Ass'y. Includes 1 to 37, Black-Black Model
    Frame 137'' Ass'y. Includes 1 to 37, Black-Black Model
  • 2
    518326409 E-Module Ass'y. Includes 2 to 7
    E-Module Ass'y. Includes 2 to 7
  • 3
    518326198 Front Member
    Front Member
  • 4
    293150144 Stavex Rivet
    Stavex Rivet
  • 5
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 6
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 7
    505070954 Cushion
    Cushion
  • 8
    518325371 MAG Engine Support
    MAG Engine Support
  • 9
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 10
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 11
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 12
    518324874 RH Reinforcement
    RH Reinforcement
  • 13
    518324875 LH Reinforcement
    LH Reinforcement
  • 14
    518325782 RH Deflector
    RH Deflector
  • 15
    518325783 LH Deflector
    LH Deflector
  • 16
    293150104 Pop Rivet 3/16'', Black
    Pop Rivet 3/16'', Black
  • 17
    518201321 Reinforcement Plate
    Reinforcement Plate
  • 18a
    518326050 RH Slide Bracket
    RH Slide Bracket
  • 19a
    518326051 LH Slide Bracket
    LH Slide Bracket
  • 20
    518325973 RH Rear Base
    RH Rear Base
  • 21
    518325974 LH Rear Base
    LH Rear Base
  • 22
    518325377 RH Roller
    RH Roller
  • 23
    518325378 LH Roller
    LH Roller
  • 24
    415107300 Insert
    Insert
  • 25
    518325653 RH Seal
    RH Seal
  • 26
    518325654 LH Seal
    LH Seal
  • 27
    293200105 Neoprene Seal
    Neoprene Seal
  • 28
    518326489 Front Radiator Ass'y. Includes 28 to 29
    Front Radiator Ass'y. Includes 28 to 29
  • 29
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 30
    518325667 Rear Radiator Ass'y. Includes 30 to 31
    Rear Radiator Ass'y. Includes 30 to 31
  • 31
    293150144 Stavex Rivet
    Stavex Rivet
  • 32
    518325421 Rear Cap
    Rear Cap
  • 33
    518326216 RH Stirup
    RH Stirup
  • 34
    518326239 LH Stirup
    LH Stirup
  • 35
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 36
    293730042 Dart
    Dart
  • 37
    293450268 Insert
    Insert
  • A
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • B
    390909200 Avex Rivet
    Avex Rivet
  • C
    390909100 Avex Rivet
    Avex Rivet
  • D
    293150144 Stavex Rivet
    Stavex Rivet
  • E
    293150146 Henrob Rivet
    Henrob Rivet
  • F
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • G
    293150175 Monobolt Rivet
    Monobolt Rivet
