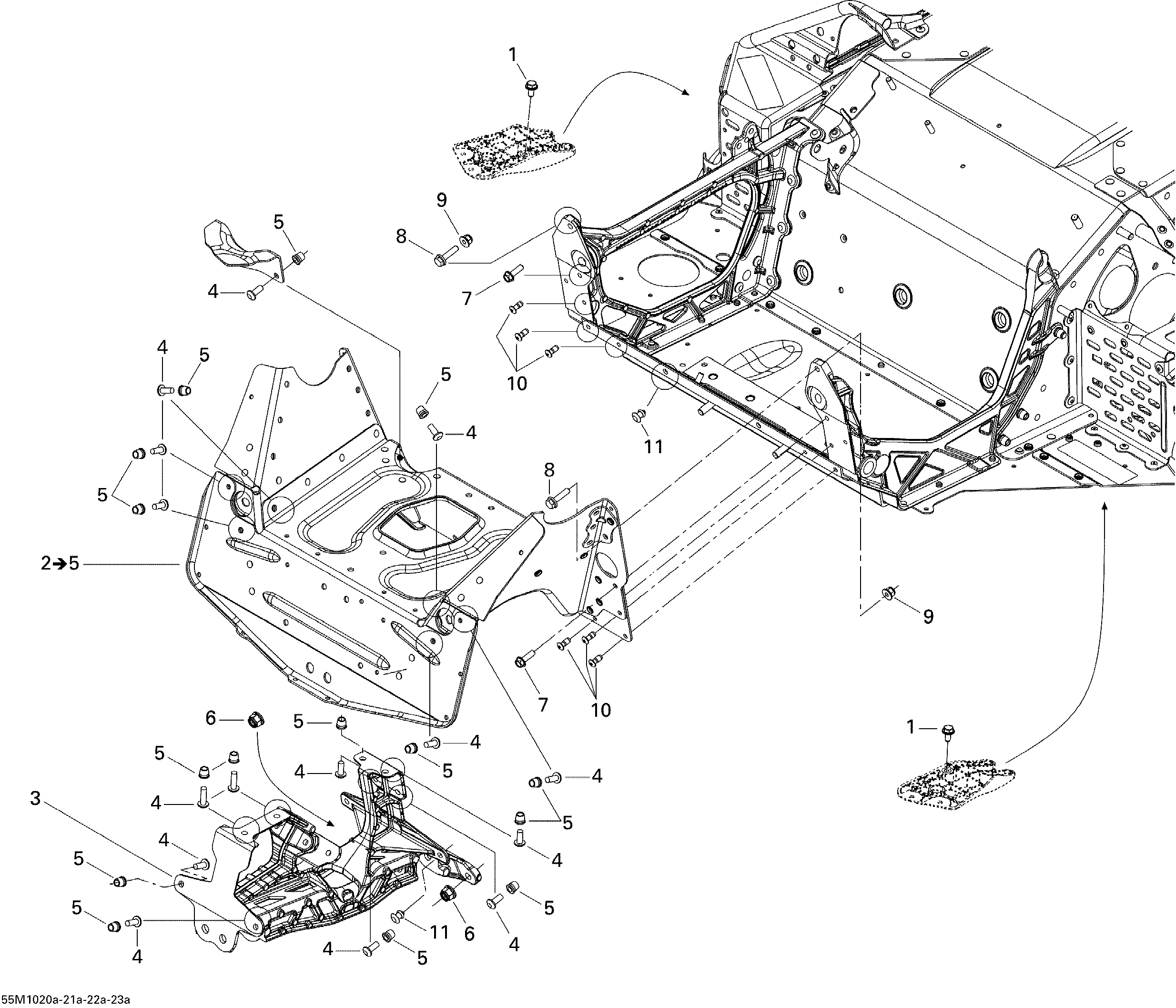

09- Frame and Components 1 для BRP Ski-Doo Renegade Sport 550F - 2010
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2518325567 S-ModuleS-Module
-
3518325925 Front Suspension SupportFront Suspension Support
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10293150175 Monobolt RivetMonobolt Rivet
-
11293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
