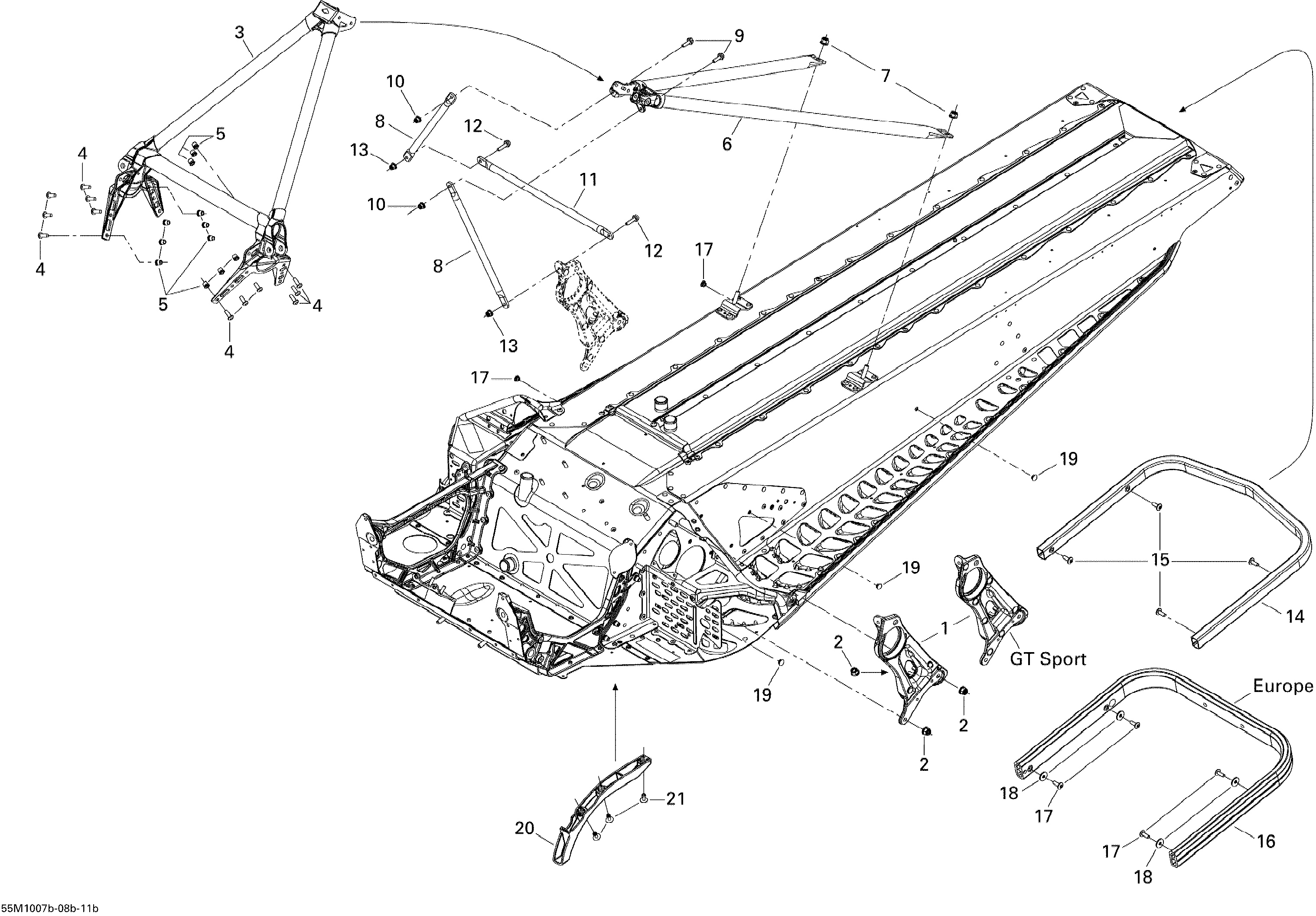

09- Frame and Components 2- Backcountry X для BRP Ski-Doo Renegade BackCountry X 800R PTEK - 2010
-
№АртикулНазвание
-
1518326192 Driven Pulley SupportDriven Pulley Support
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3518325929 Front MemberFront Member
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6518325927 Rear MemberRear Member
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8518325114 Upper Column SupportUpper Column Support
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11518325115 Center Column SupportCenter Column Support
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14518325481 Rear BumperRear Bumper
-
15250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
16518326414 Rear Bumper. EuropeRear Bumper. Europe
-
17250000402 Torx-Truss Screw M6 X 18. EuropeTorx-Truss Screw M6 X 18. Europe
-
18224061201 Flat Washer. EuropeFlat Washer. Europe
-
19293730047 Dart 8 mm, BlackDart 8 mm, Black
-
20518324985 Front ProtectorFront Protector
-
21293150108 Pop Rivet 3/16''Pop Rivet 3/16''
