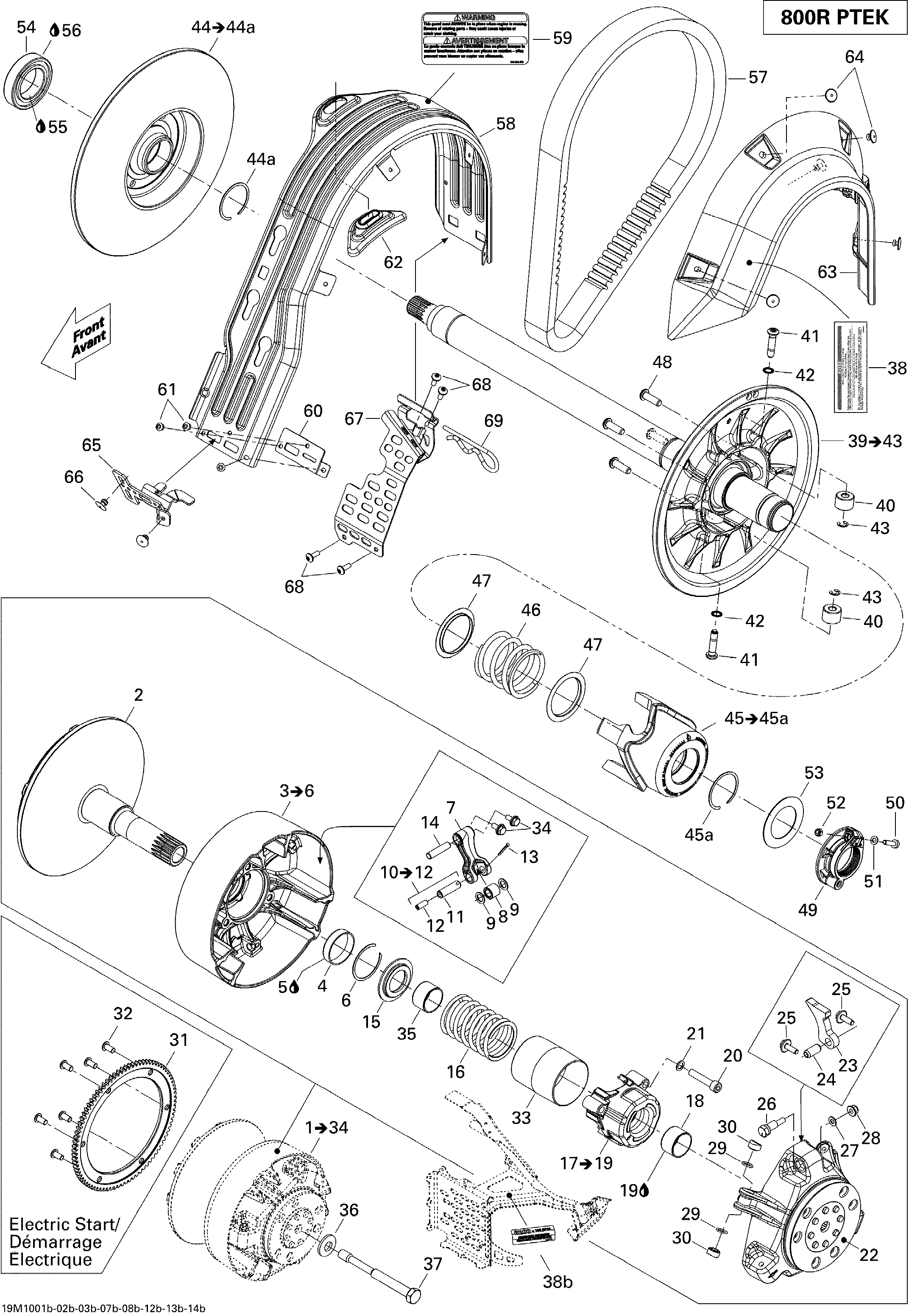

05- Pulley System 800R PTEK для BRP Ski-Doo Renegade Adrenaline 800R PTEK - 2010

№

Артикул

Название
2

417222966 Fixed Flange Ass'y

Fixed Flange Ass'y
3

417223093 Sliding Flanged Ass'y. Includes 3 to 6

Sliding Flanged Ass'y. Includes 3 to 6
4

417223086 Cushion

Cushion
5

293800118 Loctite 680, 50 ml

Loctite 680, 50 ml
6

293370037 Circlip

Circlip
7

417222671 Lever

Lever
8

417222947 Roller

Roller
9

417004302 Stopper Washer

Stopper Washer
10

417222594 Pin. Includes 10 to 12

Pin. Includes 10 to 12
13

732958001 Cotter Pin

Cotter Pin
14

417223164 Lever Axle

Lever Axle
15

417222312 Spring Seat

Spring Seat
16

415034900 Spring, Violet/blue

Spring, Violet/blue
17

417222759 Spring Cover Ass'y. Includes 17 to 19

Spring Cover Ass'y. Includes 17 to 19
18

417009204 Bushing

Bushing
19

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml
20

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40
21

250200009 Lock Washer 8 mm

Lock Washer 8 mm
22

417223200 Governor Cup Ass'y

Governor Cup Ass'y
23

417222546 Ramp 414. With Track 15''

Ramp 414. With Track 15''
23

417222508 Ramp 413. With Track 16''

Ramp 413. With Track 16''
24

250400050 Spring Pin M10 X 22

Spring Pin M10 X 22
25

250000418 Flanged Hex. Screw M6 X 18, Scotch Grip

Flanged Hex. Screw M6 X 18, Scotch Grip
26

417223197 Calibration Screw

Calibration Screw
27

417005600 Washer

Washer
28

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
29

732401030 O-Ring

O-Ring
30

417223021 Slider Shoe

Slider Shoe
31

417222952 Ring Gear. With Electric Starter

Ring Gear. With Electric Starter
32

250000243 Torx Screw M8 X 16, Scotch Grip. With Electric Starter

Torx Screw M8 X 16, Scotch Grip. With Electric Starter
33

417009205 Guard

Guard
34

250000416 Serrated Hex. Flange Bolt M6

Serrated Hex. Flange Bolt M6
35

417222826 Bushing

Bushing
36

250200006 Spring Washer 14 mm

Spring Washer 14 mm
37

417300394 Drive Bolt Pulley

Drive Bolt Pulley
38

516003708 Decal, Notice, Drive Pulley Bolt

Decal, Notice, Drive Pulley Bolt
39

417127174 Fixe Flange Ass'y. Includes 39 to 43

Fixe Flange Ass'y. Includes 39 to 43
40

417127016 Roller

Roller
41

417127128 Stud

Stud
42

250200009 Lock Washer 8 mm

Lock Washer 8 mm
43

414753500 Circlip

Circlip
44

417126955 Sliding Flange Ass'y. Includes 44 to 44a

Sliding Flange Ass'y. Includes 44 to 44a
44a

293370049 Circlip

Circlip
45

417126973 Cam Ass'y. Includes 45 to 45a

Cam Ass'y. Includes 45 to 45a
45a

293370049 Circlip

Circlip
46

417127137 Spring

Spring
47

417127116 Swivel Abutment

Swivel Abutment
48

250000283 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip
49

417127173 Pulley Adjuster Ass'y

Pulley Adjuster Ass'y
50

208652044 Phillips Screw M5 X 20

Phillips Screw M5 X 20
51

234051410 Flat Washer M5

Flat Washer M5
52

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5
53

417127155 Washer

Washer
54

504152574 Ball Bearing

Ball Bearing
55

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml
56

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz
57

417300377 Belt

Belt
58

417300357 Belt Guard

Belt Guard
59

516002670 Warning Decal, Security Belt Guard

Warning Decal, Security Belt Guard
60

417300380 Reinforcement

Reinforcement
61

390909200 Avex Rivet

Avex Rivet
62

417300381 Guide

Guide
63

417300356 Side Protector

Side Protector
64

293150103 Pop Rivet

Pop Rivet
65

417300360 Front Belt Guard Bracket

Front Belt Guard Bracket
66

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
67

417300375 Belt Guard Bracket

Belt Guard Bracket
68

250000145 Torx Screw M5 X 14

Torx Screw M5 X 14
69

114045200 Hair Pin

Hair Pin
