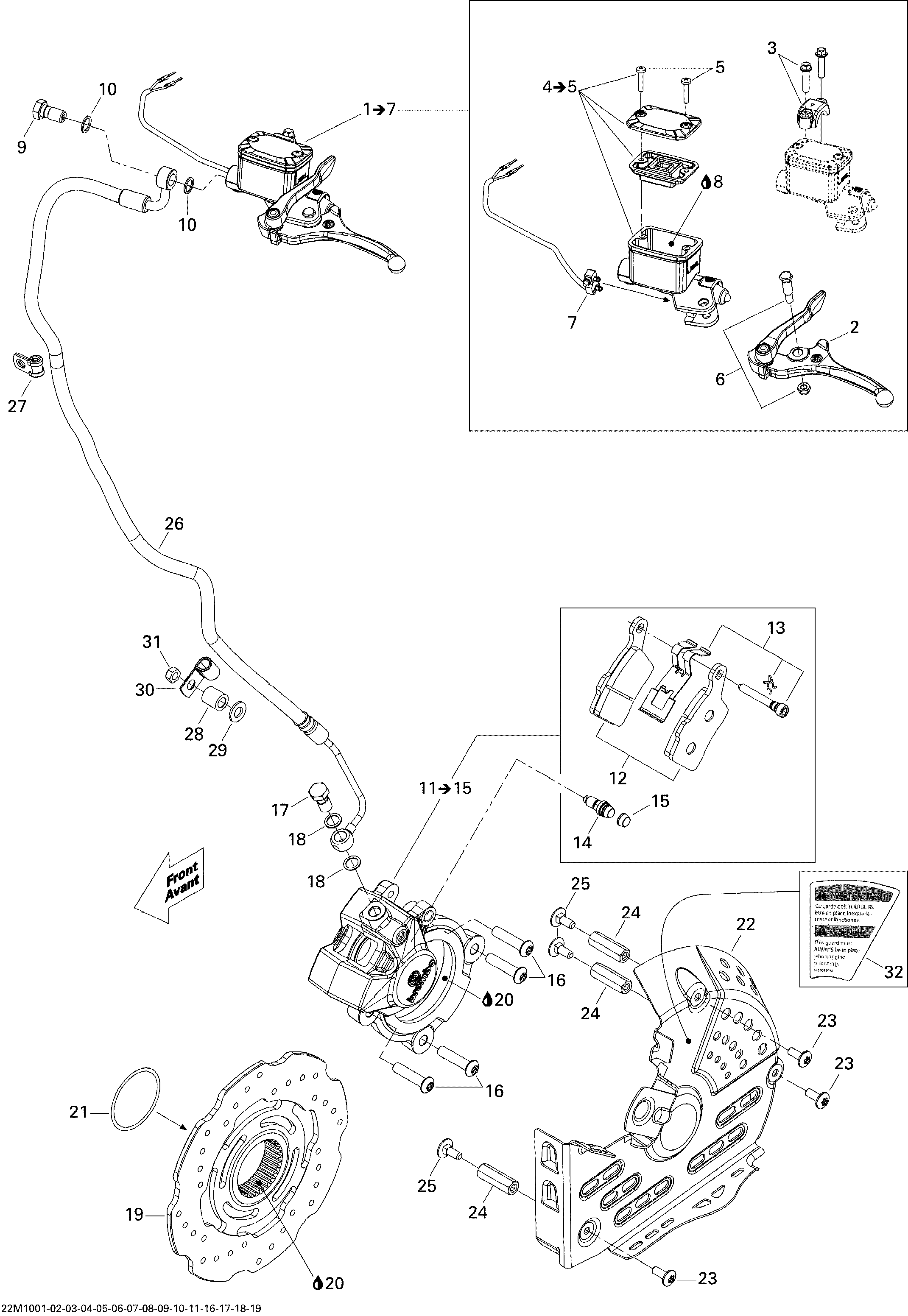

06- Hydraulic Brakes для BRP Ski-Doo MX Z X 800R PTEK - 2010

  • №
    Артикул
    Название
  • 1
    507032432 Master Cylinder Ass'y. Includes 1 to 7
    Master Cylinder Ass'y. Includes 1 to 7
  • 2
    507032476 Lever
    Lever
  • 3
    507032477 Clamp And Screw Kit
    Clamp And Screw Kit
  • 4
    507032478 Reservoir Ass'y. Includes 4 to 5
    Reservoir Ass'y. Includes 4 to 5
  • 5
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 6
    415030000 Pin Ass'y
    Pin Ass'y
  • 7
    507032479 Microswitch
    Microswitch
  • 8
    293600062 Brake Fluid, GTLMA, DOT 4, 12 X 354 ml
    Brake Fluid, GTLMA, DOT 4, 12 X 354 ml
  • 9
    414920500 Banjo Bolt
    Banjo Bolt
  • 10
    414920600 Washer
    Washer
  • 11
    507032500 Brake Caliper Ass'y. Includes 11 to 15
    Brake Caliper Ass'y. Includes 11 to 15
  • 12
    507032473 Brake Pads Kit
    Brake Pads Kit
  • 13
    507032474 Kit, Pin, Clip, Spring
    Kit, Pin, Clip, Spring
  • 14
    507032475 Bleeder
    Bleeder
  • 15
    414989700 Boot
    Boot
  • 16
    250000301 Torx Screw M8 X 35, Scotch Grip
    Torx Screw M8 X 35, Scotch Grip
  • 17
    414920500 Banjo Bolt
    Banjo Bolt
  • 18
    414920600 Washer
    Washer
  • 19
    507032487 Disk
    Disk
  • 20
    293800070 Loctite 767, Antiseize Lubricant, 8 oz
    Loctite 767, Antiseize Lubricant, 8 oz
  • 21
    293300134 O-Ring
    O-Ring
  • 22
    507032446 Disk Protector
    Disk Protector
  • 23
    250000223 Torx Screw M6 X 16. Black/Black Model
    Torx Screw M6 X 16. Black/Black Model
  • 23
    250000365 Torx Screw M6 X 16. White/White Model
    Torx Screw M6 X 16. White/White Model
  • 24
    507032497 Threaded Tube
    Threaded Tube
  • 25
    207761644 Carriage Bolt M6 X 16
    Carriage Bolt M6 X 16
  • 26
    507032504 Hose
    Hose
  • 27
    705600459 Clamp
    Clamp
  • 28
    293900082 Bushing
    Bushing
  • 29
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 30
    705600459 Clamp
    Clamp
  • 31
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 32
    516003803 Warning Decal, Guard in Place. Black/Black Model
    Warning Decal, Guard in Place. Black/Black Model
