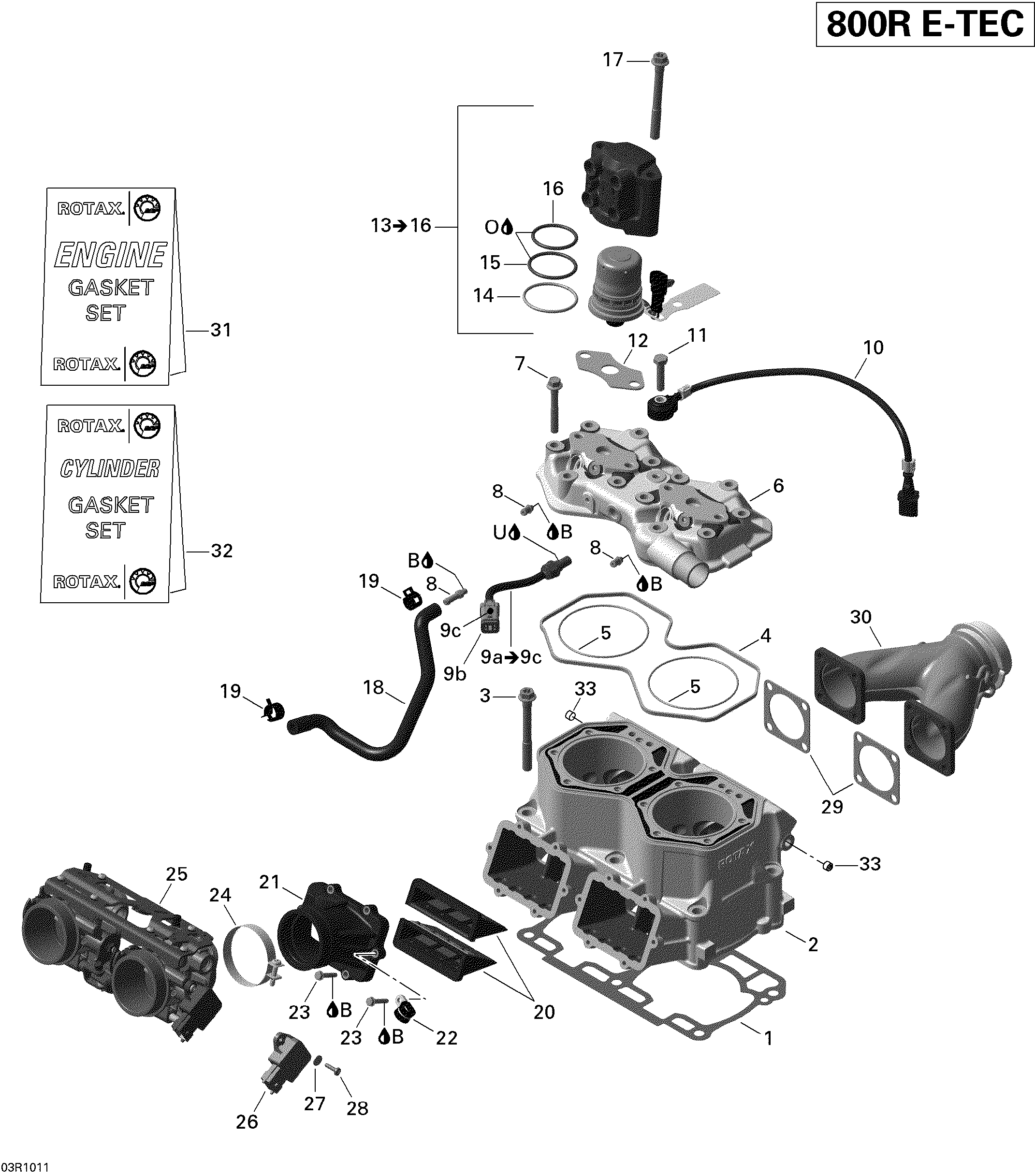

01- Cylinder And Injection System для BRP Ski-Doo MX Z X 800R ETEC - 2010
-
№АртикулНазвание
-
1420430082 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420430080 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420430081 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420430083 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
1420430084 Double Gasket 0.9 mmDouble Gasket 0.9 mm
-
2420623249 CylinderCylinder
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4420430040 O-RingO-Ring
-
5420931410 O-RingO-Ring
-
6420623300 Head Cylinder CoverHead Cylinder Cover
-
7420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
8420924720 Hose NippleHose Nipple
-
9a515176398 Temperature Sensor. Includes 9a to 9cTemperature Sensor. Includes 9a to 9c
-
9b515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
9c278000632 Female TerminalFemale Terminal
-
10270000484 Noise SensorNoise Sensor
-
11207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
12420430930 GasketGasket
-
13512060540 Fuel Injector Ass'y. Includes 13 to 16Fuel Injector Ass'y. Includes 13 to 16
-
14415129497 Crush RingCrush Ring
-
15415129498 O-RingO-Ring
-
16415129499 O-RingO-Ring
-
17420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
18420460865 Molded HoseMolded Hose
-
19420853511 ClampClamp
-
20420924792 Reed Valve Ass'yReed Valve Ass'y
-
21420867333 Intake SocketIntake Socket
-
22420851250 ClampClamp
-
23420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
24420851815 ClampClamp
-
25420889199 Throttle BodyThrottle Body
-
26270000251 Position SensorPosition Sensor
-
27234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
28208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
29420430482 GasketGasket
-
30420673373 Exhaust ManifoldExhaust Manifold
-
31420892473 Gasket Set, EngineGasket Set, Engine
-
32420892478 Gasket Set, CylinderGasket Set, Cylinder
-
33415129628 Socket Set Screw M10 x 1.25 x 10 mmSocket Set Screw M10 x 1.25 x 10 mm
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
U420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
