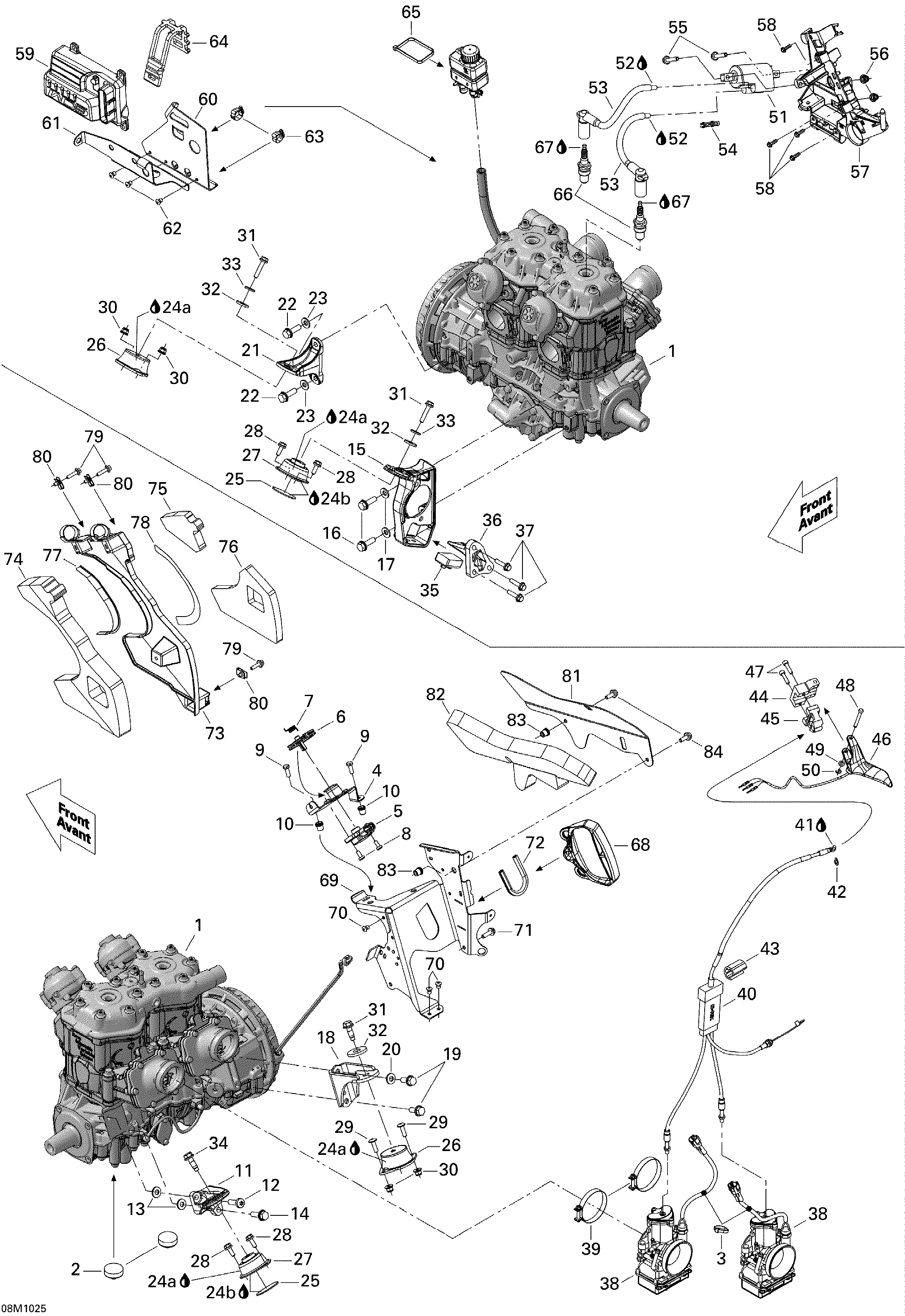

01- Engine And Engine Support для BRP Ski-Doo MX Z X 600RS - 2010

  • №
    Артикул
    Название
  • 1
    400604043 Engine 593 RS
    Engine 593 RS
  • 2
    512059738 Stopper
    Stopper
  • 3
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 4
    512060336 TPS Support
    TPS Support
  • 5
    404162079 Sensor Ass'y
    Sensor Ass'y
  • 6
    512060335 Cap Cam
    Cap Cam
  • 7
    512060351 Cam Spring
    Cam Spring
  • 8
    208651241 Phillips Screw M5 X 12
    Phillips Screw M5 X 12
  • 9
    207361644 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 10
    415107300 Insert
    Insert
  • 11
    512060173 Rear PTO Support
    Rear PTO Support
  • 12
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 13
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 14
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 15
    512060560 Front Support, PTO
    Front Support, PTO
  • 16
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 17
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 18
    512060568 Rear Engine Support MAG
    Rear Engine Support MAG
  • 19
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 20
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 21
    512060108 Front MAG Support
    Front MAG Support
  • 22
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 23
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 24a
    219700417 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 24b
    293800021 Loctite 495, 3 G
    Loctite 495, 3 G
  • 25
    512060410 Rubber Washer
    Rubber Washer
  • 26
    512060360 Rubber Mount
    Rubber Mount
  • 27
    512060385 Rubber Mount
    Rubber Mount
  • 28
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 29
    250000335 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 30
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 31
    207583086 Hex. Flange Screw M8 X 30, Scotch Grip
    Hex. Flange Screw M8 X 30, Scotch Grip
  • 32
    503183200 Washer, Yellow
    Washer, Yellow
  • 33
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 34
    250000361 Hex. Screw M8
    Hex. Screw M8
  • 35
    512060488 Stopper
    Stopper
  • 36
    512060489 Stopper Support
    Stopper Support
  • 37
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 38
    403138811 Carburator TMX38-71
    Carburator TMX38-71
  • 39
    512059835 Gemi Clamp
    Gemi Clamp
  • 40
    512060550 Throttle Cable
    Throttle Cable
  • 41
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 42
    414274500 Circlip
    Circlip
  • 43
    512060313 Protector
    Protector
  • 44
    512059538 Upper Housing
    Upper Housing
  • 45
    512059537 Lower Housing
    Lower Housing
  • 46
    512060431 Handle Ass'y
    Handle Ass'y
  • 47
    205052544 Socket Screw M5 X 25
    Socket Screw M5 X 25
  • 48
    414438700 Lever Pin
    Lever Pin
  • 49
    234051600 Flat Washer M5
    Flat Washer M5
  • 50
    293370050 Circlip
    Circlip
  • 51
    512059968 Ignition Coil
    Ignition Coil
  • 52
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 53
    512060291 Cable Ass'y
    Cable Ass'y
  • 54
    410914600 Plastic Clip, Spark Plug Wire
    Plastic Clip, Spark Plug Wire
  • 55
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 56
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 57
    512060350 Coils Support
    Coils Support
  • 58
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 59
    512060589 Calibrated Module
    Calibrated Module
  • 60
    512060337 ECM Support
    ECM Support
  • 61
    512060379 Tank Support
    Tank Support
  • 62
    390909200 Avex Rivet
    Avex Rivet
  • 63
    293650172 Tridon Gear Clamp
    Tridon Gear Clamp
  • 64
    570069700 Latch
    Latch
  • 65
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 66
    512059552 Spark Plug, NGK BR9ECS-5
    Spark Plug, NGK BR9ECS-5
  • 67
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 68
    512060136 Starter Grip
    Starter Grip
  • 69
    512060491 Grip Support
    Grip Support
  • 70
    390909200 Avex Rivet
    Avex Rivet
  • 71
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 72
    414506600 Trim
    Trim
  • 73
    512060339 Noise Shield
    Noise Shield
  • 74
    512060343 Interior Noise Foam
    Interior Noise Foam
  • 75
    512060344 Upper Exterior Noise Foam
    Upper Exterior Noise Foam
  • 76
    512060362 Lower Exterior Noise Foam
    Lower Exterior Noise Foam
  • 77
    512060574 Heat Shield
    Heat Shield
  • 78
    512060575 Heat Shield
    Heat Shield
  • 79
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 80
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 81
    512060492 Rear Noise Shield
    Rear Noise Shield
  • 82
    512060381 Rear Noise Foam
    Rear Noise Foam
  • 83
    415107300 Insert
    Insert
  • 84
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
