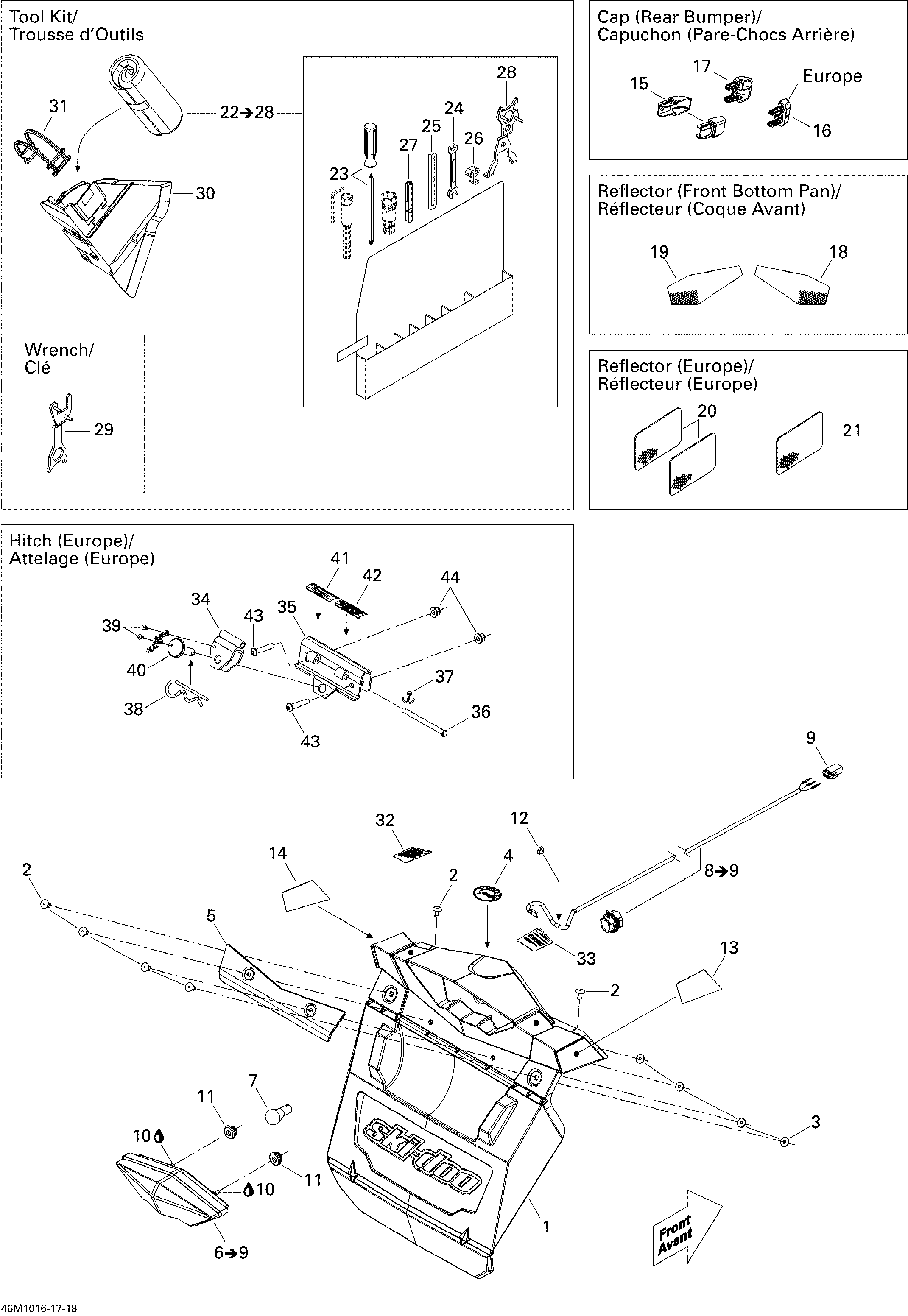

09- Utilities X для BRP Ski-Doo MX Z X 1200 - 2010

  • №
    Артикул
    Название
  • 1
    520000702 Snow Guard. Black-Black Model
    Snow Guard. Black-Black Model
  • 1
    520000704 Snow Guard. White-White Model
    Snow Guard. White-White Model
  • 2
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3
    517124300 Washer
    Washer
  • 4
    219902544 BRP Logo, 48 mm
    BRP Logo, 48 mm
  • 5
    520000751 Reinforcement
    Reinforcement
  • 6
    520000587 Rear Light. Includes 6 to 9
    Rear Light. Includes 6 to 9
  • 7
    520000758 Bulb
    Bulb
  • 8
    520000677 Wiring Harness. Includes 8 to 9
    Wiring Harness. Includes 8 to 9
  • 9
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 10
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 11
    705003666 Rubber Grommet
    Rubber Grommet
  • 12
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 13
    520000716 RH Rear Reflector
    RH Rear Reflector
  • 14
    520000717 LH Rear Reflector
    LH Rear Reflector
  • 15
    520000567 Cap. Black-Black Model
    Cap. Black-Black Model
  • 15
    520000840 Cap. White-White Model
    Cap. White-White Model
  • 18
    520000759 RH Front Reflector
    RH Front Reflector
  • 19
    520000760 LH Front Reflector
    LH Front Reflector
  • 22
    529000050 Tool Kit. Includes 22 to 28
    Tool Kit. Includes 22 to 28
  • 23
    529000004 Screw Driver
    Screw Driver
  • 24
    529000002 Fork Wrench 10/13 mm
    Fork Wrench 10/13 mm
  • 25
    412500200 Starter Rope, Meter
    Starter Rope, Meter
  • 26
    529019400 Starter Grip
    Starter Grip
  • 27
    529035501 Spacing Tool
    Spacing Tool
  • 28
    520000956 Wrench Suspension
    Wrench Suspension
  • 29
    520000721 Wrench
    Wrench
  • 30
    520000720 Tool Kit Rack
    Tool Kit Rack
  • 31
    520000528 Latch
    Latch
  • 32
    520000695 Warning Decal, Security
    Warning Decal, Security
  • 33
    520000697 Warning Decal, Load
    Warning Decal, Load
