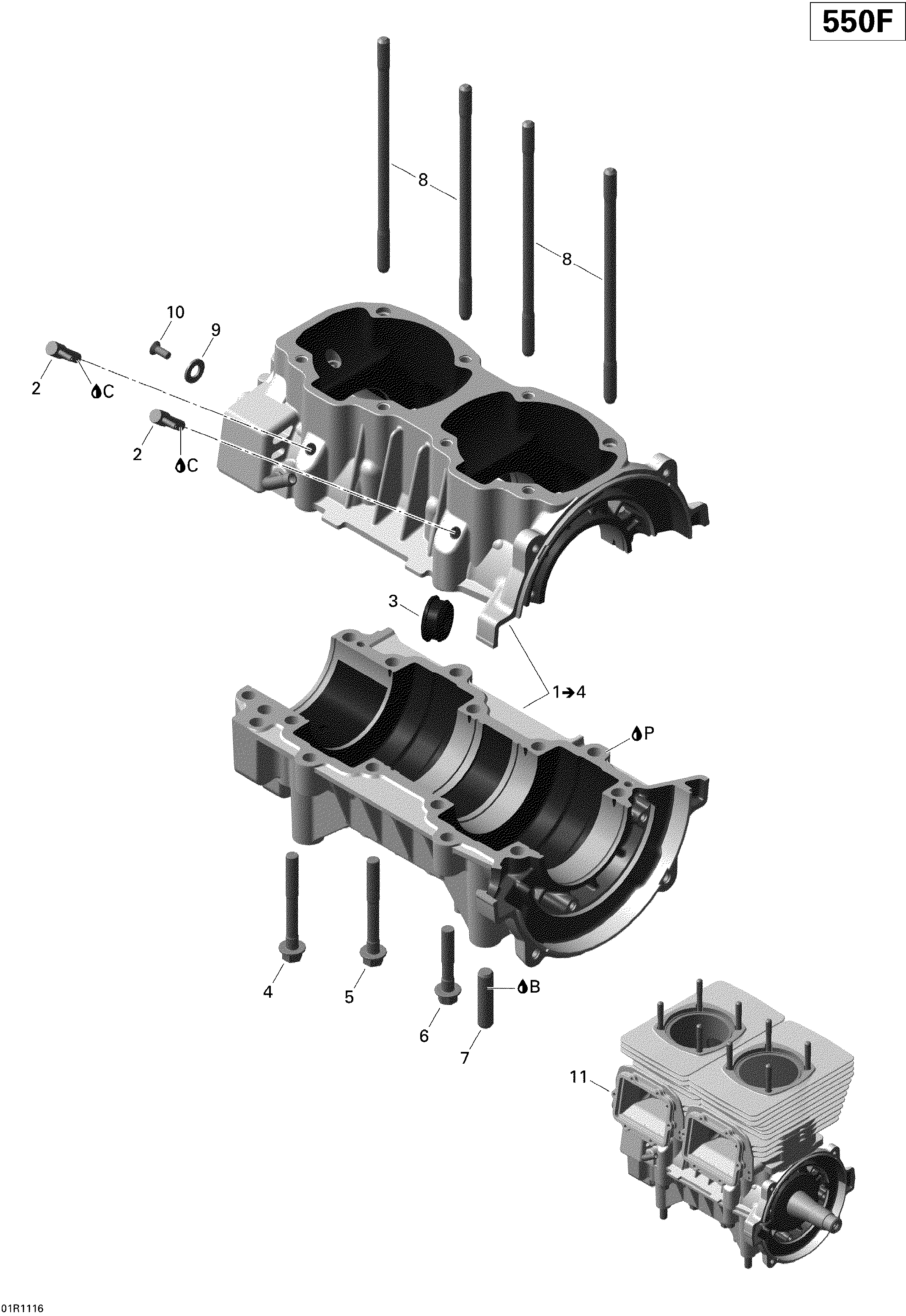

01- Crankcase для BRP Ski-Doo MX Z TNT 550F - 2010

  • №
    Артикул
    Название
  • 1
    420890237 Crankcase Ass'y. Includes 1 to 4
    Crankcase Ass'y. Includes 1 to 4
  • 2
    420956510 Check Valve
    Check Valve
  • 3
    420860962 Cable Grommet
    Cable Grommet
  • 4
    420841306 Hex. Collar Screw M8 X 65
    Hex. Collar Screw M8 X 65
  • 5
    420640951 Hex. Screw M8 X 68.5
    Hex. Screw M8 X 68.5
  • 6
    420640431 Hex. Collar Screw M8 X 45
    Hex. Collar Screw M8 X 45
  • 7
    420840266 Stud M10 X 45
    Stud M10 X 45
  • 8
    420840556 Stud M8 X 173.5
    Stud M8 X 173.5
  • 9
    420250311 Flat Washer 8.4 mm
    Flat Washer 8.4 mm
  • 10
    420640896 Flat Head Screw
    Flat Head Screw
  • 11
    420055208 Short Block 552 XP
    Short Block 552 XP
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • C
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • P
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
