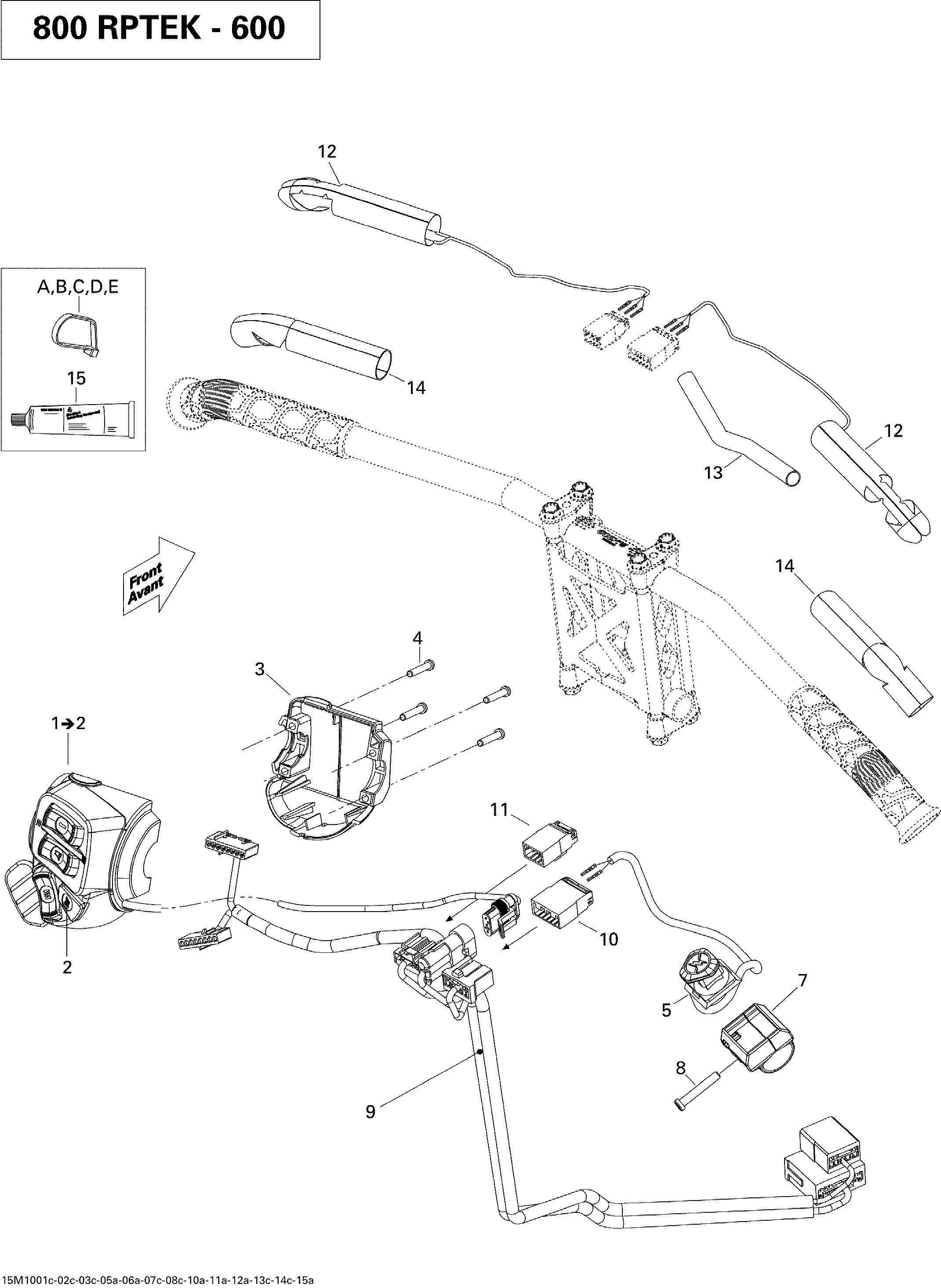

10- Steering Wiring Harness 800R PTEK для BRP Ski-Doo MX Z Adrenaline 800R PTEK - 2010

  • №
    Артикул
    Название
  • 1
    515175479 LH Switch Housing. Includes 1 to 2
    LH Switch Housing. Includes 1 to 2
  • 2
    515176088 Start/RER Button
    Start/RER Button
  • 3
    515175926 Housing Switch Plate
    Housing Switch Plate
  • 4
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 5
    515176725 Kill Switch
    Kill Switch
  • 7
    515176825 Kill Switch Support
    Kill Switch Support
  • 8
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 9
    515176567 Steering Wiring Harness
    Steering Wiring Harness
  • 10
    515175817 Male Terminal Housing, 8 Circuits
    Male Terminal Housing, 8 Circuits
  • 11
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 12
    506152371 Heating Element
    Heating Element
  • 13
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 14
    506152360 Insulant
    Insulant
  • 15
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • A
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • B
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • C
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • D
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • E
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
