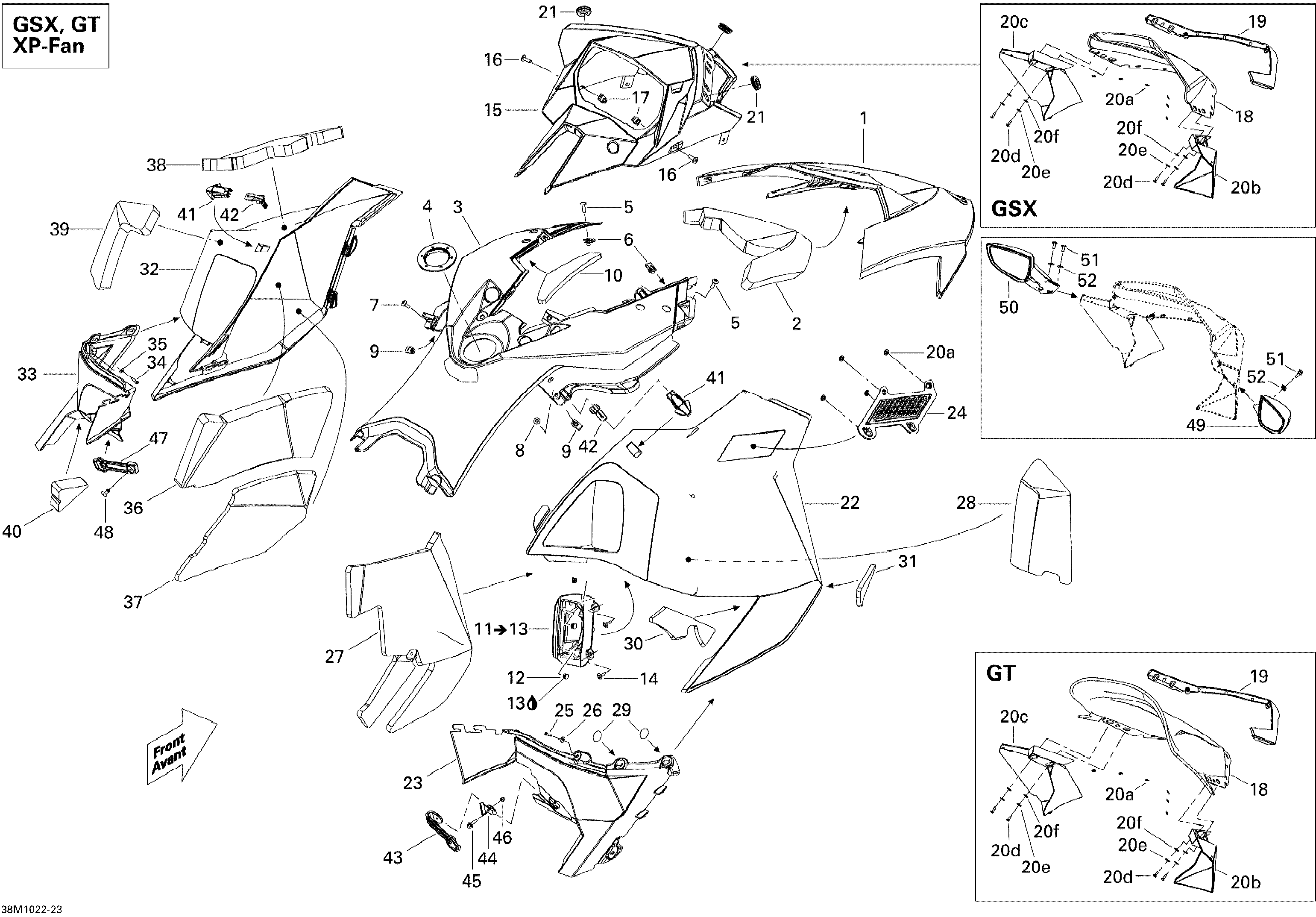

09- Hood для BRP Ski-Doo GSX Sport 550F - 2010

  • №
    Артикул
    Название
  • 1
    517304530 Deep Black Hood
    Deep Black Hood
  • 2
    517303990 Hood Foam
    Hood Foam
  • 3
    517304496 Deep Black Console
    Deep Black Console
  • 4
    517304518 Console Nut
    Console Nut
  • 5
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 6
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 7
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 8
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 9
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 10
    517304515 Console Foam
    Console Foam
  • 11
    517304322 Black RH Console. Includes 11 to 13
    Black RH Console. Includes 11 to 13
  • 12
    275500241 Black Cap
    Black Cap
  • 13
    413408300 Loctite, Black Max, 3 ml
    Loctite, Black Max, 3 ml
  • 14
    250000113 Screw M4 X 16, Type K-40
    Screw M4 X 16, Type K-40
  • 15
    517303948 Indicator Support
    Indicator Support
  • 16
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 17
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 18
    860200478 Windsheld Kit 375. GSX
    Windsheld Kit 375. GSX
  • 18
    517304395 Windsheld 375mm
    Windsheld 375mm
  • 19
    517303607 Windshield Support
    Windshield Support
  • 20a
    732610072 Push Nut
    Push Nut
  • 20b
    517303791 RH Air Deflector
    RH Air Deflector
  • 20c
    517303792 LH Air Deflector
    LH Air Deflector
  • 20d
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 20e
    250200025 Washer M5
    Washer M5
  • 20f
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 21
    517303756 Grommet
    Grommet
  • 22
    517304029 Deep Black RH Panel
    Deep Black RH Panel
  • 23
    517303671 Deep Black RH Moulding Panel
    Deep Black RH Moulding Panel
  • 24
    517303622 Grill
    Grill
  • 25
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 26
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 27
    517304280 RH Center Foam
    RH Center Foam
  • 28
    517303982 RH Panel Rear Foam
    RH Panel Rear Foam
  • 29
    518325560 Adhesive Patch
    Adhesive Patch
  • 30
    517304513 RH Front panel Foam
    RH Front panel Foam
  • 31
    517304514 RH Lower Foam
    RH Lower Foam
  • 32
    517304030 Deep Black LH Panel
    Deep Black LH Panel
  • 33
    517303673 Deep Black LH Moulding Panel
    Deep Black LH Moulding Panel
  • 34
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 35
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 36
    517303983 LH Panel Center Foam
    LH Panel Center Foam
  • 37
    517303984 LH Panel Lower Foam
    LH Panel Lower Foam
  • 38
    517303985 LH Panel Upper Foam
    LH Panel Upper Foam
  • 39
    517303986 LH Panel Rear Foam
    LH Panel Rear Foam
  • 40
    517303987 Foam
    Foam
  • 41
    517304075 End Piece Latch
    End Piece Latch
  • 42
    517303981 Panel Latch
    Panel Latch
  • 43
    517303612 RH Panel Latch
    RH Panel Latch
  • 44
    517304221 Latch Support
    Latch Support
  • 45
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 46
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 47
    517303808 LH Panel Latch
    LH Panel Latch
  • 48
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 49
    517304145 RH Mirror Ass'y
    RH Mirror Ass'y
  • 50
    517304146 LH Mirror Ass'y
    LH Mirror Ass'y
  • 51
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 52
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
