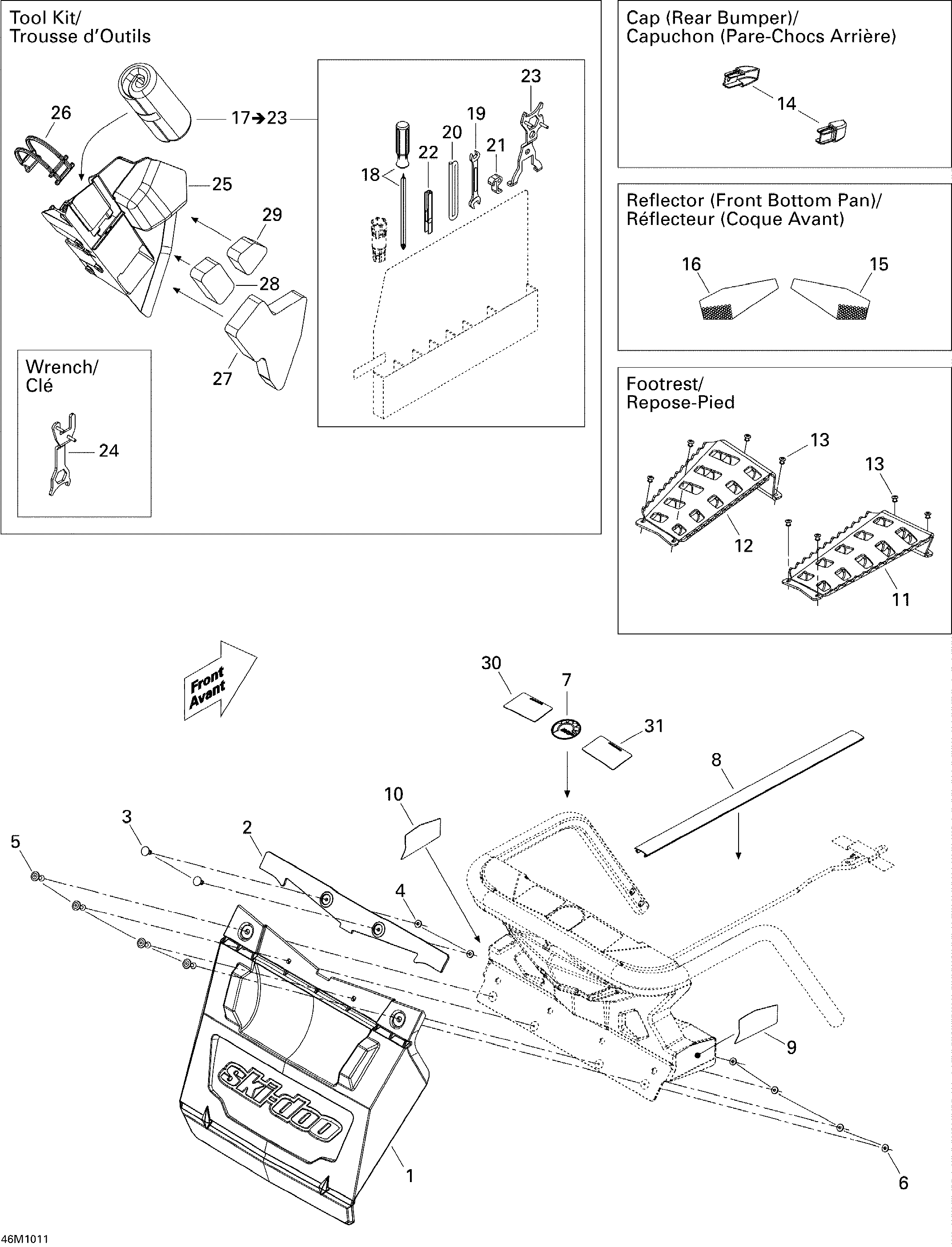

09- Utilities для BRP Ski-Doo Grand-Touring Sport 600 - 2010
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2520000953 Esthetic PlateEsthetic Plate
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517124300 WasherWasher
-
7219902544 BRP Logo, 48 mmBRP Logo, 48 mm
-
8520000829 Radiator TrimRadiator Trim
-
9520000881 RH ReflectorRH Reflector
-
10520000880 LH ReflectorLH Reflector
-
11520000887 RH FootrestRH Footrest
-
12520000888 LH FootrestLH Footrest
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14520000567 CapCap
-
15520000718 RH Front ReflectorRH Front Reflector
-
16520000719 LH Front ReflectorLH Front Reflector
-
17529000045 Tool Kit. Includes 17 to 23Tool Kit. Includes 17 to 23
-
18529000004 Screw DriverScrew Driver
-
19529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
20412500200 Starter Rope, MeterStarter Rope, Meter
-
21529019400 Starter GripStarter Grip
-
22529035501 Spacing ToolSpacing Tool
-
23520000956 Wrench SuspensionWrench Suspension
-
24520000721 WrenchWrench
-
25520000842 Tool Kit RackTool Kit Rack
-
26520000528 LatchLatch
-
27520000743 FoamFoam
-
28520000753 FoamFoam
-
29520000754 FoamFoam
-
30516003934 Warning Decal-Security-EnglishWarning Decal-Security-English
-
31516004298 Warning Decal-Security-EnglishWarning Decal-Security-English
