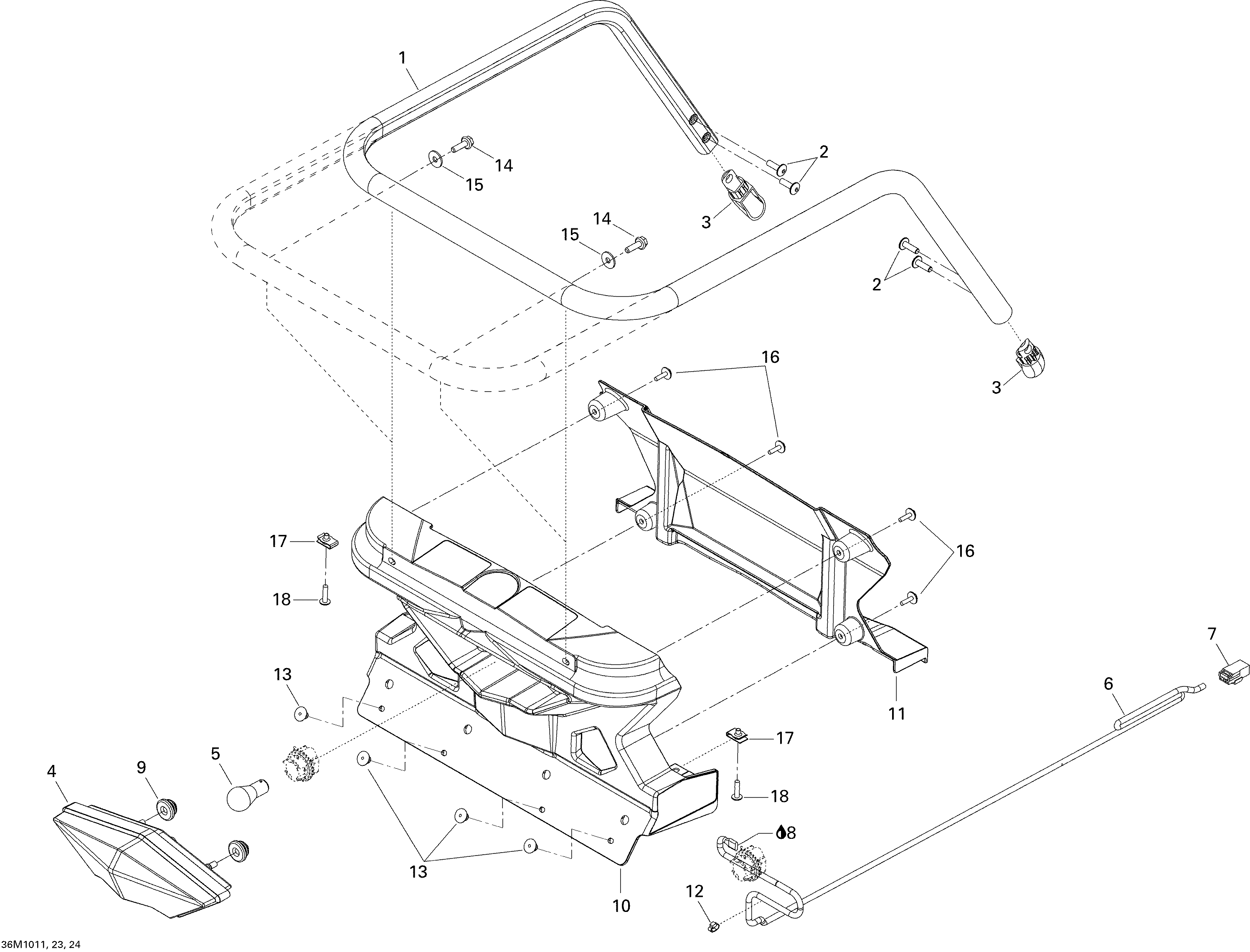

09- Luggage Rack для BRP Ski-Doo Grand-Touring Sport 550F - 2010
-
№АртикулНазвание
-
1511000707 Luggage RackLuggage Rack
-
2250000420 Socket Screw M6x20Socket Screw M6x20
-
3520000899 CapCap
-
4520000679 Rear LightRear Light
-
5520000758 BulbBulb
-
6520000680 Wiring HarnessWiring Harness
-
7515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9705003666 Rubber GrommetRubber Grommet
-
10511000625 Rear Light SupportRear Light Support
-
11511000701 Cover SupportCover Support
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15391302000 Flat WasherFlat Washer
-
16250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
17250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
