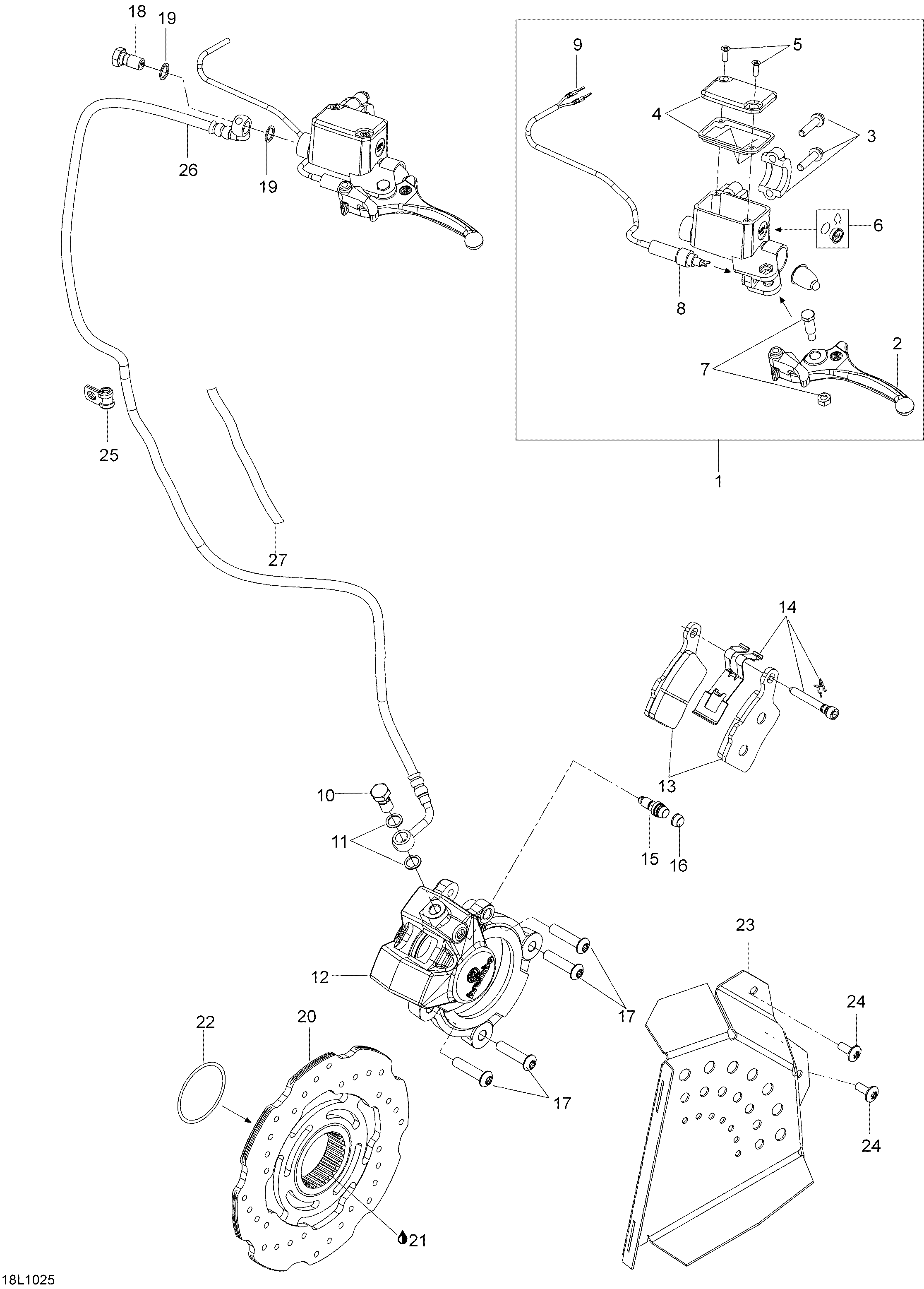

06- Hydraulic Brakes для BRP Ski-Doo Expedition TUV 1200 REV-XU - 2010
-
№АртикулНазвание
-
1507032432 Master Cylinder Ass'y. Includes 1 to 9Master Cylinder Ass'y. Includes 1 to 9
-
2507032476 LeverLever
-
3507032477 Clamp And Screw KitClamp And Screw Kit
-
4507032478 Reservoir Ass'y. Includes 5 to 6Reservoir Ass'y. Includes 5 to 6
-
5415129356 Screw M4 X 20Screw M4 X 20
-
7415030000 Pin Ass'yPin Ass'y
-
8507032479 MicroswitchMicroswitch
-
10414920500 Banjo BoltBanjo Bolt
-
11414920600 WasherWasher
-
12507032501 Brake Caliper Ass'y. Includes 12 to 16Brake Caliper Ass'y. Includes 12 to 16
-
13507032489 Brake Pads KitBrake Pads Kit
-
14507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
15507032475 BleederBleeder
-
16414989700 BootBoot
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20507032488 DiskDisk
-
21293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
22293300134 O-RingO-Ring
-
23507032508 Disk ProtectorDisk Protector
-
24250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
25705600459 ClampClamp
-
26507032494 Brake HoseBrake Hose
-
27409901800 Tubing 13 mmTubing 13 mm
