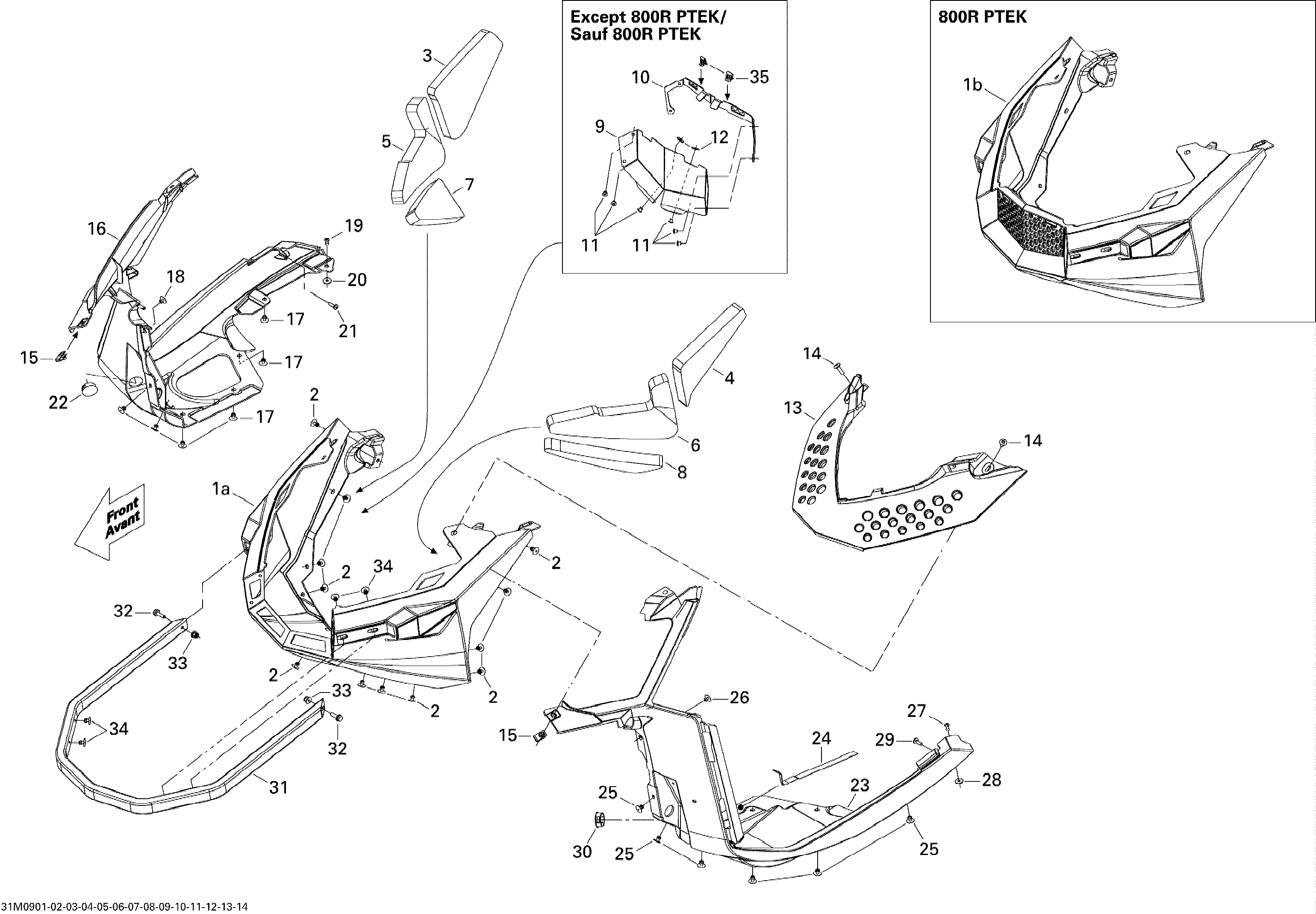

09- Bottom Pan 600HO для BRP Ski-Doo Summit X 600 H.O. E-TEC - 2009

  • №
    Артикул
    Название
  • 1a
    502006941 Front Bottom Pan. 600HO ETEC
    Front Bottom Pan. 600HO ETEC
  • 2
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3
    502006829 RH Foam Upper
    RH Foam Upper
  • 4
    502006830 LH Foam Upper
    LH Foam Upper
  • 5
    502006906 RH Middle Foam
    RH Middle Foam
  • 6
    502006907 LH Middle Foam
    LH Middle Foam
  • 7
    502006908 RH Lower Foam
    RH Lower Foam
  • 8
    502006909 LH Lower Foam
    LH Lower Foam
  • 9
    502006942 Bottom Pan Grill. 600HO ETEC
    Bottom Pan Grill. 600HO ETEC
  • 10
    502006943 Grill Bracket. 600HO ETEC
    Grill Bracket. 600HO ETEC
  • 11
    293150102 Rivet 3/16. 600HO ETEC
    Rivet 3/16. 600HO ETEC
  • 12
    517124300 Washer. 600HO ETEC
    Washer. 600HO ETEC
  • 13
    502006967 Bottom Pan Cap. Black-Black Model
    Bottom Pan Cap. Black-Black Model
  • 13
    502006973 Bottom Pan Cap. White-Blue Model
    Bottom Pan Cap. White-Blue Model
  • 14
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 15
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 16
    502006831 RH Bottom Pan
    RH Bottom Pan
  • 17
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    293150103 Pop Rivet
    Pop Rivet
  • 19
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 20
    517124300 Washer
    Washer
  • 21
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 22
    414916600 Nylon Cap
    Nylon Cap
  • 23
    502006832 LH Bottom Pan
    LH Bottom Pan
  • 24
    293250087 Gasket
    Gasket
  • 25
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 26
    293150103 Pop Rivet
    Pop Rivet
  • 27
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 28
    517124300 Washer
    Washer
  • 29
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 30
    414916600 Nylon Cap
    Nylon Cap
  • 31
    502006833 Front Bumper
    Front Bumper
  • 32
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 33
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 34
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 35
    517302785 Clip. 600HO ETEC
    Clip. 600HO ETEC
