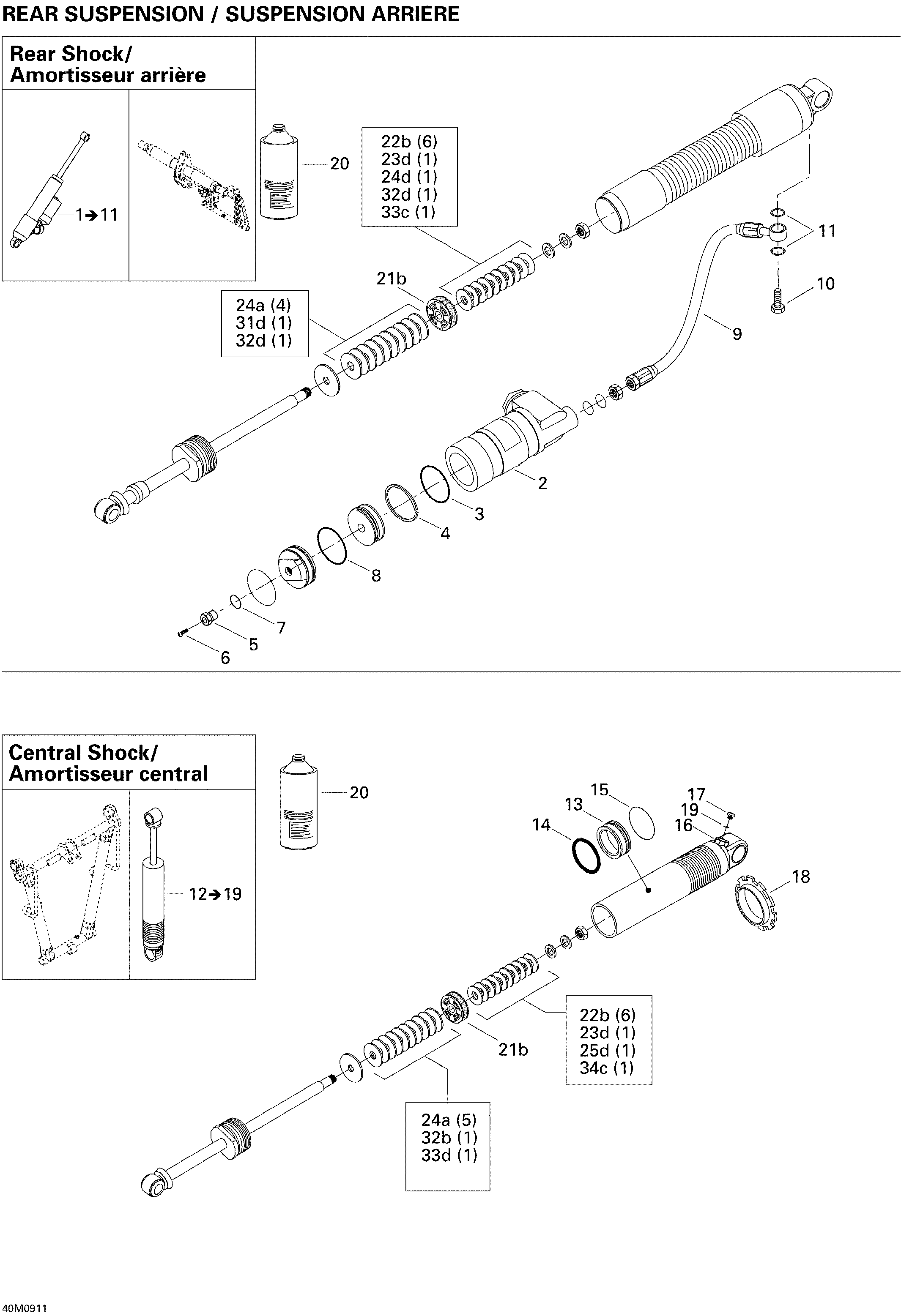

08- Take Apart Shock, Rear для BRP Ski-Doo Summit HillClimb Edition - 2009

  • №
    Артикул
    Название
  • 1
    503192069 Rear Shock. Includes 1 to 11
    Rear Shock. Includes 1 to 11
  • 2
    415128594 Reservoir
    Reservoir
  • 3
    415093807 O-Ring
    O-Ring
  • 4
    415093806 Piston Ring
    Piston Ring
  • 5
    505070398 Air Valve Ring
    Air Valve Ring
  • 6
    505070399 Screw
    Screw
  • 7
    505070400 O-Ring
    O-Ring
  • 8
    415093804 O-Ring
    O-Ring
  • 9
    415128593 Hose Ass'y
    Hose Ass'y
  • 10
    415093810 Bolt
    Bolt
  • 11
    415038700 O-Ring
    O-Ring
  • 12
    503191532 Center Shock. Includes 12 to 19
    Center Shock. Includes 12 to 19
  • 13
    503189309 Free Piston
    Free Piston
  • 14
    414888312 O-Ring
    O-Ring
  • 15
    503189308 Piston Ring
    Piston Ring
  • 16
    505070398 Air Valve Ring
    Air Valve Ring
  • 17
    505070399 Screw
    Screw
  • 18
    414888316 Spring Collar
    Spring Collar
  • 19
    505070400 O-Ring
    O-Ring
  • 20
    293600035 Shock Oil, 1 Liter
    Shock Oil, 1 Liter
  • 21c
    414888305 Piston (2 X 0.3-2) (C36)
    Piston (2 X 0.3-2) (C36)
  • 21g
    414888307 Piston (2 X 0.3-6) (C36)
    Piston (2 X 0.3-6) (C36)
  • 22a
    415039100 Leaf Valve O30 X 0.254 (C36)
    Leaf Valve O30 X 0.254 (C36)
  • 22b
    414888318 Leaf Valve O30 X 0.203 (C36)
    Leaf Valve O30 X 0.203 (C36)
  • 22c
    414888319 Leaf Valve O30 X 0.152 (C36)
    Leaf Valve O30 X 0.152 (C36)
  • 24a
    415039000 Leaf Valve O26 X 0.254 (C36)
    Leaf Valve O26 X 0.254 (C36)
  • 24b
    414888322 Leaf Valve O26 X 0.203 (C36)
    Leaf Valve O26 X 0.203 (C36)
  • 27D
    414888340 Leaf Valve O21 X 0.114 (C36)
    Leaf Valve O21 X 0.114 (C36)
  • 28b
    414888326 Leaf Valve O20 X 0.203 (C36)
    Leaf Valve O20 X 0.203 (C36)
  • 28c
    414888327 Leaf Valve O20 X 0.152 (C36)
    Leaf Valve O20 X 0.152 (C36)
  • 30b
    414888329 Leaf Valve O18 X 0.203 (C36)
    Leaf Valve O18 X 0.203 (C36)
  • 30c
    414888330 Leaf Valve O18 X 0.152 (C36)
    Leaf Valve O18 X 0.152 (C36)
  • 32a
    414888331 Leaf Valve O16 X 0.254 (C36)
    Leaf Valve O16 X 0.254 (C36)
  • 32b
    414888332 Leaf Valve O16 X 0.203 (C36)
    Leaf Valve O16 X 0.203 (C36)
  • 32c
    414888333 Leaf Valve O16 X 0.152 (C36)
    Leaf Valve O16 X 0.152 (C36)
  • 32d
    415038900 Leaf Valve O16 X 0.114 (C36)
    Leaf Valve O16 X 0.114 (C36)
  • 33b
    414888335 Leaf Valve O15 X 0.203 (C36)
    Leaf Valve O15 X 0.203 (C36)
  • 36a
    503189538 Leaf Valve O12 X 0.254 (C36)
    Leaf Valve O12 X 0.254 (C36)
  • 36b
    414888338 Leaf Valve O12 X 0.203 (C36)
    Leaf Valve O12 X 0.203 (C36)
  • 36d
    415038800 Leaf Valve O12 X 0.114 (C36)
    Leaf Valve O12 X 0.114 (C36)
