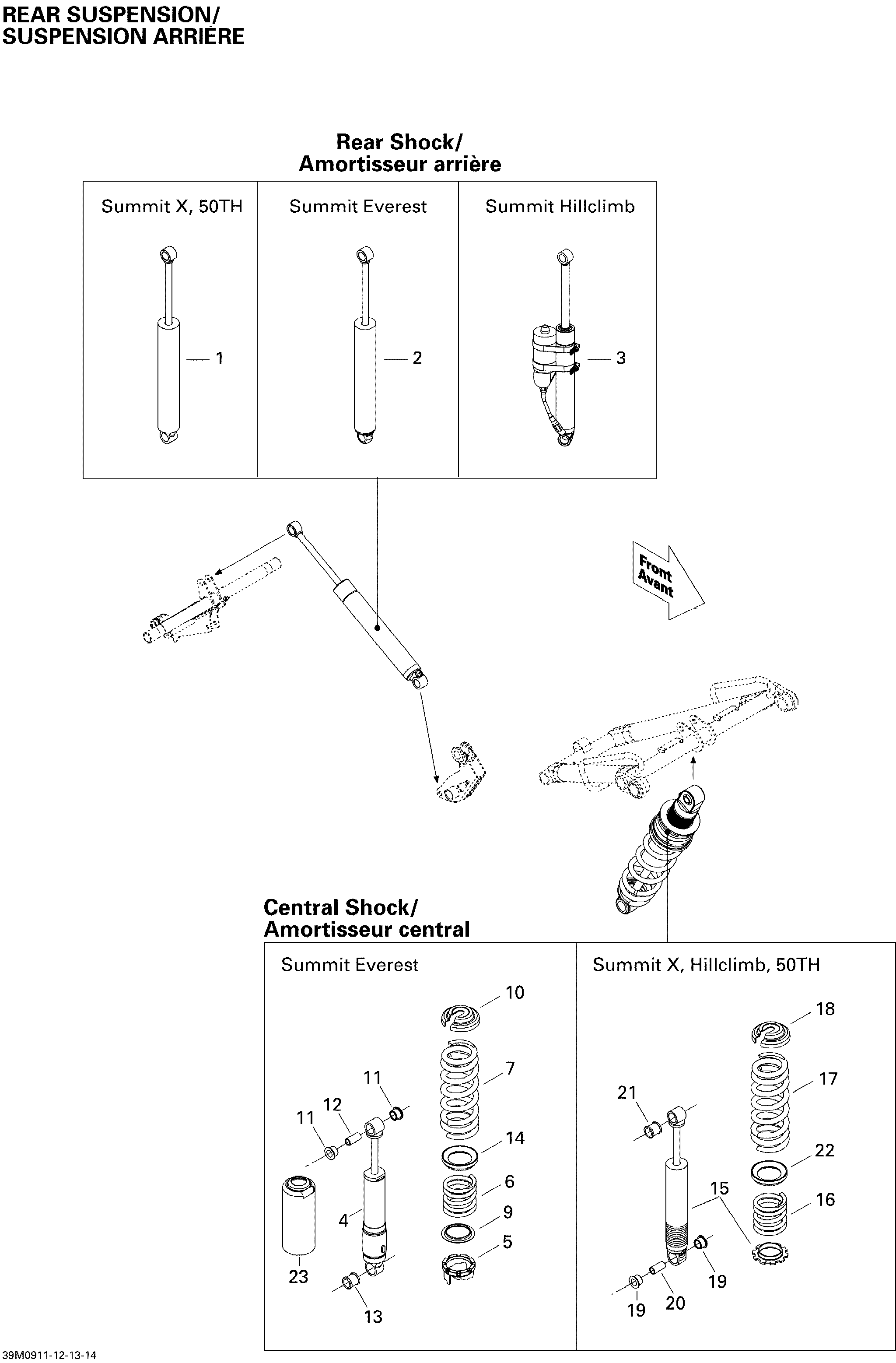

08- Rear Suspension Shocks 500SS для BRP Ski-Doo Summit Everest 500SS - 2009
-
№АртикулНазвание
-
2503191587 Rear ShockRear Shock
-
2503191979 Rear Shock. 500SS, AmericaRear Shock. 500SS, America
-
4503191593 Center Shock. 500SS, EuropeCenter Shock. 500SS, Europe
-
4503191592 Center Shock. 500SS, AmericaCenter Shock. 500SS, America
-
5503183700 Cam 45°. 500SS, AmericaCam 45°. 500SS, America
-
5505070150 Adjustment CamAdjustment Cam
-
6503191343 SpringSpring
-
7503191327 SpringSpring
-
9503191872 Spring GuideSpring Guide
-
9503187500 Spring Guide. 500SS, AmericaSpring Guide. 500SS, America
-
10503189912 Spring StopperSpring Stopper
-
10706200881 Spring Stopper. 500SS, AmericaSpring Stopper. 500SS, America
-
11503189117 CushionCushion
-
12503189282 BushingBushing
-
13503189271 CushionCushion
-
14503191281 Spring SpacerSpring Spacer
-
23503191126 Protector. 500SS, AmericaProtector. 500SS, America
