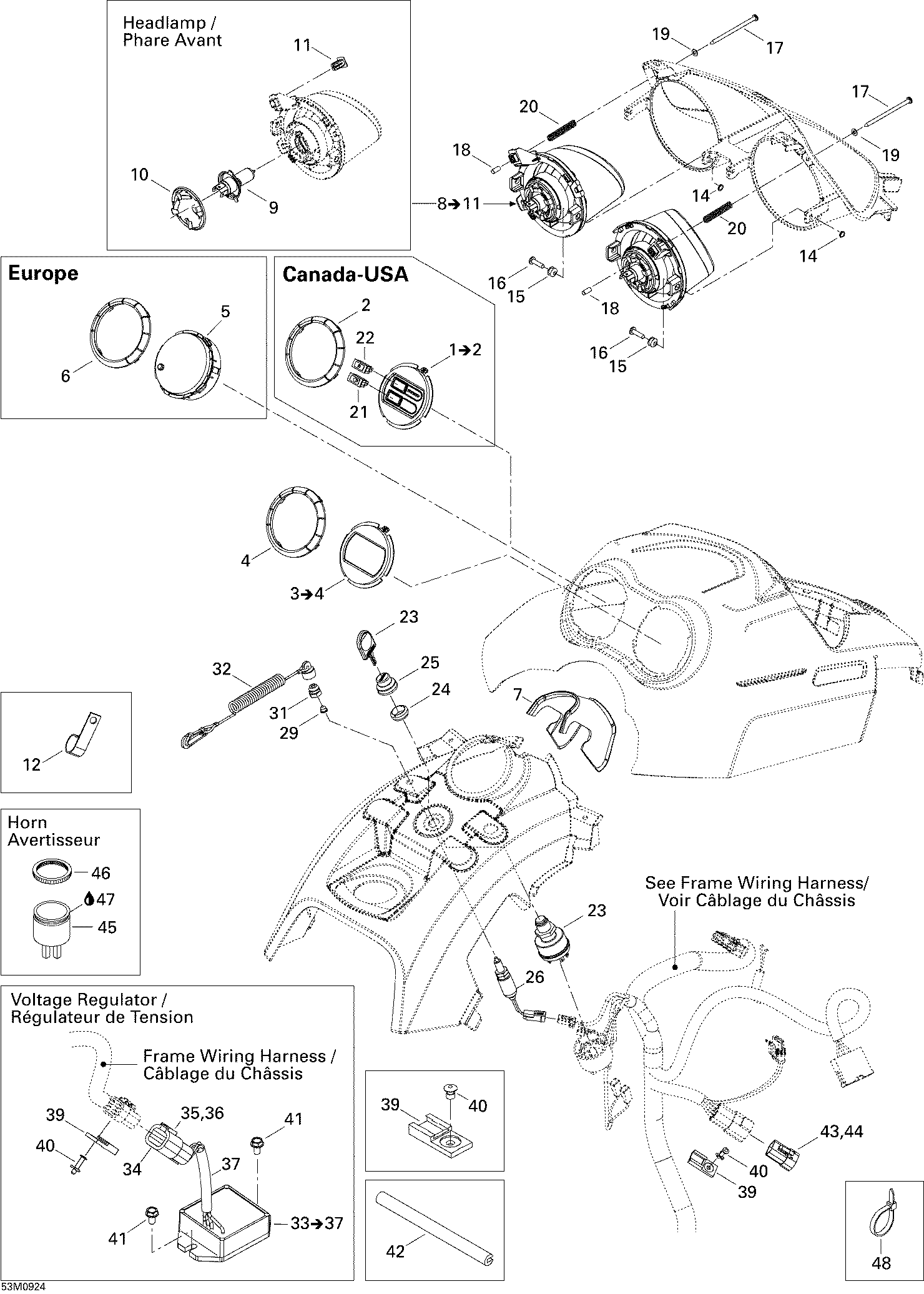

10- Electrical Accessories для BRP Ski-Doo Skandic Tundra - 2009
-
№АртикулНазвание
-
1515176411 Bottom Ring Ass'y. Includes 1 to 2, North AmericaBottom Ring Ass'y. Includes 1 to 2, North America
-
2515176242 Gauge RingGauge Ring
-
3515176373 Gauge Bottom Ring Ass'yGauge Bottom Ring Ass'y
-
4515176242 Gauge RingGauge Ring
-
5515176476 Speedometer. EuropeSpeedometer. Europe
-
6515176242 Gauge Ring. EuropeGauge Ring. Europe
-
7515176321 ProtectorProtector
-
8515176168 RH Headlamp Ass'y. Includes 8 to 11RH Headlamp Ass'y. Includes 8 to 11
-
8515176169 LH Headlamp Ass'y. Includes 8 to 11LH Headlamp Ass'y. Includes 8 to 11
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515176385 Bulb HolderBulb Holder
-
11515176339 Plastic InsertPlastic Insert
-
12515176457 ClampClamp
-
14389804300 Push NutPush Nut
-
15515176289 Headlamp BushingHeadlamp Bushing
-
16390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
17250000244 Phillips Screw #8 X 3''Phillips Screw #8 X 3''
-
18515176370 CapCap
-
19234051600 Flat Washer M5Flat Washer M5
-
20515176353 SpringSpring
-
21515175726 Pilot Lamp, Headlamp. North AmericaPilot Lamp, Headlamp. North America
-
22410113400 Pilot Lamp, Electric Reverse. North AmericaPilot Lamp, Electric Reverse. North America
-
23515176548 Ignition SwitchIgnition Switch
-
24410112100 Face NutFace Nut
-
25570013700 Switch BootSwitch Boot
-
26515175653 Brake SwitchBrake Switch
-
29570151100 Plunger CapPlunger Cap
-
31515145900 Switch NutSwitch Nut
-
32515176463 Cap Ass'yCap Ass'y
-
33515176189 Voltage Regulator. Includes 33 to 37Voltage Regulator. Includes 33 to 37
-
34278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
35515175568 Male TerminalMale Terminal
-
36278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
37710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
39515175917 ClipClip
-
40293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
41210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
42509000263 TrimTrim
-
43278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
44278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
45515176035 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
48293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
48293750009 Tie-Rap 173 mmTie-Rap 173 mm
