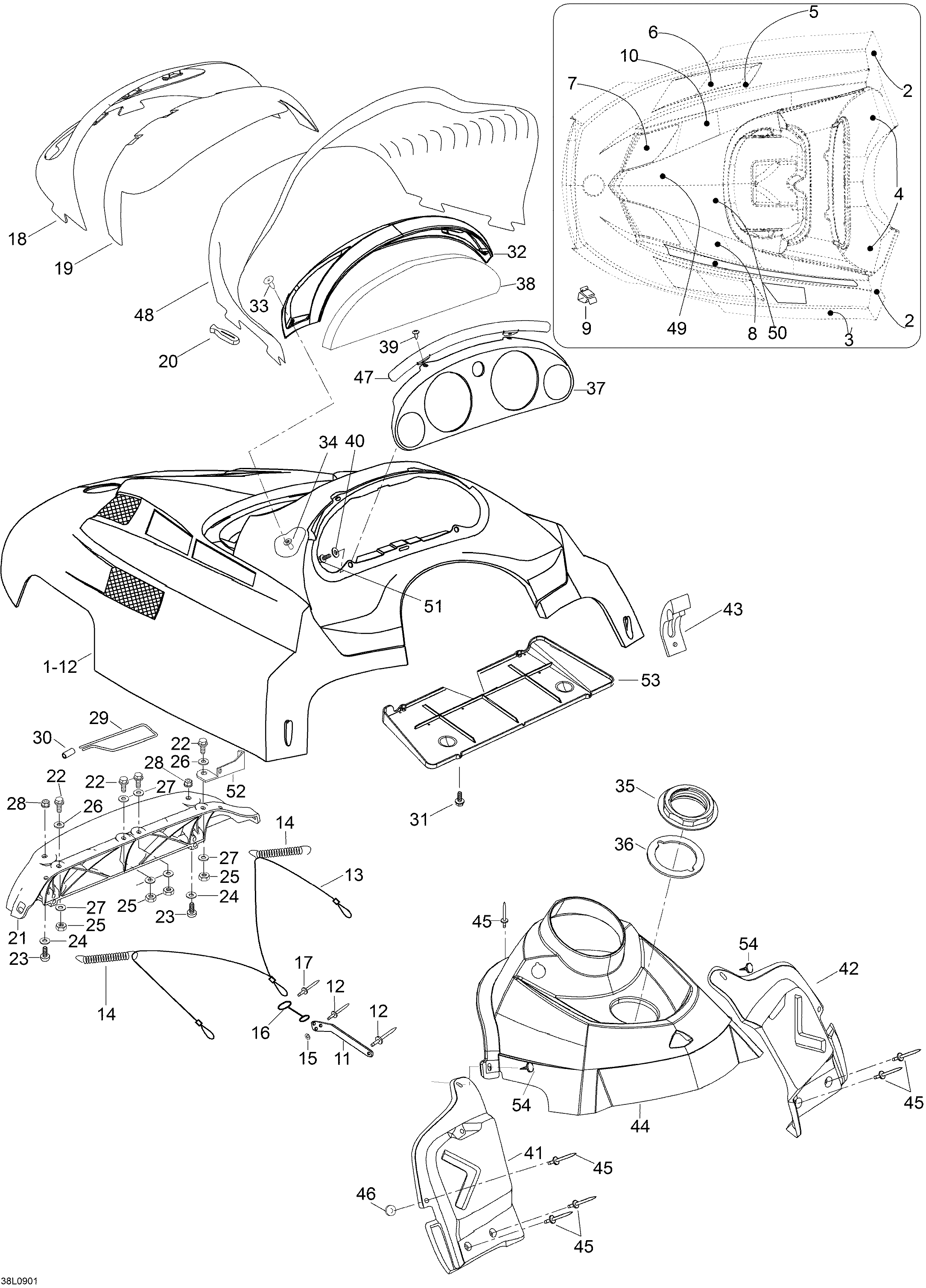

09- Hood And Console _38L0901 для BRP Ski-Doo Skandic SUV 600 Europe - 2009
-
№АртикулНазвание
-
1605155308 Hood. pre ass'y, Yellow. Includes 1 to 12Hood. pre ass'y, Yellow. Includes 1 to 12
-
2605350906 Isolation Rear L.H.Isolation Rear L.H.
-
2605350907 Isolation Rear R.H.Isolation Rear R.H.
-
3605350908 Isolation Rear FolioIsolation Rear Folio
-
4605350909 Isolation rear L.H. lowerIsolation rear L.H. lower
-
4605350910 Isolation rear L.H. upperIsolation rear L.H. upper
-
5605350922 Heat protectorHeat protector
-
6605350923 L.H. GrillL.H. Grill
-
6605355758 R.H. CoverR.H. Cover
-
7605350925 L.H. GrillL.H. Grill
-
7605350926 R.H. GrillR.H. Grill
-
8605350927 Grill, rearGrill, rear
-
9517302785 PidikejousiPidikejousi
-
10605350911 Isolation Rear Center L.HIsolation Rear Center L.H
-
11605452657 BracketBracket
-
1236002 RivetRivet
-
13605351372 Retainer cableRetainer cable
-
145442675 SpringSpring
-
1520001 Washer A4,3Washer A4,3
-
165442870 BracketBracket
-
1736097 RivetRivet
-
18517302158 Moulding Head LampMoulding Head Lamp
-
19517302003 Windshiel supportWindshiel support
-
20570023800 Windshield latchWindshield latch
-
21517302631 Hinge halfHinge half
-
2240030 Hex. screw screw M6 x 20Hex. screw screw M6 x 20
-
2340381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2420117 Washer 6mmWasher 6mm
-
2533010 Elastic stop nut M6Elastic stop nut M6
-
2620003 Washer A 6,4Washer A 6,4
-
2720009 Washer A 6,4Washer A 6,4
-
2833200 Elastic flanged nut M6Elastic flanged nut M6
-
29605454779 Lock pinLock pin
-
30605454780 BushingBushing
-
31243141630 Screw M4,8 x 16Screw M4,8 x 16
-
32605151832 CoverCover
-
3340061 Screw M4 x 18Screw M4 x 18
-
3428051 Well-nutWell-nut
-
35517302043 NutNut
-
365447116 GasketGasket
-
37605354134 Indicator supportIndicator support
-
38605352583 FilterFilter
-
3940888 Wronic-screw 4,2 x 19Wronic-screw 4,2 x 19
-
4020039 Washer 4mmWasher 4mm
-
41605251384 L.H. ConsoleL.H. Console
-
42605251922 R.H. ConsoleR.H. Console
-
43517302152 LatchLatch
-
44605251387 Center consoleCenter console
-
4536037 RivetRivet
-
4620008 Washer A5,3Washer A5,3
-
47605352586 Support plateSupport plate
-
48605152073 WindshieldWindshield
-
49605350912 Isolation center LHIsolation center LH
-
49605350913 Isolation center RHIsolation center RH
-
50605350922 Reflective sheet R.HReflective sheet R.H
