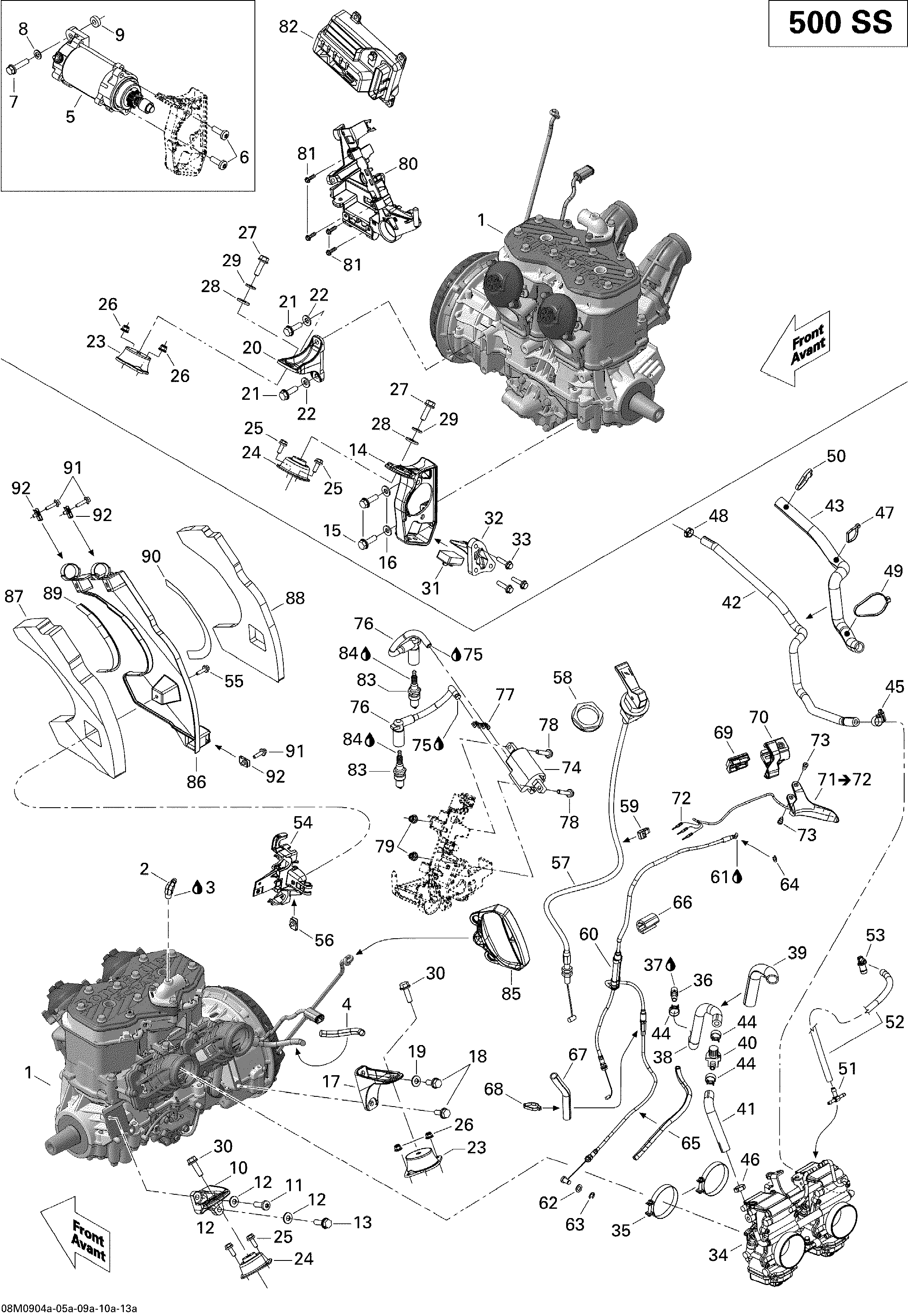

01- Engine And Engine Support 500SS для BRP Ski-Doo MX Z Trail - 2009
-
№АртикулНазвание
-
1400509784 Engine 593 SSEngine 593 SS
-
2293700045 Elbow Fitting 90°Elbow Fitting 90°
-
3293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
4415079900 Tubing 10 mmTubing 10 mm
-
5515176754 Starter. Electric StartStarter. Electric Start
-
6250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
7207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric StartHex Flanged Screw M8 X 35, Scotch Grip. Electric Start
-
8250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
9515176500 Washer. Electric StartWasher. Electric Start
-
10512060478 Rear PTO SupportRear PTO Support
-
11250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
14512060406 Front PTO SupportFront PTO Support
-
15207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
16234281474 Conical Spring Washer M8Conical Spring Washer M8
-
17512060470 Rear MAG SupportRear MAG Support
-
18207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20512060469 Front Support, MAGFront Support, MAG
-
21207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
22234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23512060457 Rubber MountRubber Mount
-
24512060387 Rubber MountRubber Mount
-
25207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27207583086 Hex. Flange Screw M8 X 30, Scotch GripHex. Flange Screw M8 X 30, Scotch Grip
-
28503183200 Washer, YellowWasher, Yellow
-
29234281474 Conical Spring Washer M8Conical Spring Washer M8
-
30250000361 Hex. Screw M8Hex. Screw M8
-
31512060488 StopperStopper
-
32512060489 Stopper SupportStopper Support
-
33207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
34403138804 Carburator Ass'y TM-40Carburator Ass'y TM-40
-
35512059835 Gemi ClampGemi Clamp
-
36512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
37293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
38512060355 Hose FormedHose Formed
-
39415080000 Tubing 16 mmTubing 16 mm
-
40512059324 Valve 5/16''Valve 5/16''
-
41512060353 Hose FormedHose Formed
-
42512060347 Hose FormedHose Formed
-
43415080000 Tubing 16 mmTubing 16 mm
-
44414655700 Spring ClampSpring Clamp
-
45293650084 Norma ClampNorma Clamp
-
46293650125 Oetiker ClampOetiker Clamp
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48293650046 Oetiker ClampOetiker Clamp
-
49414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
51572045500 T-ConnectorT-Connector
-
52415080200 Polyurethane HosePolyurethane Hose
-
53414580700 Elbow Male ConnectorElbow Male Connector
-
54512060298 Solenoid SupportSolenoid Support
-
55207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
56250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
57512060153 Choke CableChoke Cable
-
58512060016 Plastic NutPlastic Nut
-
59414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
60512060411 Throttle CableThrottle Cable
-
61293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
62234081100 Flat Washer 8 mmFlat Washer 8 mm
-
63414753500 CirclipCirclip
-
64414274500 CirclipCirclip
-
65515175442 Tubing 6 mmTubing 6 mm
-
66512060313 ProtectorProtector
-
67415079900 Tubing 10 mmTubing 10 mm
-
68414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
69512060198 Upper HousingUpper Housing
-
70512060430 Lower HousingLower Housing
-
71512060466 Throttle Handle Ass'y. Includes 71 to 72Throttle Handle Ass'y. Includes 71 to 72
-
72515175232 Male TerminalMale Terminal
-
73732601143 Flanged ScrewFlanged Screw
-
74512059968 Ignition CoilIgnition Coil
-
75293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
76512060291 Cable Ass'yCable Ass'y
-
77410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
78207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
79233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
80512060278 Coil SupportCoil Support
-
81241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
82512060433 Calibrated Module 500SSCalibrated Module 500SS
-
83512060354 Spark Plug, BR10ECSSpark Plug, BR10ECS
-
84293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
85512060136 Starter GripStarter Grip
-
86512060338 Noise ShieldNoise Shield
-
87512060341 Inner Noise FoamInner Noise Foam
-
88512060342 Outer Noise FoamOuter Noise Foam
-
89512060358 Reflective SheetReflective Sheet
-
90512060371 Reflective SheetReflective Sheet
-
91207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
92250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
