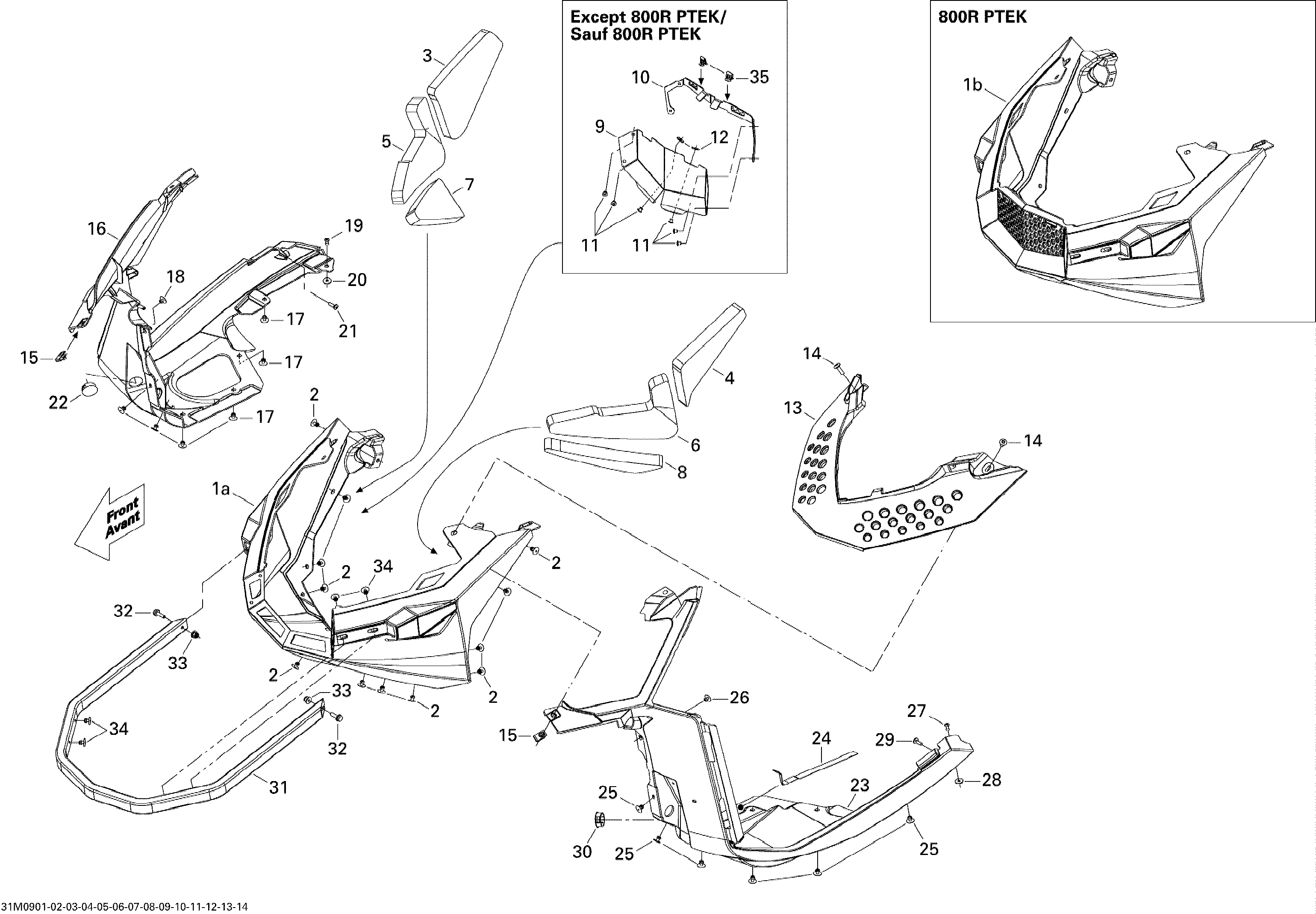

09- Bottom Pan для BRP Ski-Doo MX Z TNT 500SS - 2009
-
№АртикулНазвание
-
1a502006941 Front Bottom Pan. 500SSFront Bottom Pan. 500SS
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502006829 RH Foam UpperRH Foam Upper
-
4502006830 LH Foam UpperLH Foam Upper
-
5502006906 RH Middle FoamRH Middle Foam
-
6502006907 LH Middle FoamLH Middle Foam
-
7502006908 RH Lower FoamRH Lower Foam
-
8502006909 LH Lower FoamLH Lower Foam
-
9502006942 Bottom Pan Grill. 500SSBottom Pan Grill. 500SS
-
10502006943 Grill Bracket. 500SSGrill Bracket. 500SS
-
11293150102 Rivet 3/16. 500SSRivet 3/16. 500SS
-
12517124300 Washer. 500SSWasher. 500SS
-
13502006967 Bottom Pan CapBottom Pan Cap
-
14250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16502006831 RH Bottom PanRH Bottom Pan
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150103 Pop RivetPop Rivet
-
19390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
20517124300 WasherWasher
-
21250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22414916600 Nylon CapNylon Cap
-
23502006832 LH Bottom PanLH Bottom Pan
-
24293250087 GasketGasket
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26293150103 Pop RivetPop Rivet
-
27390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
28517124300 WasherWasher
-
29250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
30414916600 Nylon CapNylon Cap
-
31502006833 Front BumperFront Bumper
-
32207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
35517302785 Clip. 500SSClip. 500SS
