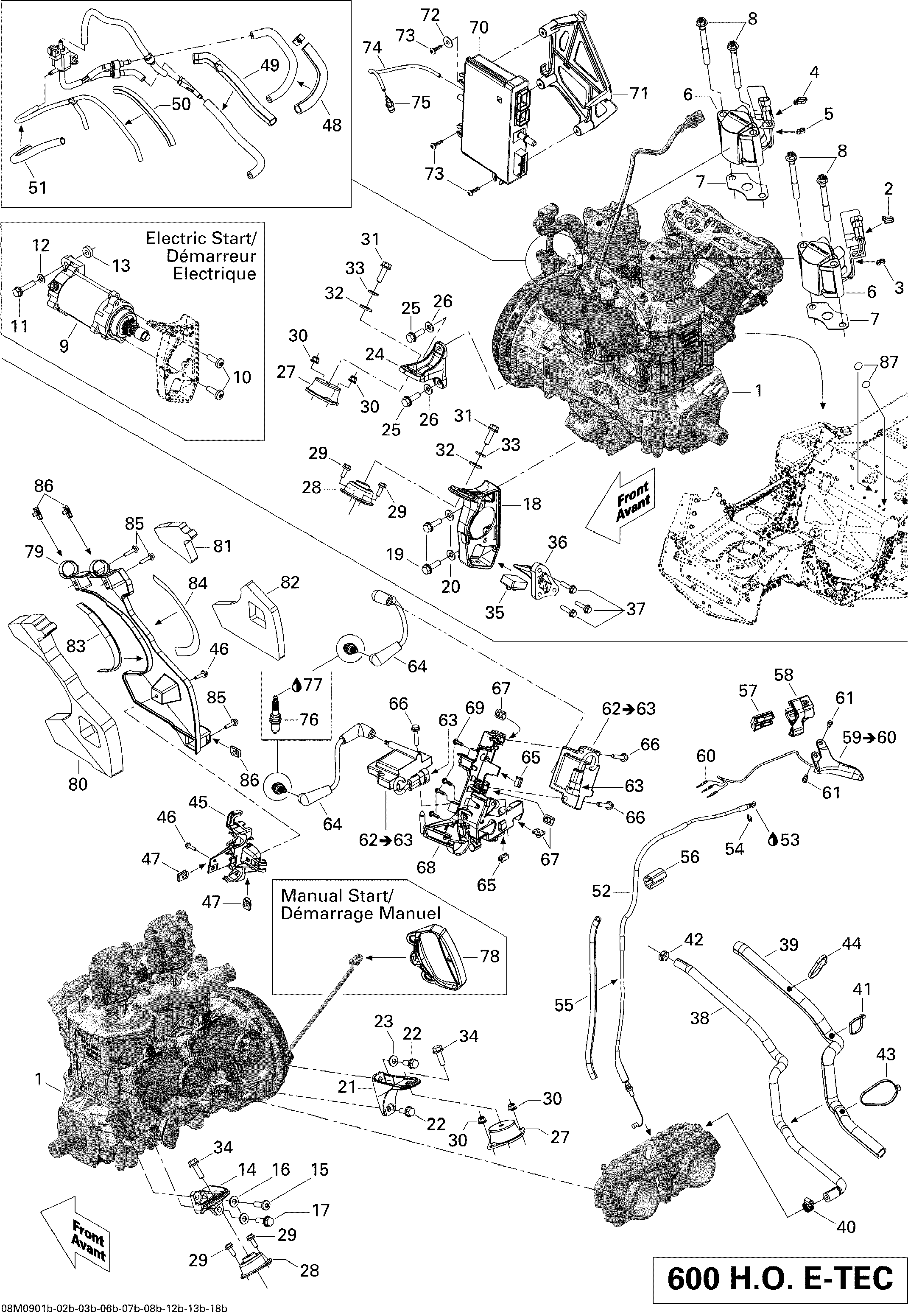

01- Engine 600HO_X для BRP Ski-Doo MX Z Renegade X 600 H.O. E-TEC - 2009
-
№АртикулНазвание
-
1400604035 Engine 600HOE With Rewind Starter. Manual StartEngine 600HOE With Rewind Starter. Manual Start
-
1400604038 Engine 600HOE Withtout Rewind Starter. Electrical StartEngine 600HOE Withtout Rewind Starter. Electrical Start
-
2293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
3293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
6420874731 Fuel Injector Ass'yFuel Injector Ass'y
-
7420430930 GasketGasket
-
8420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
9515176754 Starter. Electrical StartStarter. Electrical Start
-
10250000248 Torx Screw M8 X 25, Scotch Grip. Electrical StartTorx Screw M8 X 25, Scotch Grip. Electrical Start
-
11207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electrical StartHex Flanged Screw M8 X 35, Scotch Grip. Electrical Start
-
12250200008 Flat Washer 8 mm. Electrical StartFlat Washer 8 mm. Electrical Start
-
13515176500 Washer. Electrical StartWasher. Electrical Start
-
14512060478 Rear PTO SupportRear PTO Support
-
15250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
16234281474 Conical Spring Washer M8Conical Spring Washer M8
-
17207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
18512060472 Front PTO Support. Renegade XFront PTO Support. Renegade X
-
19207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21512060470 Rear MAG SupportRear MAG Support
-
22207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060469 Front Support, MAGFront Support, MAG
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26234281474 Conical Spring Washer M8Conical Spring Washer M8
-
27512060457 Rubber MountRubber Mount
-
28512060387 Rubber MountRubber Mount
-
29207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31207583086 Hex. Flange Screw M8 X 30, Scotch GripHex. Flange Screw M8 X 30, Scotch Grip
-
32503183200 Washer, YellowWasher, Yellow
-
33234281474 Conical Spring Washer M8Conical Spring Washer M8
-
34250000361 Hex. Screw M8Hex. Screw M8
-
35512060488 StopperStopper
-
36512060489 Stopper SupportStopper Support
-
37207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
38512060349 Formed Hose Output TBFormed Hose Output TB
-
39415080000 Tubing 16 mmTubing 16 mm
-
40293650084 Norma ClampNorma Clamp
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42293650046 Oetiker ClampOetiker Clamp
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45512060298 Solenoid SupportSolenoid Support
-
46207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
47250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
48409901800 Tubing 13 mmTubing 13 mm
-
49409901800 Tubing 13 mmTubing 13 mm
-
50409901700 Tubing 9 mmTubing 9 mm
-
51409901700 Tubing 9 mmTubing 9 mm
-
52512060230 Throttle CableThrottle Cable
-
53293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
54414274500 CirclipCirclip
-
55409901700 Tubing 9 mmTubing 9 mm
-
56512060313 ProtectorProtector
-
57512060198 Upper HousingUpper Housing
-
58512060430 Lower HousingLower Housing
-
59512060468 Throttle Handle Ass'y. Includes 59 to 60, Renegade XThrottle Handle Ass'y. Includes 59 to 60, Renegade X
-
60515175232 Male TerminalMale Terminal
-
61732601143 Flanged ScrewFlanged Screw
-
62512060093 Ignition Coil. Includes 62 to 63Ignition Coil. Includes 62 to 63
-
63710000568 HousingHousing
-
64512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
65710000992 ClipClip
-
66250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
67293100003 Nut M6Nut M6
-
68512060287 Support CoilsSupport Coils
-
69241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
70512060479 Calibrated ModuleCalibrated Module
-
71512060297 Calibrated Module SupportCalibrated Module Support
-
72250200040 Flat WasherFlat Washer
-
73250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
74415080100 LineLine
-
75414814100 Male ConnectorMale Connector
-
76415129375 Spark PlugSpark Plug
-
77293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
78512060136 Starter Grip. Manual StartStarter Grip. Manual Start
-
79512060339 Noise ShieldNoise Shield
-
80512060343 Interior Noise FoamInterior Noise Foam
-
81512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
82512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
83512060358 Reflective SheetReflective Sheet
-
84512060371 Reflective SheetReflective Sheet
-
85207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
86250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
87518325560 Adhesive PatchAdhesive Patch
