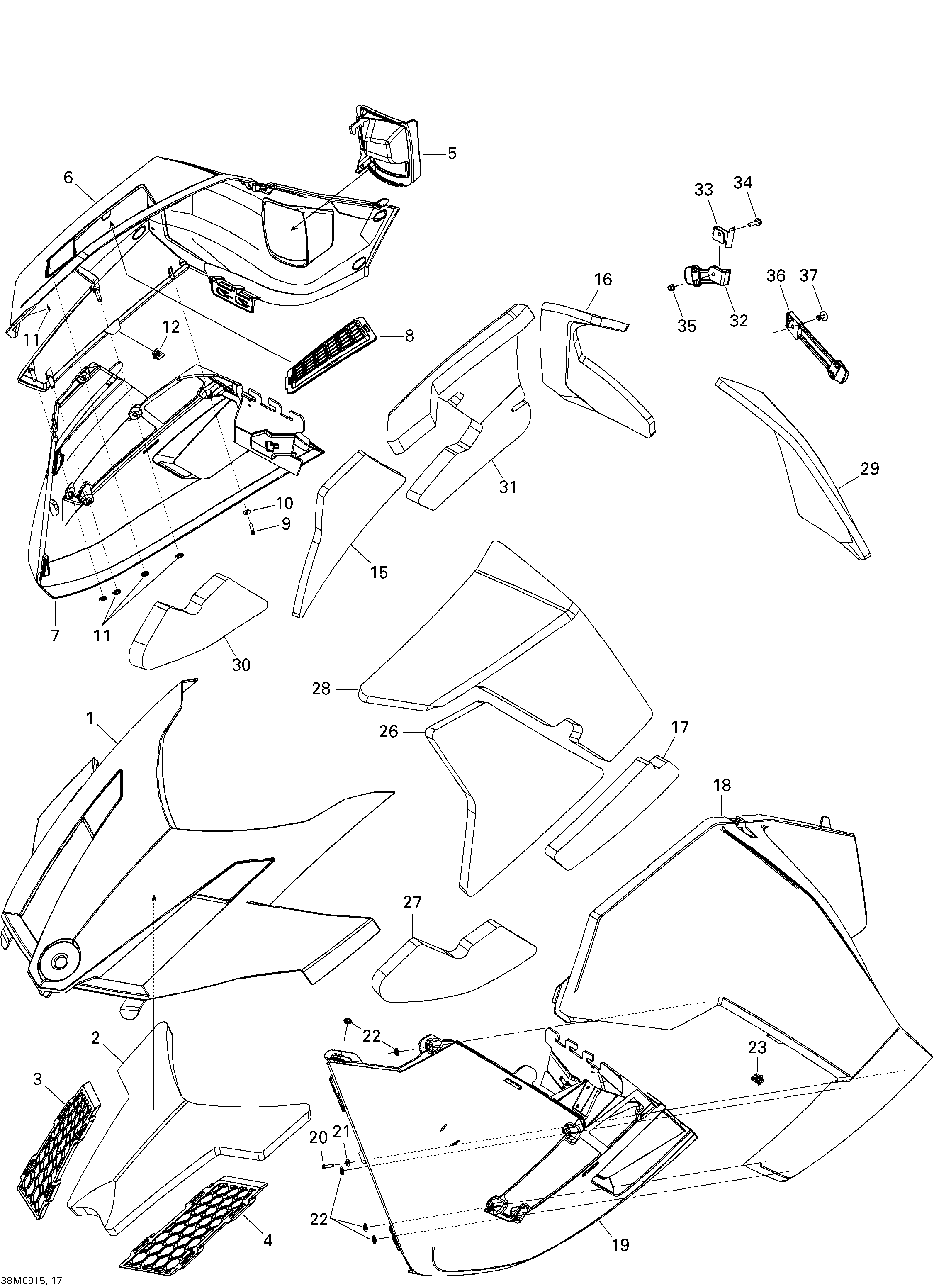

09- Hood Renegade X для BRP Ski-Doo MX Z Renegade X 1200 4-TEC - 2009
-
№АртикулНазвание
-
1517303739 Hood. Black-Black ModelHood. Black-Black Model
-
1517304035 Hood. Yellow-Yellow ModelHood. Yellow-Yellow Model
-
2517304130 Foam HoodFoam Hood
-
3517303805 RH Hood GrillRH Hood Grill
-
4517303804 LH Hood GrillLH Hood Grill
-
5517303810 RH ConsoleRH Console
-
6517303748 Black RH Panel. Black-Black ModelBlack RH Panel. Black-Black Model
-
6517304067 RH Pannel. Yellow-Yellow ModelRH Pannel. Yellow-Yellow Model
-
7517304373 RH Pannel MouldingRH Pannel Moulding
-
8517303801 Pannel GrillPannel Grill
-
9241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
10234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
11732610072 Push NutPush Nut
-
12517302785 ClipClip
-
15517303750 RH Central Pannel FoamRH Central Pannel Foam
-
16517303751 RH Central Pannel FoamRH Central Pannel Foam
-
17517304278 LH Central Pannel FoamLH Central Pannel Foam
-
18517303753 LH Pannel. Black-Black ModelLH Pannel. Black-Black Model
-
18517304069 LH Pannel. Yellow-Yellow ModelLH Pannel. Yellow-Yellow Model
-
19517304362 LH Pannel MouldingLH Pannel Moulding
-
20241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
21234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
22732610072 Push NutPush Nut
-
23517302785 ClipClip
-
26517304273 LH Central Pannel FoamLH Central Pannel Foam
-
27517304133 LH Low Pannel FoamLH Low Pannel Foam
-
29517304135 LH Rear Pannel FoamLH Rear Pannel Foam
-
30517304137 RH Low Pannel FoamRH Low Pannel Foam
-
31517304136 RH Upper Pannel FoamRH Upper Pannel Foam
-
32517303612 Panel LatchPanel Latch
-
33517304221 Latch SupportLatch Support
-
34207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
35233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
36517303808 Panel LatchPanel Latch
-
37293150108 Pop Rivet 3/16''Pop Rivet 3/16''
