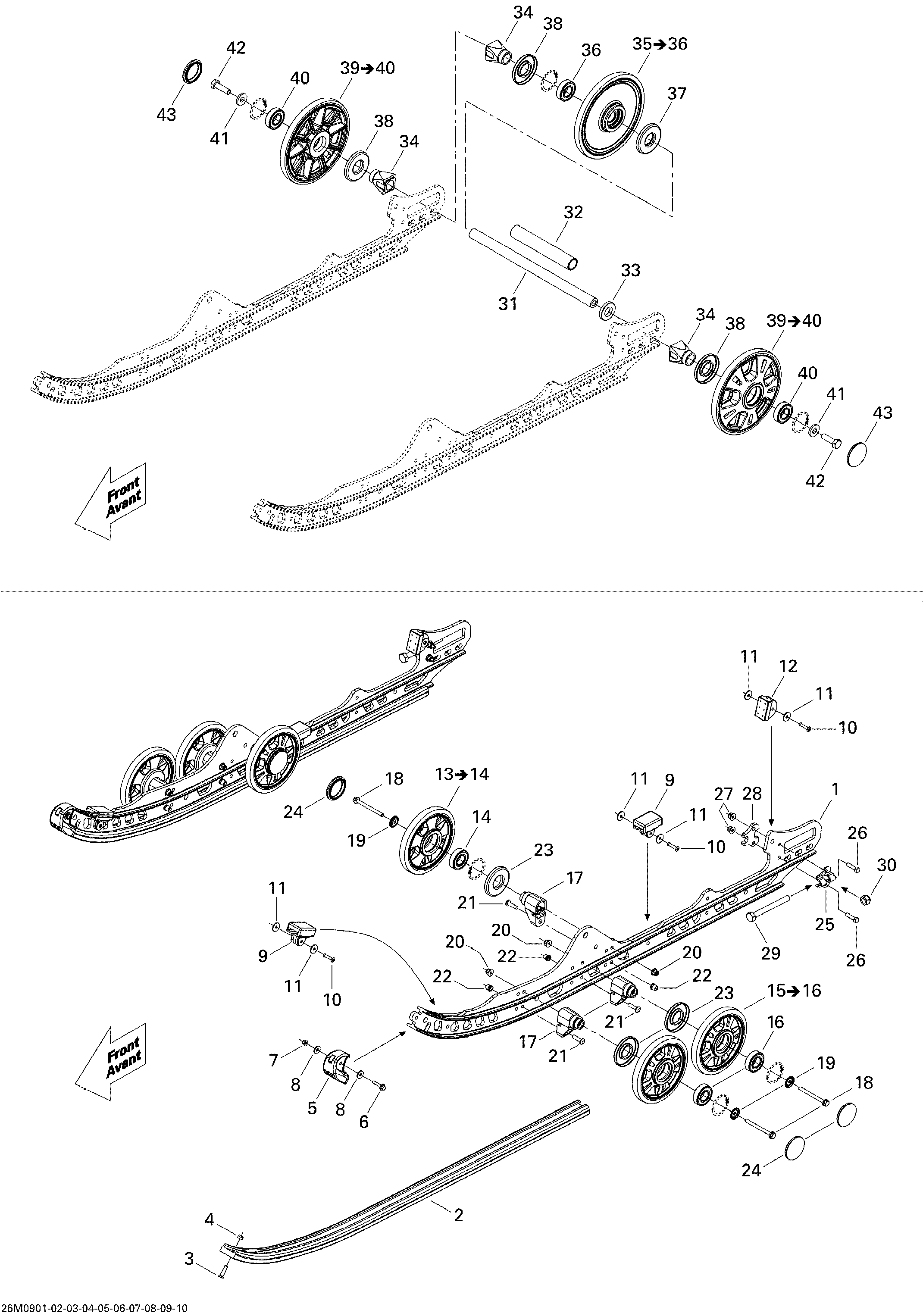

08- Rear Suspension для BRP Ski-Doo MX Z Adrenaline 800R Power T.E.K. - 2009

  • №
    Артикул
    Название
  • 1
    503191901 Runner 120''
    Runner 120''
  • 2
    503191301 Slider Shoe 120'', Black
    Slider Shoe 120'', Black
  • 3
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 4
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    503191137 Runner Protector
    Runner Protector
  • 6
    207652544 Hex. Flange Screw M5 X 25
    Hex. Flange Screw M5 X 25
  • 7
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 8
    391301600 Washer
    Washer
  • 9
    503190576 Rubber Stopper
    Rubber Stopper
  • 10
    293150142 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 11
    503191273 Washer
    Washer
  • 12
    503191291 Rubber Stopper
    Rubber Stopper
  • 13
    503191316 Wheel 141 Ass'y. Includes 13 to 14
    Wheel 141 Ass'y. Includes 13 to 14
  • 14
    503190396 Ball Bearing
    Ball Bearing
  • 15
    503191621 Wheel 141 mm Ass'y, Yellow. Includes 15 to 16
    Wheel 141 mm Ass'y, Yellow. Includes 15 to 16
  • 16
    503190396 Ball Bearing
    Ball Bearing
  • 17
    503191833 Support
    Support
  • 18
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 19
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 20
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 21
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 22
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 23
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 24
    570063600 Wheel Cap
    Wheel Cap
  • 25
    503190380 Tensioner
    Tensioner
  • 26
    207162544 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 27
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 29
    230100044 Hex. Screw M10 X 100
    Hex. Screw M10 X 100
  • 30
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 31
    503190429 Rear Axle
    Rear Axle
  • 32
    503190430 Rear Long Spacer
    Rear Long Spacer
  • 33
    503190432 Washer
    Washer
  • 34
    503190428 Rear Wheel Spacer
    Rear Wheel Spacer
  • 35
    503191559 Wheel 180, Black. Includes 35 to 36
    Wheel 180, Black. Includes 35 to 36
  • 36
    503190396 Ball Bearing
    Ball Bearing
  • 37
    503190682 Labyrinth Seal
    Labyrinth Seal
  • 38
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 39
    503191626 Wheel 180, Yellow. Includes 39 to 40
    Wheel 180, Yellow. Includes 39 to 40
  • 40
    503190396 Ball Bearing
    Ball Bearing
  • 41
    503190439 Washer
    Washer
  • 42
    250000019 Hex. Screw With Nylon
    Hex. Screw With Nylon
  • 43
    570063600 Wheel Cap
    Wheel Cap
