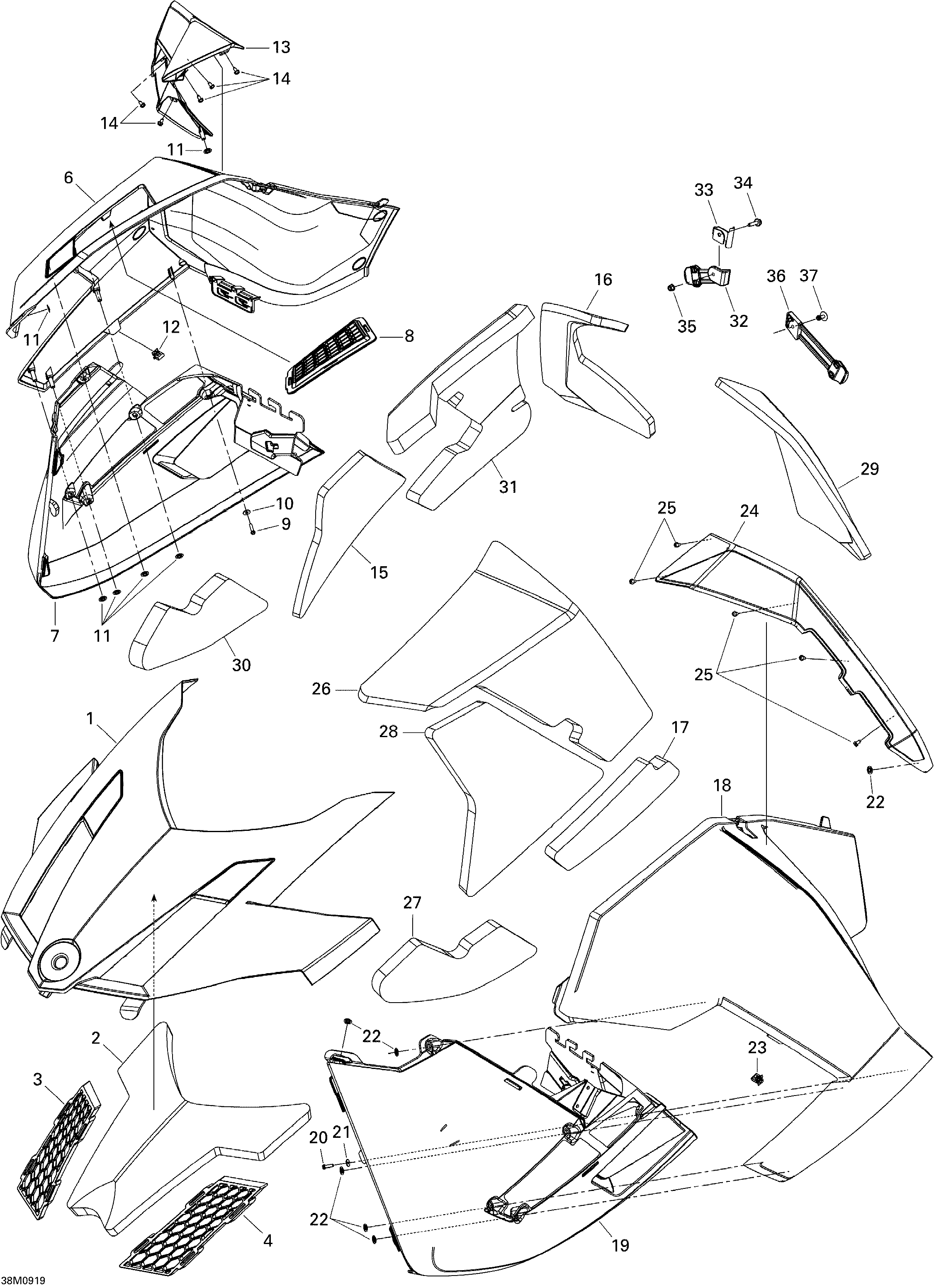

09- Hood для BRP Ski-Doo GTX SE 1200 4-TEC - 2009

  • №
    Артикул
    Название
  • 1
    517304039 Hood
    Hood
  • 2
    517303740 Foam Hood
    Foam Hood
  • 3
    517303805 RH Hood Grill
    RH Hood Grill
  • 4
    517303804 LH Hood Grill
    LH Hood Grill
  • 6
    517304052 RH Pannel
    RH Pannel
  • 7
    517304373 RH Pannel Moulding
    RH Pannel Moulding
  • 8
    517303801 Pannel Grill
    Pannel Grill
  • 9
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 10
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 11
    732610072 Push Nut
    Push Nut
  • 12
    517302785 Clip
    Clip
  • 13
    517303772 RH Side Wind Deflector
    RH Side Wind Deflector
  • 14
    732601210 Hex. Flanged Screw #8 X 3/8
    Hex. Flanged Screw #8 X 3/8
  • 15
    517303750 RH Central Pannel Foam
    RH Central Pannel Foam
  • 16
    517303751 RH Central Pannel Foam
    RH Central Pannel Foam
  • 17
    517304277 LH Central Pannel Foam
    LH Central Pannel Foam
  • 18
    517304057 LH Pannel
    LH Pannel
  • 19
    517304362 LH Pannel Moulding
    LH Pannel Moulding
  • 20
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 21
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 22
    732610072 Push Nut
    Push Nut
  • 23
    517302785 Clip
    Clip
  • 24
    517303771 LH Side Wind Deflector
    LH Side Wind Deflector
  • 25
    732601210 Hex. Flanged Screw #8 X 3/8
    Hex. Flanged Screw #8 X 3/8
  • 26
    517304274 LH Central Pannel Foam
    LH Central Pannel Foam
  • 27
    517304059 LH Low Pannel Foam
    LH Low Pannel Foam
  • 28
    517304276 LH Upper Pannel Foam
    LH Upper Pannel Foam
  • 29
    517304135 LH Rear Pannel Foam
    LH Rear Pannel Foam
  • 30
    517304063 RH Low Pannel Foam
    RH Low Pannel Foam
  • 31
    517304080 RH Upper Pannel Foam
    RH Upper Pannel Foam
  • 32
    517303612 Panel Latch
    Panel Latch
  • 33
    517304221 Latch Support
    Latch Support
  • 34
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 35
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 36
    517303808 Panel Latch
    Panel Latch
  • 37
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
