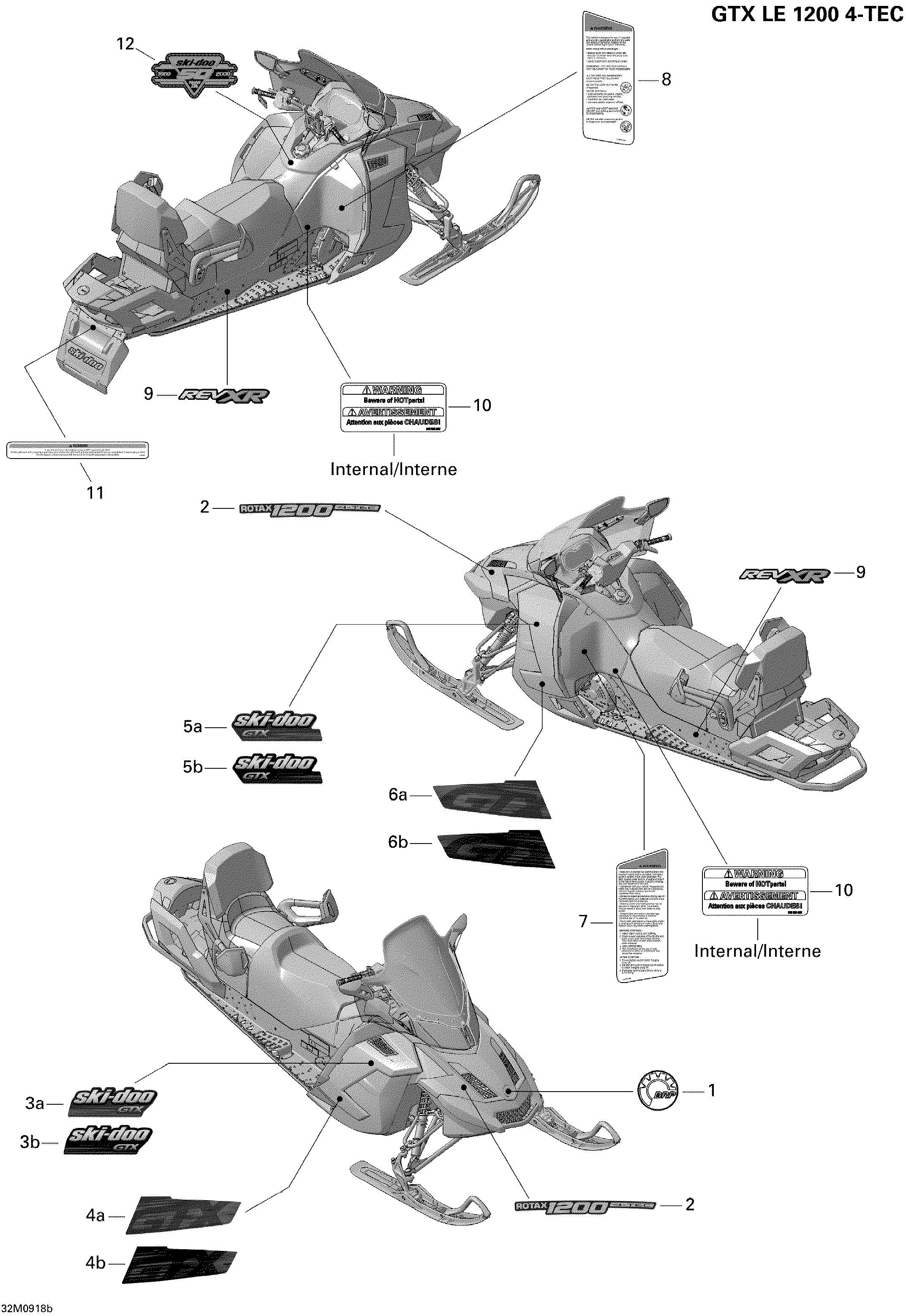

09- Decals 1200 для BRP Ski-Doo GTX LE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516003648 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3a516003727 RH Side Decal. Red-Red ModelRH Side Decal. Red-Red Model
-
3b516003731 RH Side Decal. Black-Black ModelRH Side Decal. Black-Black Model
-
4a516003725 RH Lower Side Decal. Red-Red ModelRH Lower Side Decal. Red-Red Model
-
4b516003729 RH Lower Side Decal. Black-Black ModelRH Lower Side Decal. Black-Black Model
-
5a516003726 LH Side Decal. Red-Red ModelLH Side Decal. Red-Red Model
-
5b516003730 LH Side Decal. Black-Black ModelLH Side Decal. Black-Black Model
-
6a516003724 LH Lower Side Decal. Red-Red ModelLH Lower Side Decal. Red-Red Model
-
6b516003728 LH Lower Side Decal. Black-Black ModelLH Lower Side Decal. Black-Black Model
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003784 Decal REV XRDecal REV XR
-
10516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
11516003578 Warning Decal, TrackWarning Decal, Track
-
12516003871 Console DecalConsole Decal
