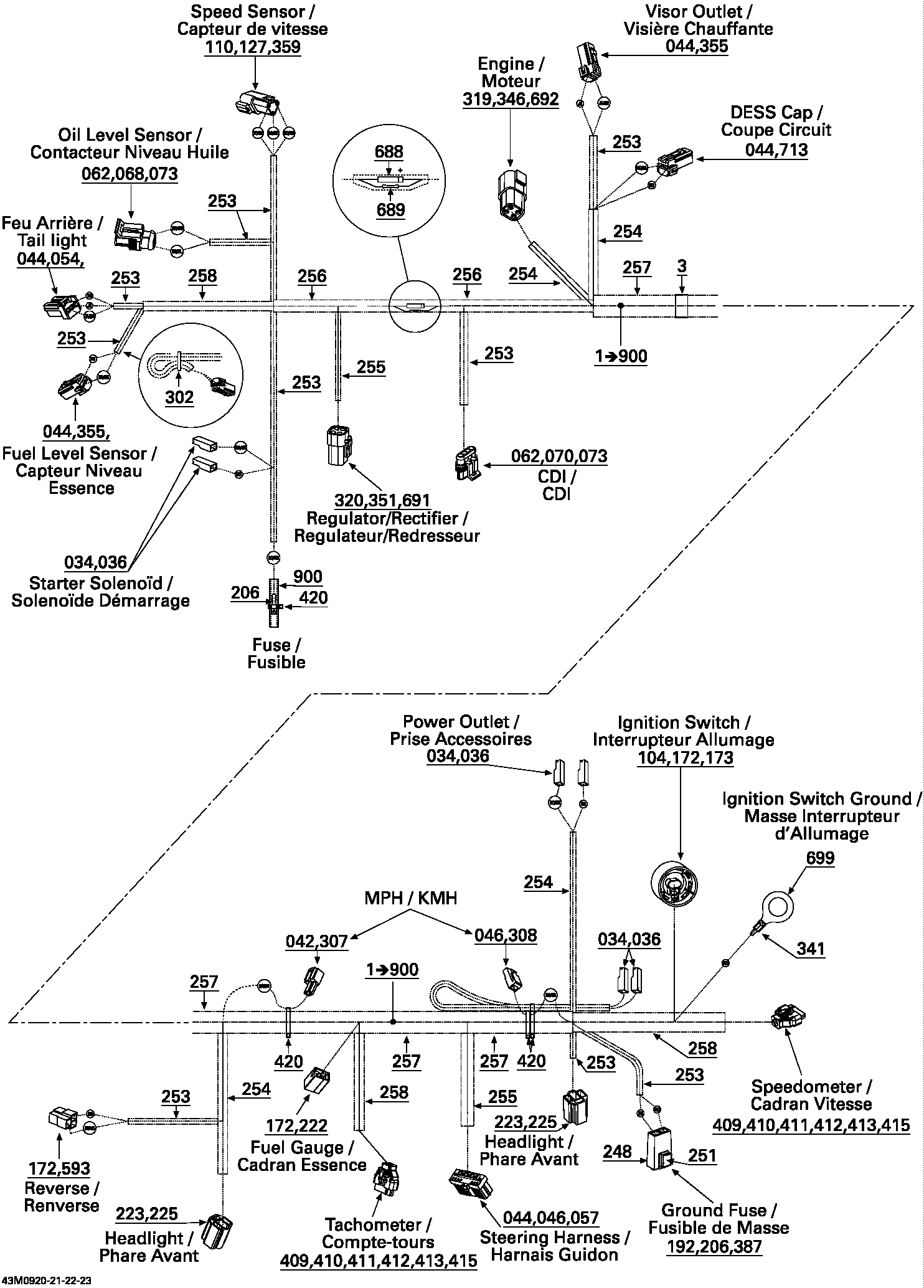

10- Electrical Harness для BRP Ski-Doo GSX Fan - 2009

  • №
    Артикул
    Название
  • 1
    515176425 Frame Wiring Harness. Includes 1 to 900
    Frame Wiring Harness. Includes 1 to 900
  • 34
    409010100 Female Terminal
    Female Terminal
  • 36
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 42
    515175273 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 54
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 57
    515175350 Female Terminal Housing, 13 Circuits
    Female Terminal Housing, 13 Circuits
  • 62
    278001014 Female Terminal
    Female Terminal
  • 68
    409209500 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 70
    409209700 Female Housing, 4 Circuits
    Female Housing, 4 Circuits
  • 73
    278001013 Wire Seal
    Wire Seal
  • 104
    572150700 Female Terminal Housing, 9 Circuits
    Female Terminal Housing, 9 Circuits
  • 110
    278000631 Male Terminal
    Male Terminal
  • 127
    409207600 Male Lock, 3 Circuits
    Male Lock, 3 Circuits
  • 172
    561503100 Female Terminal
    Female Terminal
  • 173
    561503100 Female Terminal
    Female Terminal
  • 192
    409003900 Fuse, 20 Amperes
    Fuse, 20 Amperes
  • 206
    409004200 Female Terminal
    Female Terminal
  • 222
    409204300 Female Housing
    Female Housing
  • 223
    515175320 Female Terminal
    Female Terminal
  • 225
    409202700 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 248
    409004000 Fuse Holder
    Fuse Holder
  • 251
    409014200 Clip
    Clip
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 257
    409901600 Tubing, 19 mm
    Tubing, 19 mm
  • 258
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 302
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 307
    515175509 Male Terminal Housing, 1 Circuit
    Male Terminal Housing, 1 Circuit
  • 308
    515175510 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 319
    515175568 Male Terminal
    Male Terminal
  • 320
    515175567 Female Terminal
    Female Terminal
  • 346
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 351
    278001474 Female Lock, 4 Circuits
    Female Lock, 4 Circuits
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 359
    515175666 Male Housing
    Male Housing
  • 387
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Housing, 24 Circuits
    Female Housing, 24 Circuits
  • 411
    515175802 Retainer Block
    Retainer Block
  • 412
    515175803 Wire Seal
    Wire Seal
  • 413
    515175804 Block
    Block
  • 415
    515175806 Female Terminal
    Female Terminal
  • 420
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 593
    515176069 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 686
    515176279 Capacitor
    Capacitor
  • 689
    515176280 Resistance
    Resistance
  • 691
    278002027 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 692
    278002028 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 699
    515176287 Ring Terminal
    Ring Terminal
  • 713
    515176296 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 900
    415079200 Hose
    Hose
