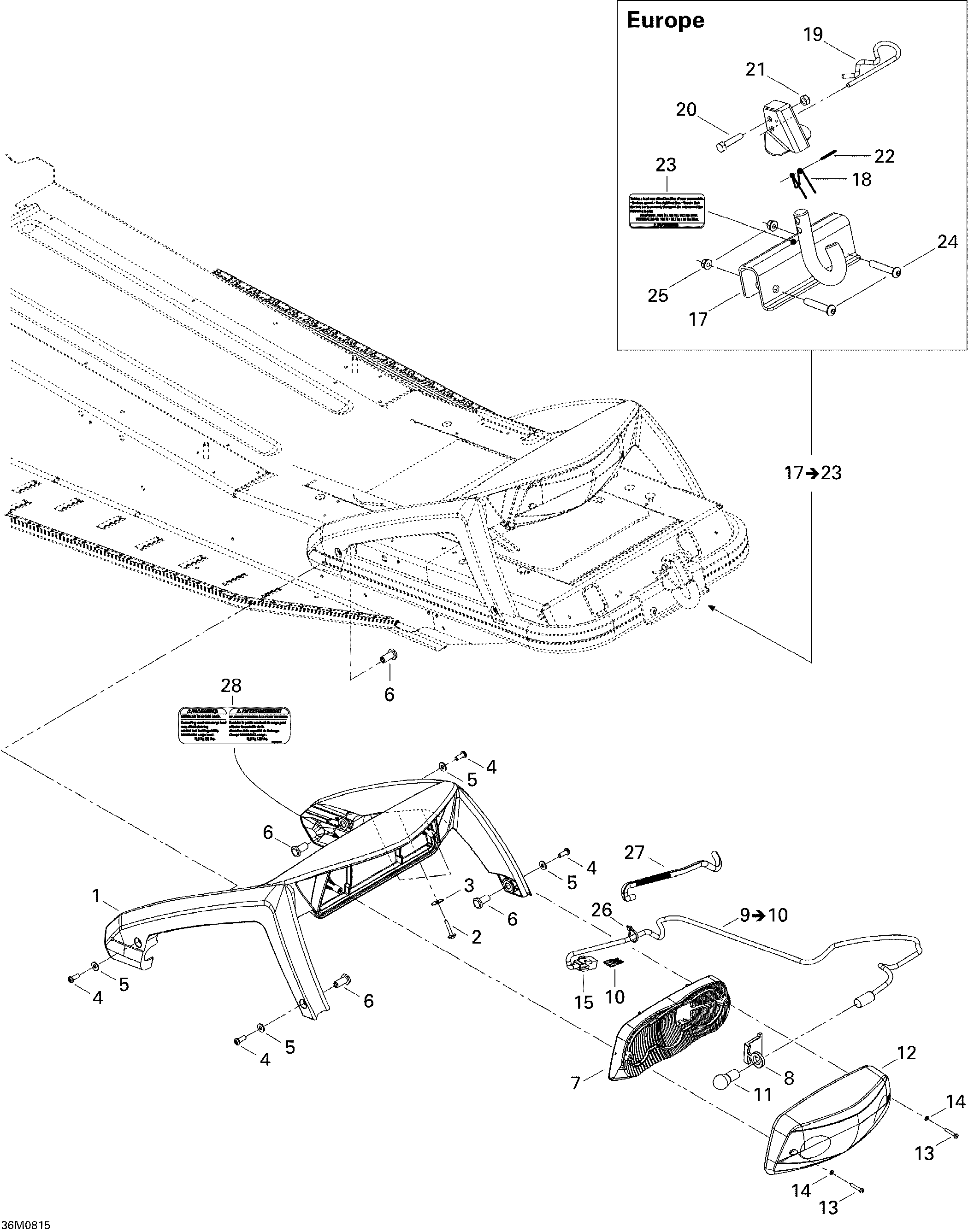

09- Luggage Rack для BRP Ski-Doo Freestyle Back Country - 2009

  • №
    Артикул
    Название
  • 1
    511000425 Luggage Rack
    Luggage Rack
  • 2
    250000202 Self Tapping Screw #8 X 5/8
    Self Tapping Screw #8 X 5/8
  • 3
    250200040 Flat Washer
    Flat Washer
  • 4
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 5
    250200039 Flat Washer
    Flat Washer
  • 6
    511000398 Insert
    Insert
  • 7
    510004442 Reflector
    Reflector
  • 8
    511000431 Bulb Support
    Bulb Support
  • 9
    511000466 Bulb Socket. Includes 9 to 10
    Bulb Socket. Includes 9 to 10
  • 10
    515175232 Male Terminal
    Male Terminal
  • 11
    520000758 Bulb
    Bulb
  • 12
    511000315 Lens
    Lens
  • 13
    209632580 Phillips Tapping Screw 3.9 X 25
    Phillips Tapping Screw 3.9 X 25
  • 14
    414516400 Washer
    Washer
  • 15
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 17
    511000509 Hitch Ass'y. Includes 17 to 23, Europe
    Hitch Ass'y. Includes 17 to 23, Europe
  • 18
    517152800 Spring. Europe
    Spring. Europe
  • 19
    114045200 Hair Pin. Europe
    Hair Pin. Europe
  • 20
    207063544 Hex. Flanged Screw M6 X 35. Europe
    Hex. Flanged Screw M6 X 35. Europe
  • 21
    232561414 Elastic Stop Nut M6. Europe
    Elastic Stop Nut M6. Europe
  • 22
    732804000 Spring Pin M3 X 24. Europe
    Spring Pin M3 X 24. Europe
  • 23
    516003037 Warning Decal-Security-English. Europe
    Warning Decal-Security-English. Europe
  • 24
    205484546 Socket Head Screw M8 X 45. Europe
    Socket Head Screw M8 X 45. Europe
  • 25
    233281414 Hex. Flanged Elastic Nut M8. Europe
    Hex. Flanged Elastic Nut M8. Europe
  • 26
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 27
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 28
    516002960 Warning Label, Maximum Cargo Load
    Warning Label, Maximum Cargo Load
