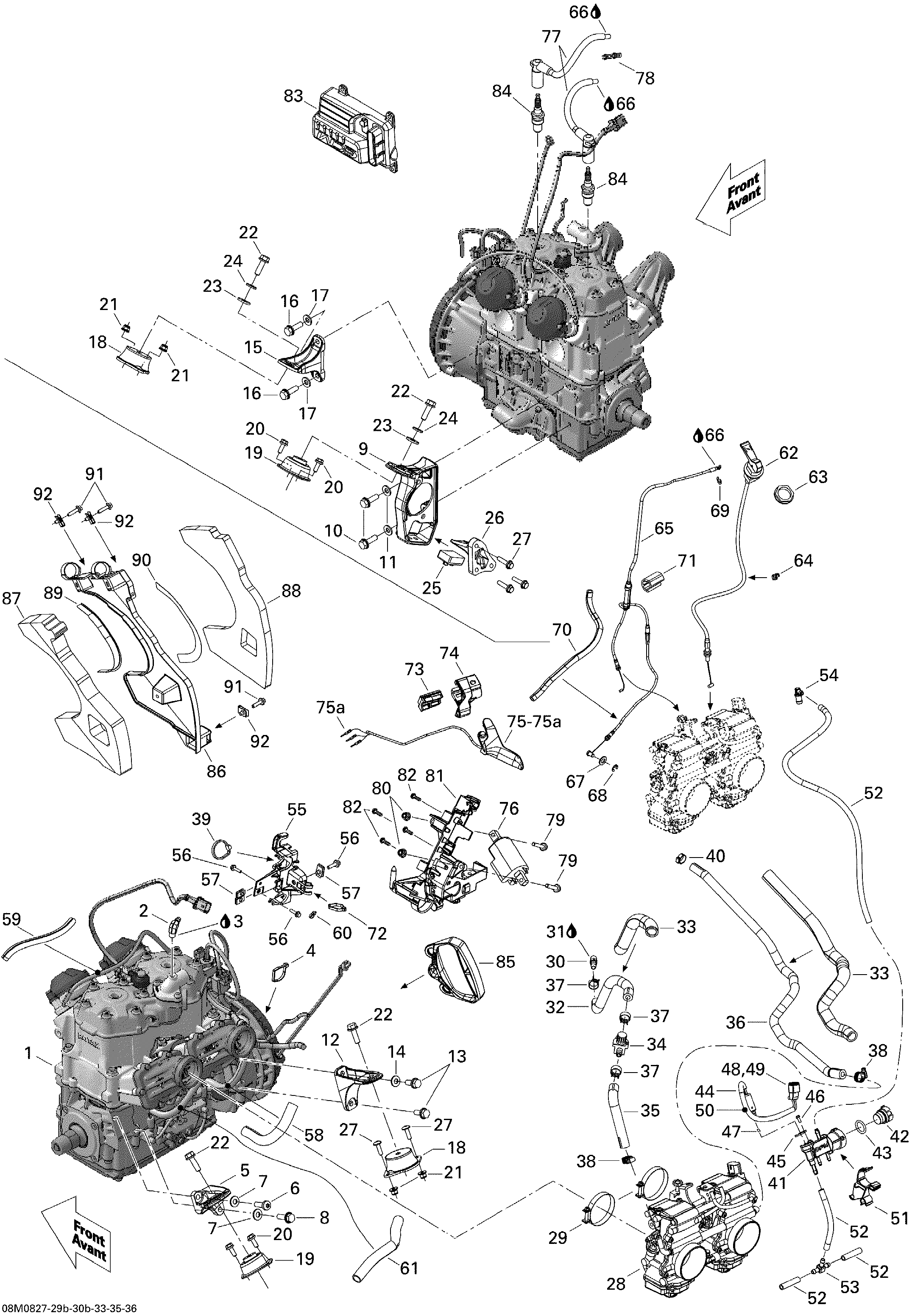

01- Engine And Engine Support для BRP Ski-Doo Summit X 800R - 2008
-
№АртикулНазвание
-
1400800312 Engine 800 REngine 800 R
-
2293700045 Elbow Fitting 90°Elbow Fitting 90°
-
3293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5512060173 Rear PTO SupportRear PTO Support
-
6250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9512060172 PTO, Front SupportPTO, Front Support
-
9512060386 PTO, Front Support. EuropePTO, Front Support. Europe
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12512060114 Rear MAG SupportRear MAG Support
-
13207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060108 Front MAG SupportFront MAG Support
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060246 Rubber MountRubber Mount
-
19512060387 Rubber MountRubber Mount
-
20207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
23503183200 Washer, YellowWasher, Yellow
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060179 StopperStopper
-
26512060180 Stopper SupportStopper Support
-
27207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
28403138793 Carburator Kit TM40-B373Carburator Kit TM40-B373
-
29512059835 Gemi ClampGemi Clamp
-
30512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
31293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
32512060357 Hose Formed Engine OutletHose Formed Engine Outlet
-
33415080000 Tubing 16 mmTubing 16 mm
-
34512059324 Valve 5/16''Valve 5/16''
-
35512060353 Hose FormedHose Formed
-
36512060347 Hose FormedHose Formed
-
37414655700 Spring ClampSpring Clamp
-
38293650170 Hose ClampHose Clamp
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40293650025 Oetiker ClampOetiker Clamp
-
41512060002 Pressure Manifold Ass'y. Includes 41 to 49Pressure Manifold Ass'y. Includes 41 to 49
-
42270600009 CapCap
-
43293300042 O-RingO-Ring
-
44515175701 Solenoid ValveSolenoid Valve
-
45415061600 Solenoid LockSolenoid Lock
-
46241140060 Screw K40 X 10Screw K40 X 10
-
47404161825 Starter JetStarter Jet
-
48515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
49515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
50515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
51512060229 DPM SupportDPM Support
-
52415080200 Polyurethane HosePolyurethane Hose
-
53414729300 T-FittingT-Fitting
-
54414580700 Elbow Male ConnectorElbow Male Connector
-
55512060298 Solenoid SupportSolenoid Support
-
56207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
57250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
58409901800 Tubing 13 mmTubing 13 mm
-
59409901700 Tubing 9 mmTubing 9 mm
-
60293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
61415079900 Tubing 10 mmTubing 10 mm
-
62512060153 Choke CableChoke Cable
-
63512060016 Plastic NutPlastic Nut
-
64414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
65512060133 Throttle CableThrottle Cable
-
66293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
67234081100 Flat Washer 8 mmFlat Washer 8 mm
-
68414753500 CirclipCirclip
-
69414274500 CirclipCirclip
-
70515175442 Tubing 6 mmTubing 6 mm
-
71512060313 ProtectorProtector
-
72414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
73512060198 Upper HousingUpper Housing
-
74512060197 Lower HousingLower Housing
-
75512060219 Handle Ass'yHandle Ass'y
-
75a515175232 Male TerminalMale Terminal
-
76512059968 Ignition CoilIgnition Coil
-
77512060291 Cable Ass'yCable Ass'y
-
78410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
79207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
81512060278 Coil SupportCoil Support
-
82241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
83512060260 Calibrated Module 800RCalibrated Module 800R
-
84415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
85512060136 Starter GripStarter Grip
-
86512060338 Noise ShieldNoise Shield
-
87512060341 Inner Noise FoamInner Noise Foam
-
88512060342 Outer Noise FoamOuter Noise Foam
-
89512060358 Reflective SheetReflective Sheet
-
90512060371 Reflective SheetReflective Sheet
-
91207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
92250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
