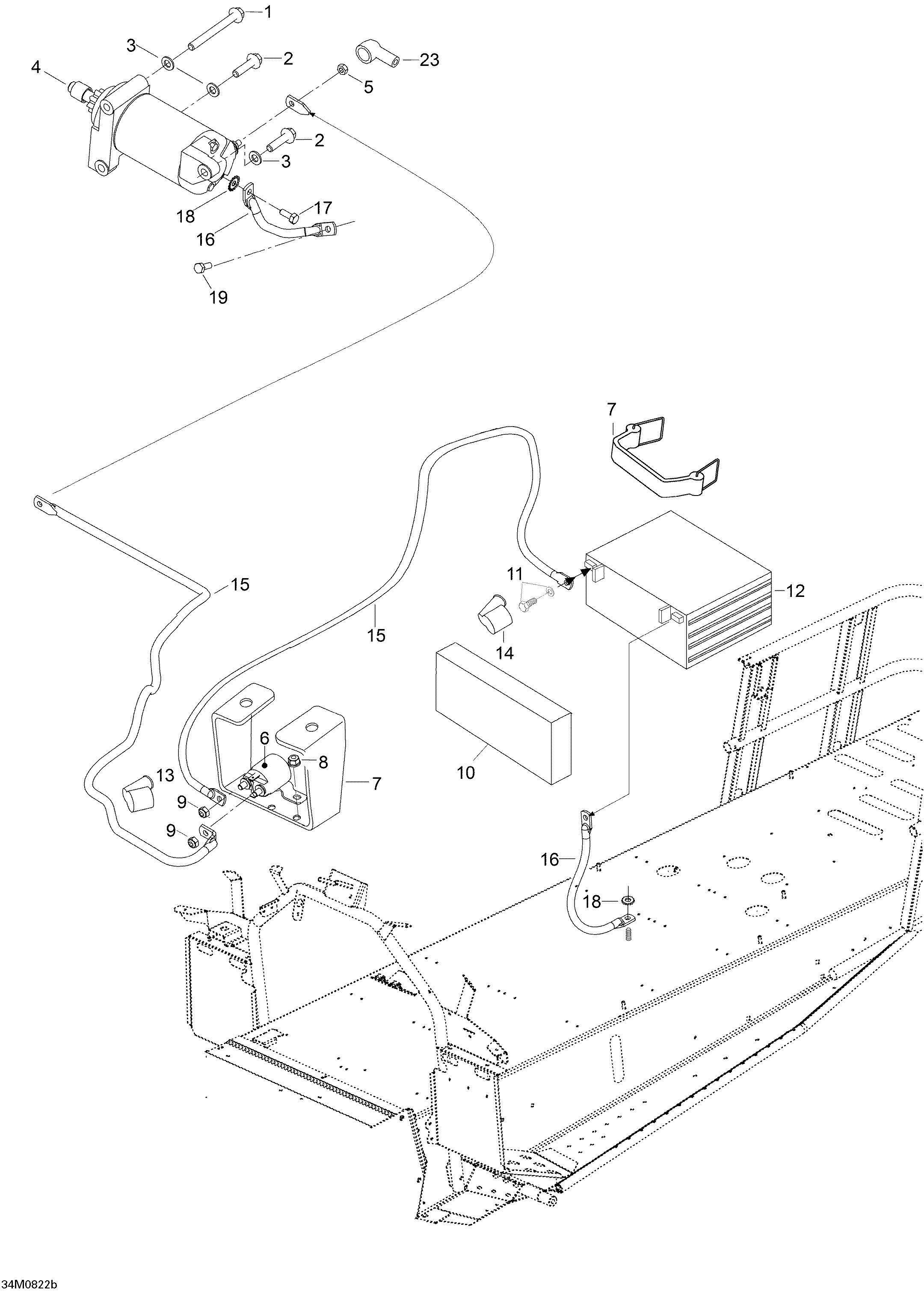

10- Battery And Starter WT 600 для BRP Ski-Doo Skandic WT 600 - 2008
-
№АртикулНазвание
-
1207587544 Hex. Flanged Screw M8 X 75, Scotch GripHex. Flanged Screw M8 X 75, Scotch Grip
-
2207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
3250200008 Flat Washer 8 mmFlat Washer 8 mm
-
4515176133 Electric Starter Ass'yElectric Starter Ass'y
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6515176011 Starter RelayStarter Relay
-
7605352573 Steel StripSteel Strip
-
8M33200 Nut M6Nut M6
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10605352572 CoverCover
-
11410301203 Battery, 18 Amperes. Includes 11 to 12Battery, 18 Amperes. Includes 11 to 12
-
12295500849 Battery Fastener KitBattery Fastener Kit
-
13570151000 Protection CapProtection Cap
-
14278001771 Protector CapProtector Cap
-
15M5348358 Battery WireBattery Wire
-
16515175483 Ground WireGround Wire
-
17207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
18M20017 Serrated Lock WasherSerrated Lock Washer
-
19M40327 Allen Screw M6 X 12Allen Screw M6 X 12
