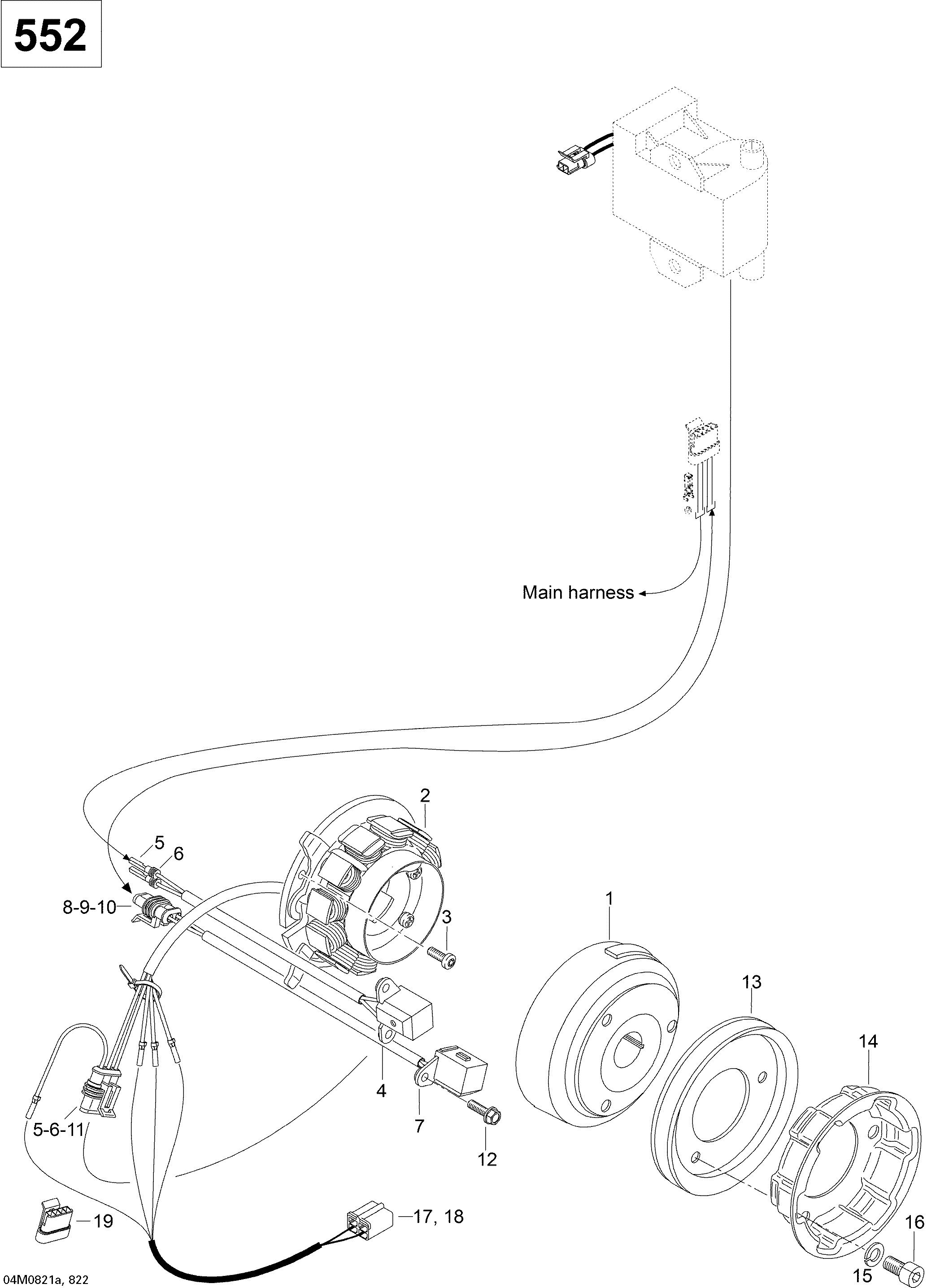

03- Magneto 550F для BRP Ski-Doo Skandic WT 550F - 2008

  • №
    Артикул
    Название
  • 1
    420889376 Flywheel
    Flywheel
  • 2
    420889367 Stator Plate
    Stator Plate
  • 3
    420641521 Screw
    Screw
  • 4
    420665162 Pick-Up (Reverse). Includes 4 to 6
    Pick-Up (Reverse). Includes 4 to 6
  • 5
    278001014 Female Terminal
    Female Terminal
  • 6
    278001013 Wire Seal
    Wire Seal
  • 7
    420665160 Pick-Up (Forward). Includes 7 to 10
    Pick-Up (Forward). Includes 7 to 10
  • 8
    409209500 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 9
    278001014 Female Terminal
    Female Terminal
  • 10
    278001013 Wire Seal
    Wire Seal
  • 11
    409209600 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 12
    420941925 Tapping Screw M5 X 16
    Tapping Screw M5 X 16
  • 13
    420980486 V-Belt Pulley
    V-Belt Pulley
  • 14
    420852414 Rope Sheave
    Rope Sheave
  • 15
    420845311 Lock Washer
    Lock Washer
  • 16
    420440852 Flanged Torx Screw M8 X 16
    Flanged Torx Screw M8 X 16
  • 17
    278001473 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 18
    278001474 Female Lock, 4 Circuits
    Female Lock, 4 Circuits
  • 19
    M42618 Male Housing
    Male Housing
