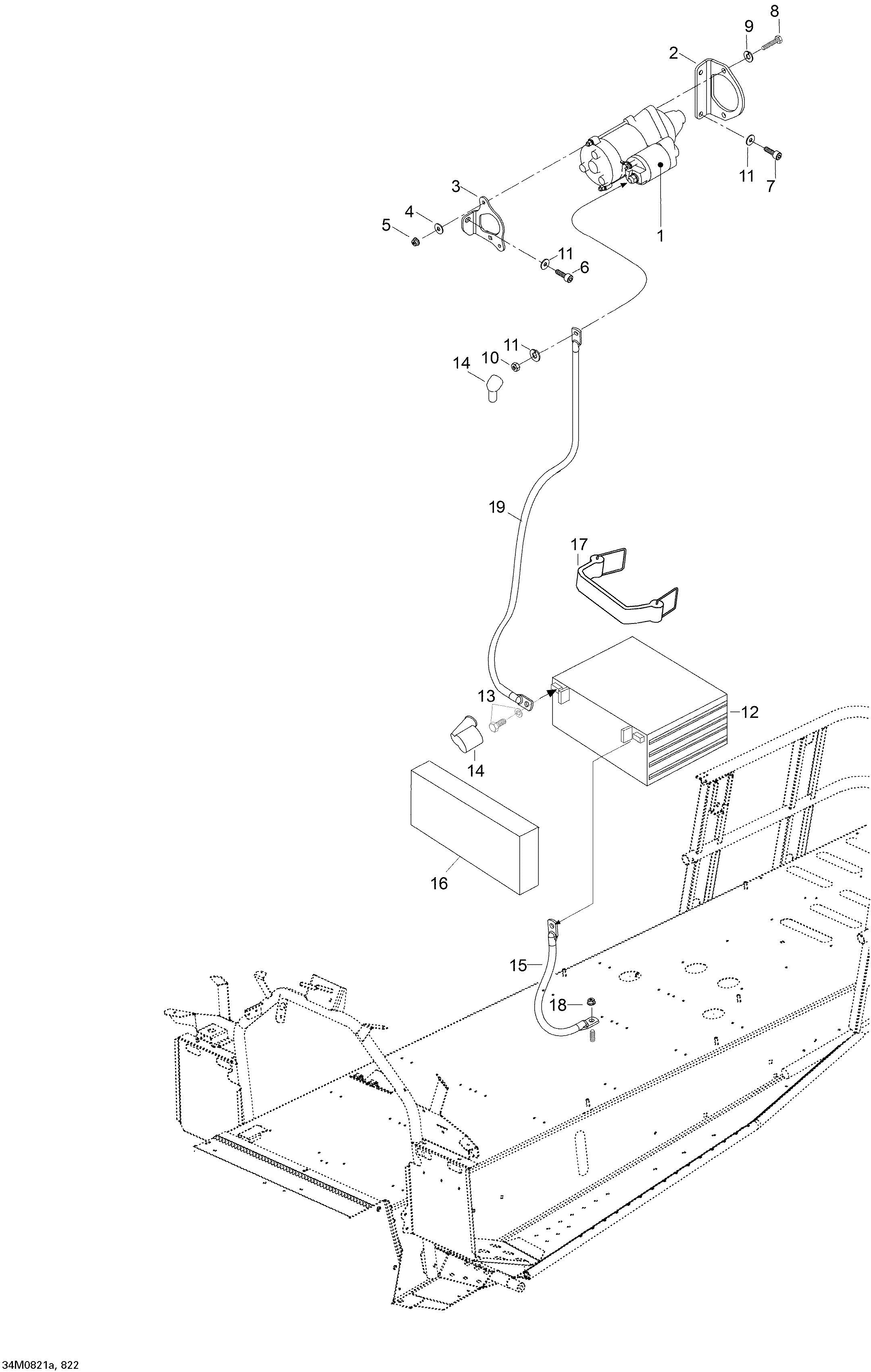

10- Battery And Starter 550F для BRP Ski-Doo Skandic SUV 550F - 2008

  • №
    Артикул
    Название
  • 1
    410212400 Electric Starter Ass'Y
    Electric Starter Ass'Y
  • 2
    420951415 Starter Bracket, P.T.O.
    Starter Bracket, P.T.O.
  • 3
    420951426 Starter Bracket, M.A.G.
    Starter Bracket, M.A.G.
  • 4
    M20008 Washer 5 mm
    Washer 5 mm
  • 5
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 6
    M40066 Hex. Screw M8 X 16
    Hex. Screw M8 X 16
  • 7
    205082044 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 8
    207182044 Hex. Screw M8 X 20
    Hex. Screw M8 X 20
  • 9
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 10
    M33003 Nut
    Nut
  • 11
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 12
    410301203 Battery, 18 Amperes. Includes 11 to 13
    Battery, 18 Amperes. Includes 11 to 13
  • 13
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 14
    570151000 Protection Cap
    Protection Cap
  • 15
    515175483 Ground Wire
    Ground Wire
  • 16
    605352572 Cover
    Cover
  • 17
    515175955 Battery Strap
    Battery Strap
  • 18
    M33200 Nut M6
    Nut M6
