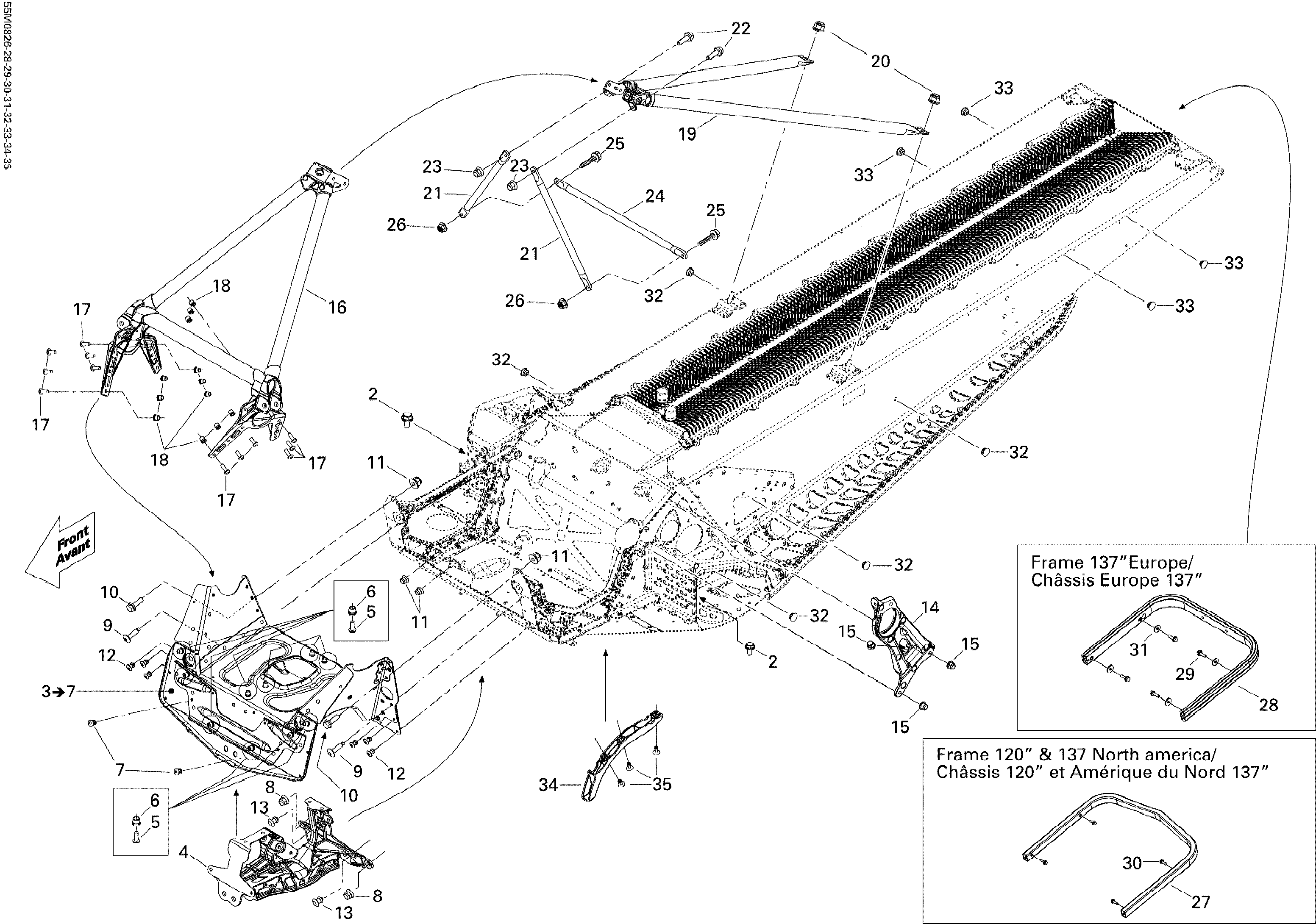

09- Frame and Components для BRP Ski-Doo MX Z TNT 500SS - 2008

  • №
    Артикул
    Название
  • 2
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 3
    518325660 Cross-member. Includes 3 to 7
    Cross-member. Includes 3 to 7
  • 4
    518324860 Front Suspension Support
    Front Suspension Support
  • 5
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 6
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 7
    293150144 Stavex Rivet
    Stavex Rivet
  • 8
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 9
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 10
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 11
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 12
    293150144 Stavex Rivet
    Stavex Rivet
  • 13
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 14
    518324908 Driven Pulley Support
    Driven Pulley Support
  • 15
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 16
    518324844 Front Member
    Front Member
  • 17
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 18
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 19
    518325082 Rear Member
    Rear Member
  • 20
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 21
    518325114 Upper Column Support
    Upper Column Support
  • 22
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 23
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 24
    518325115 Center Column Support
    Center Column Support
  • 25
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 26
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 27
    518324980 Rear Bumper
    Rear Bumper
  • 30
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 32
    293730041 Dart 8 mm
    Dart 8 mm
  • 33
    293730042 Dart
    Dart
  • 34
    518324985 Front Protector
    Front Protector
  • 35
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
