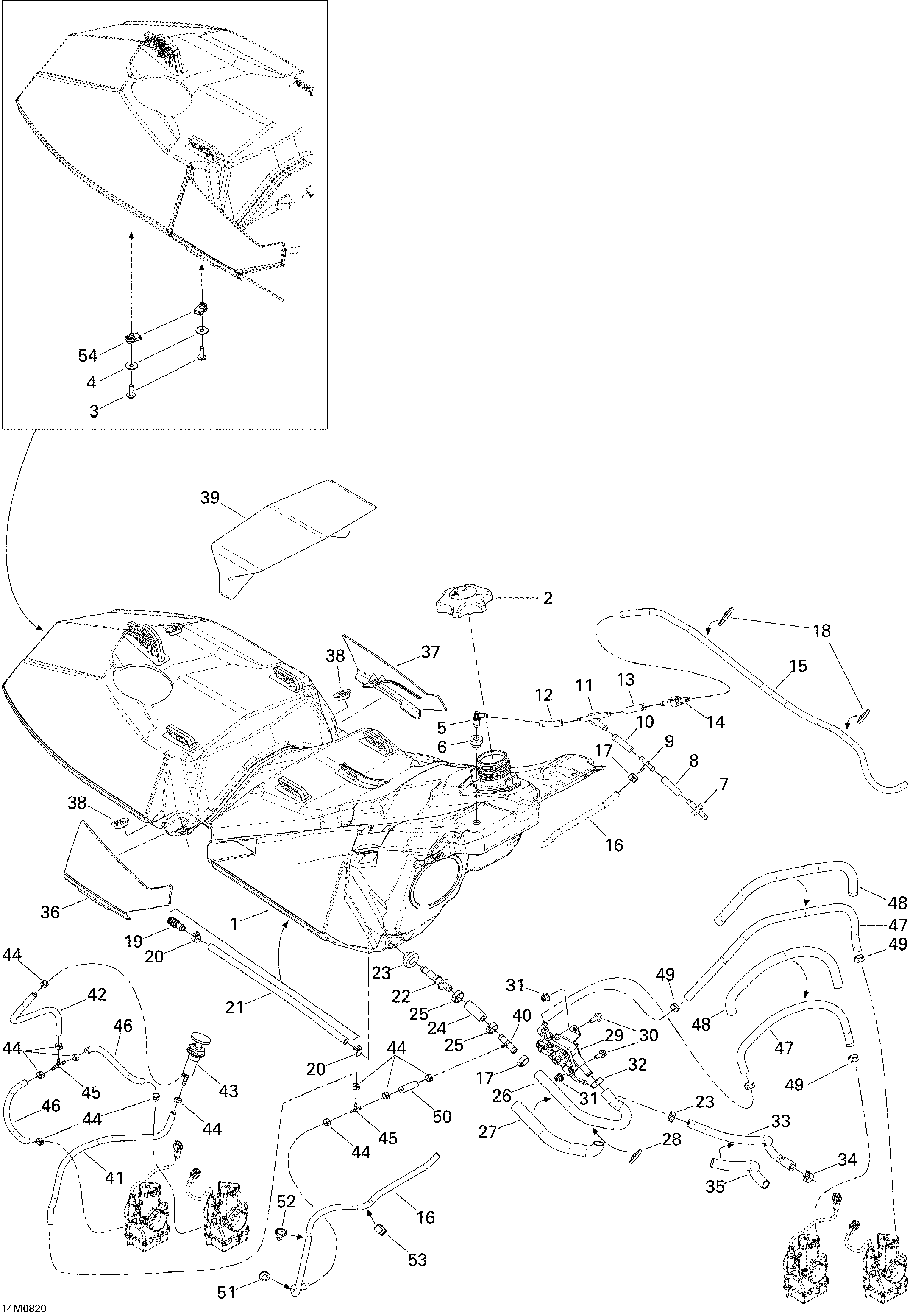

02- Fuel System для BRP Ski-Doo MX Z 600RS - 2008
-
№АртикулНазвание
-
1513033194 Fuel TankFuel Tank
-
2513033103 Fuel Tank CapFuel Tank Cap
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4224060201 Flat WasherFlat Washer
-
5513033517 Male ConnectorMale Connector
-
6513033189 GrommetGrommet
-
7275500398 Check ValveCheck Valve
-
8415080200 Polyurethane HosePolyurethane Hose
-
9414222500 T-fittingT-fitting
-
10415080200 Polyurethane HosePolyurethane Hose
-
11293710059 Y FittingY Fitting
-
12415080200 Polyurethane HosePolyurethane Hose
-
13415080200 Polyurethane HosePolyurethane Hose
-
14513033469 Check ValveCheck Valve
-
15415080200 Polyurethane HosePolyurethane Hose
-
16513033423 HoseHose
-
17293650043 ClipClip
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19414872100 Fuel FilterFuel Filter
-
20513033010 Norma Spring ClampNorma Spring Clamp
-
21513033332 HoseHose
-
22414872700 Male ConnectorMale Connector
-
23513033435 GrommetGrommet
-
24513033444 HoseHose
-
25293650053 Crimp ClampCrimp Clamp
-
26513033439 Formed HoseFormed Hose
-
27415080000 Tubing 16 mmTubing 16 mm
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29513033420 Fuel PumpFuel Pump
-
30207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32414415200 Universal Spring ClampUniversal Spring Clamp
-
33513033111 Formed HoseFormed Hose
-
34513033029 Spring ClampSpring Clamp
-
35409901800 Tubing 13 mmTubing 13 mm
-
36513033418 RH CapRH Cap
-
37513033419 LH CapLH Cap
-
38513033326 Shoulder BushingShoulder Bushing
-
39513033451 FoamFoam
-
40415119300 T-FittingT-Fitting
-
41513033423 HoseHose
-
42513033423 HoseHose
-
43513033441 PrimerPrimer
-
44293650043 ClipClip
-
45414222400 T-FittingT-Fitting
-
46513033423 HoseHose
-
47513033448 HoseHose
-
48409901800 Tubing 13 mmTubing 13 mm
-
49293650025 Oetiker ClampOetiker Clamp
-
50513033423 HoseHose
-
51517303974 GrommetGrommet
-
52293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
53414227300 ClipClip
-
54250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
