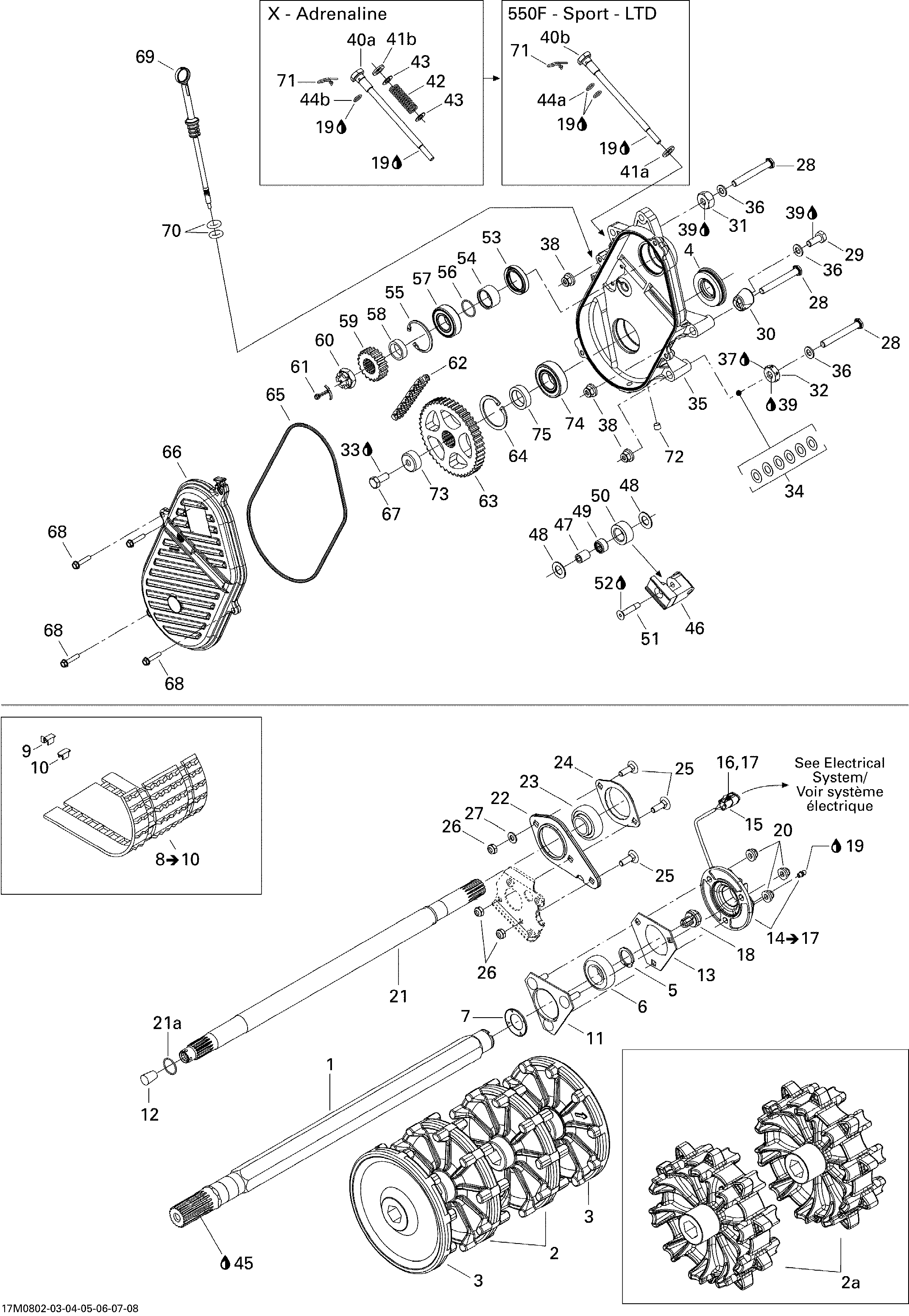

05- Drive System X для BRP Ski-Doo MX Z 550X - 2008

  • №
    Артикул
    Название
  • 1
    501027400 Drive Axle
    Drive Axle
  • 2a
    504152502 Sprocket, 10 Teeth, Interior/exterior. 550F X. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
    Sprocket, 10 Teeth, Interior/exterior. 550F X. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
  • 4
    504151918 Oil Seal Ass'y
    Oil Seal Ass'y
  • 5
    371910200 Circlip
    Circlip
  • 6
    504152009 Ball Bearing
    Ball Bearing
  • 7
    501017400 Bearing Protector
    Bearing Protector
  • 8
    504152558 Track 15'' X 121'' X 1.25'' Ass'y. Includes 8 to 10, 550F X
    Track 15'' X 121'' X 1.25'' Ass'y. Includes 8 to 10, 550F X
  • 9
    504152410 Guide
    Guide
  • 10
    504152651 Cleat
    Cleat
  • 11
    504151860 Bearing Housing
    Bearing Housing
  • 12
    414784800 Cork. 550F X
    Cork. 550F X
  • 13
    501025000 Flange
    Flange
  • 14
    504152345 Rotation Sensor. Includes 14 to 17
    Rotation Sensor. Includes 14 to 17
  • 15
    515175671 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 16
    278000632 Female Terminal
    Female Terminal
  • 17
    515175676 Female Lock, 3 Circuits
    Female Lock, 3 Circuits
  • 18
    504152040 Magnetic Adaptor
    Magnetic Adaptor
  • 19
    219700417 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 20
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 21
    504152018 Counter Shaft. 550F X
    Counter Shaft. 550F X
  • 22
    504151968 Spacer
    Spacer
  • 23
    504152535 Ball Bearing
    Ball Bearing
  • 24
    501026900 Flange
    Flange
  • 25
    207782544 Carriage Bolt, M8 X 25
    Carriage Bolt, M8 X 25
  • 26
    232581414 Hex. Elastic Nut M8
    Hex. Elastic Nut M8
  • 27
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 28
    250000151 Hex. Screw M10 X 80
    Hex. Screw M10 X 80
  • 29
    207102544 Hex. Screw M10 X 25
    Hex. Screw M10 X 25
  • 30
    504152252 Spacer
    Spacer
  • 31
    504083800 Spacer
    Spacer
  • 32
    504152237 Spacer
    Spacer
  • 33
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 34
    504073700 Washer
    Washer
  • 35
    504152482 Chaincase. 550F X
    Chaincase. 550F X
  • 36
    503175800 Washer
    Washer
  • 37
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
  • 38
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 39
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 40a
    504151946 Adjustment Screw. 550F X
    Adjustment Screw. 550F X
  • 41b
    503189148 Washer. 550F X
    Washer. 550F X
  • 42
    504151945 Spring. 550F X
    Spring. 550F X
  • 43
    503189564 Washer. 550F X
    Washer. 550F X
  • 44b
    504151954 O-Ring. 550F X
    O-Ring. 550F X
  • 45
    219700417 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 46
    504151940 Chain Tensioner. 550F X
    Chain Tensioner. 550F X
  • 47
    504080200 Spacer
    Spacer
  • 48
    504080300 Washer
    Washer
  • 49
    405403000 Needle Bearing
    Needle Bearing
  • 50
    414531300 Roller
    Roller
  • 51
    732601144 Screw
    Screw
  • 52
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 53
    415049300 Seal. 550F X
    Seal. 550F X
  • 54
    507031500 Spacer. 550F X
    Spacer. 550F X
  • 55
    371901700 Circlip
    Circlip
  • 56
    414876700 O-Ring. 550F X
    O-Ring. 550F X
  • 57
    293350055 Ball Bearing
    Ball Bearing
  • 58
    504152587 Shim
    Shim
  • 59
    504152030 Sprocket, 19 Teeth. 550F X Europe
    Sprocket, 19 Teeth. 550F X Europe
  • 59
    504152031 Sprocket, 19 Teeth. 550F X North America
    Sprocket, 19 Teeth. 550F X North America
  • 60
    250000012 Hex. Castle Nut M20 X 1.5
    Hex. Castle Nut M20 X 1.5
  • 61
    371006300 Pin Cotter
    Pin Cotter
  • 62
    504151830 Drive Chain, 72 Links
    Drive Chain, 72 Links
  • 63
    504148500 43 Teeth Sprocket, Large
    43 Teeth Sprocket, Large
  • 64
    415064300 Circlip, Interior
    Circlip, Interior
  • 65
    415046400 O-Ring
    O-Ring
  • 66
    504152471 Chaincase Cover
    Chaincase Cover
  • 67
    207102544 Hex. Screw M10 X 25
    Hex. Screw M10 X 25
  • 68
    210263080 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 69
    504151703 Filler Cap Ass'y
    Filler Cap Ass'y
  • 70
    414969400 O-Ring
    O-Ring
  • 71
    414575600 Hair Pin
    Hair Pin
  • 72
    504151921 Plug 1/8''-27
    Plug 1/8''-27
  • 73
    504152460 Cap
    Cap
  • 74
    504152005 Ball Bearing
    Ball Bearing
  • 75
    504152649 Shim
    Shim
