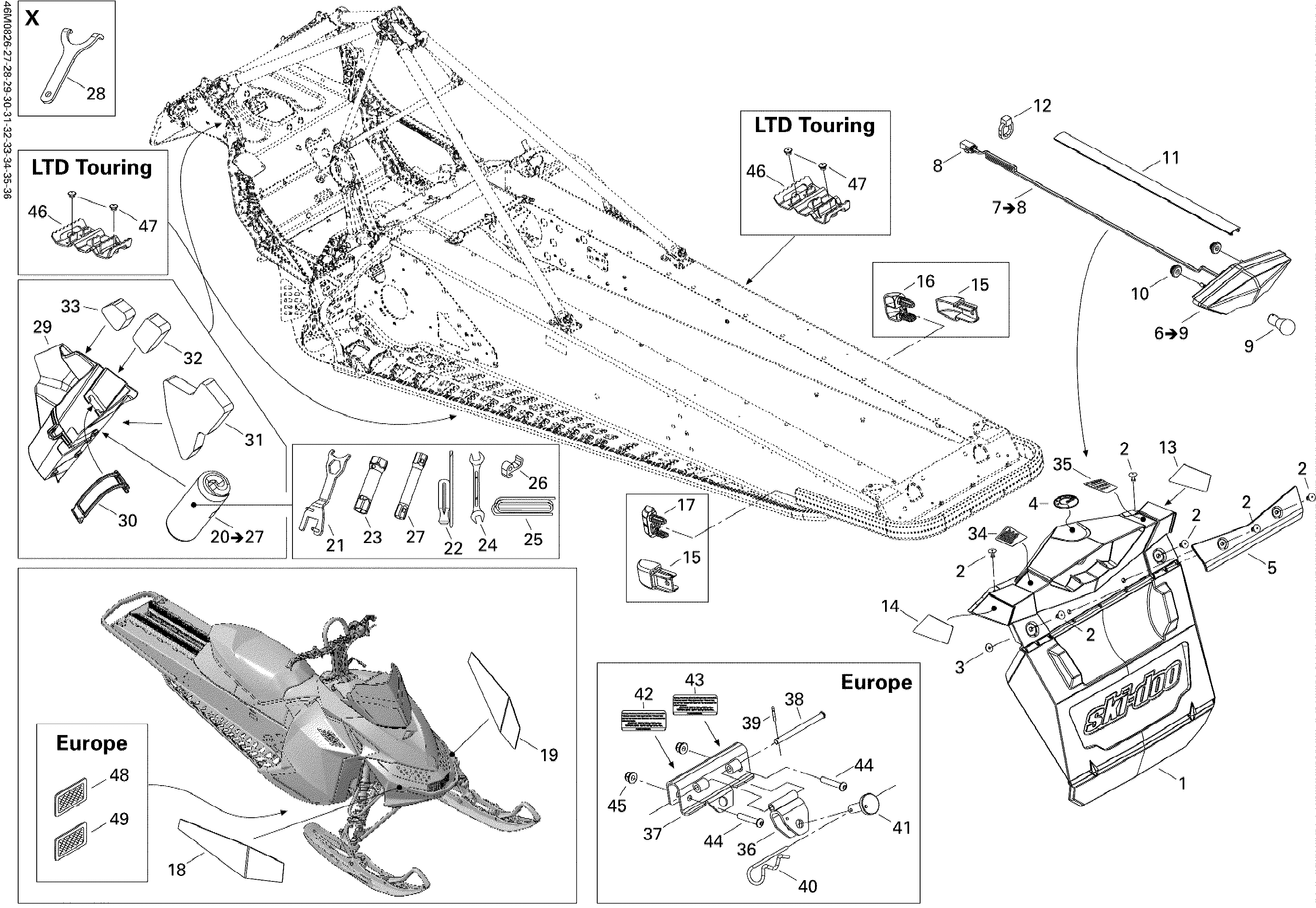

09- Utilities для BRP Ski-Doo GSX LTD TOURING 600 HO SDI - 2008
-
№АртикулНазвание
-
1520000704 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000587 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000677 Wiring Harness. Includes 7 to 8Wiring Harness. Includes 7 to 8
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9520000758 BulbBulb
-
10705001119 GrommetGrommet
-
11520000654 TrimTrim
-
13520000716 Rear ReflectorRear Reflector
-
14520000717 Rear ReflectorRear Reflector
-
15520000567 CapCap
-
18520000718 RH Front ReflectorRH Front Reflector
-
19520000719 LH Front ReflectorLH Front Reflector
-
20520000709 Tool Kit. Includes 20 to 27Tool Kit. Includes 20 to 27
-
21520000721 WrenchWrench
-
22529000004 Driver ScrewDriver Screw
-
23529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
24529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
25412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
26529019400 Starter GripStarter Grip
-
27295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
29520000741 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
31520000743 FoamFoam
-
32520000753 FoamFoam
-
33520000754 FoamFoam
-
34520000695 Warning Decal-Security-EnglishWarning Decal-Security-English
-
34520000696 Warning Decal-Security-FrenchWarning Decal-Security-French
-
35520000697 Warning Decal-Load-EnglishWarning Decal-Load-English
-
35520000698 Warning Decal-Load-FrenchWarning Decal-Load-French
-
46510004907 FootrestFootrest
-
47390406500 Pop Rivet 3/16''Pop Rivet 3/16''
