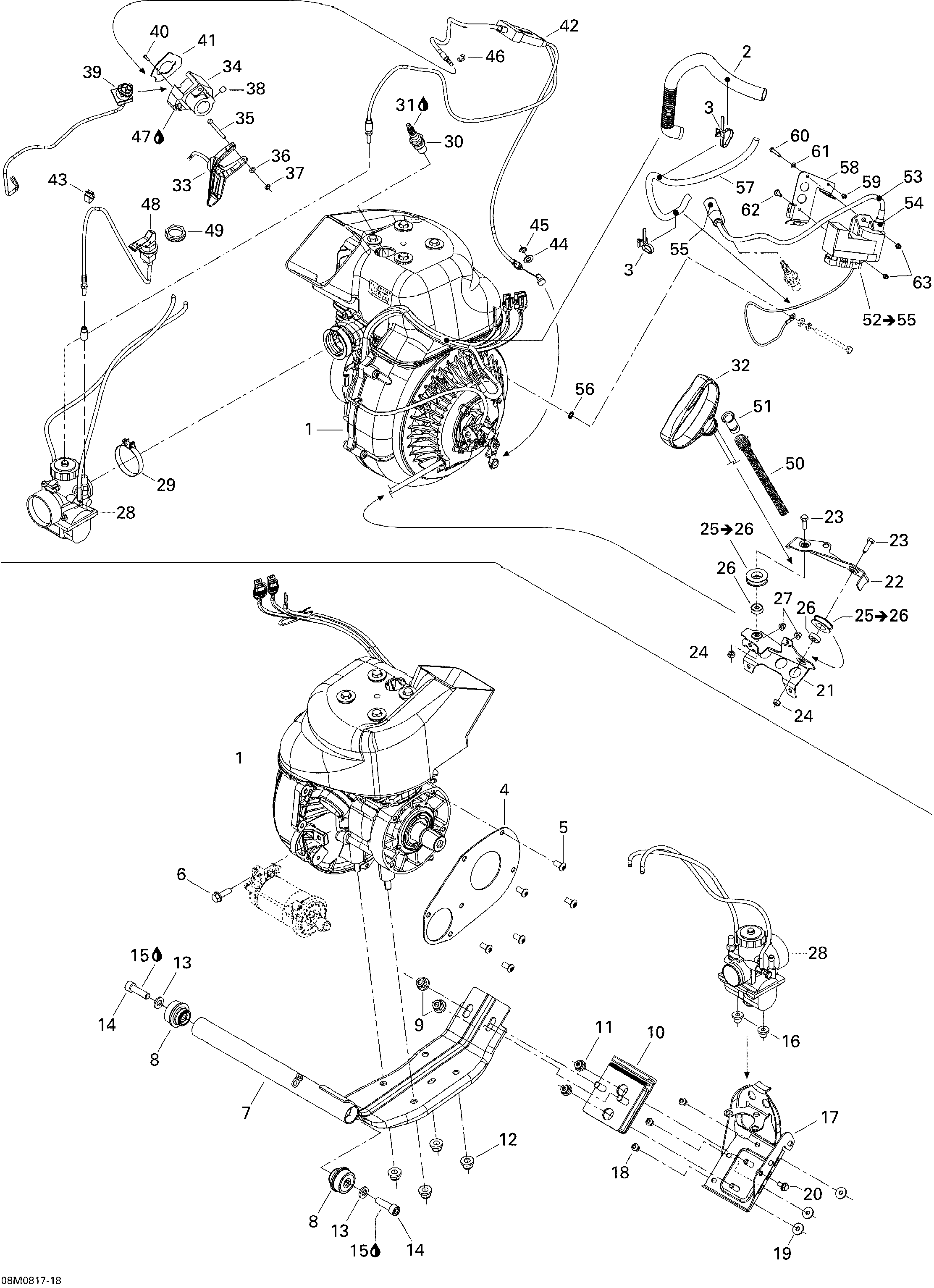

01- Engine And Engine Support для BRP Ski-Doo Freestyle SESSION 300F - 2008
-
№АртикулНазвание
-
1400206007 Engine 277Engine 277
-
2415080000 Tubing 16 mmTubing 16 mm
-
3293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
4512059922 Starter SupportStarter Support
-
5250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
6207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
7512059901 Engine SupportEngine Support
-
8512059691 Rubber MountRubber Mount
-
9233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10512059958 Rubber MountRubber Mount
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
15413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
16293720029 GrommetGrommet
-
17512059918 PlatePlate
-
18293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
20207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
21512060010 Pulley SupportPulley Support
-
22512060032 Reinforcement, GuardReinforcement, Guard
-
23207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25512060184 Pulley Ass'y. Includes 25 to 26Pulley Ass'y. Includes 25 to 26
-
26512060151 Ball BearingBall Bearing
-
27233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
28403138768 Carburetor VM 34-618Carburetor VM 34-618
-
29512059834 Gemi ClampGemi Clamp
-
30414961100 Spark Plug, NGK BR9ESSpark Plug, NGK BR9ES
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
32572084400 Starter GripStarter Grip
-
33512060214 Handle AssyHandle Assy
-
34512060193 Throttle HousingThrottle Housing
-
35414438700 Lever PinLever Pin
-
36234051600 Flat Washer M5Flat Washer M5
-
37293370050 CirclipCirclip
-
38414440800 Set Screw M8 X 10Set Screw M8 X 10
-
39515176690 Kill SwitchKill Switch
-
40250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
41512060390 PlatePlate
-
42512059907 Throttle CableThrottle Cable
-
43414227300 ClipClip
-
44234081100 Flat Washer 8 mmFlat Washer 8 mm
-
45414753500 CirclipCirclip
-
46414274500 CirclipCirclip
-
47293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
48512060005 Choke CableChoke Cable
-
49512060016 Plastic NutPlastic Nut
-
50512059535 Rope GuideRope Guide
-
51512059536 TubeTube
-
52512060006 Calibrated Module. Includes 52 to 55Calibrated Module. Includes 52 to 55
-
53278002198 Spark Plug CableSpark Plug Cable
-
54515174900 Protection CapProtection Cap
-
55278000237 Spark Plug CapSpark Plug Cap
-
56394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
57515175442 Tubing 6 mmTubing 6 mm
-
58512060160 Module SupportModule Support
-
59390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60207054044 Hex. Screw M5 X 40Hex. Screw M5 X 40
-
61234051410 Flat Washer M5Flat Washer M5
-
62207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
63233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
