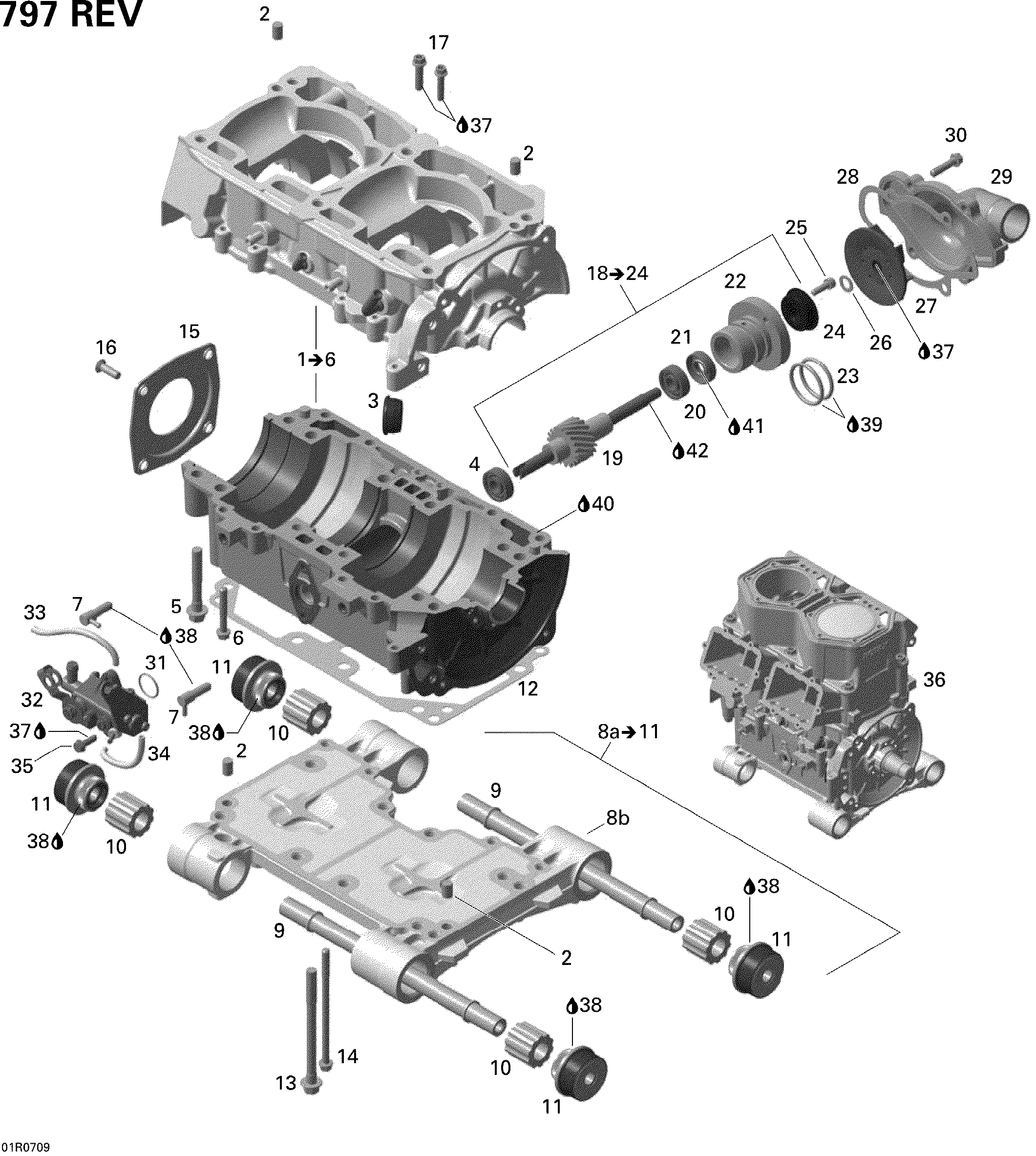

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Summit XRS - 2007
-
№АртикулНазвание
-
1420890743 Crankcase Ass'y. Includes 1 to 6Crankcase Ass'y. Includes 1 to 6
-
2420632010 Pin 8 X 12Pin 8 X 12
-
3420860965 Cable GrommetCable Grommet
-
4420232100 Ball BearingBall Bearing
-
5420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
6420440282 Flanged Torx Screw M6 X 40Flanged Torx Screw M6 X 40
-
7420956510 Check ValveCheck Valve
-
8a420812681 Engine Base Plate Ass'y. Includes 8a to 11Engine Base Plate Ass'y. Includes 8a to 11
-
9420929580 Rod ThreadedRod Threaded
-
10512060182 DamperDamper
-
11512060181 Rubber MountRubber Mount
-
12420430070 Gasket Engine SupportGasket Engine Support
-
13420941517 Hex. Screw M8 X 105Hex. Screw M8 X 105
-
14420440612 Flanged Torx Screw M6 X 105Flanged Torx Screw M6 X 105
-
15420812420 CoverCover
-
16420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
17420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420837676 Water Pump/Oil Pump Shaft Ass'y. Includes 18 to 24Water Pump/Oil Pump Shaft Ass'y. Includes 18 to 24
-
20420232100 Ball BearingBall Bearing
-
21420230196 Oil SealOil Seal
-
23420950890 O-RingO-Ring
-
24420650370 Rotary SealRotary Seal
-
25420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
26420944033 Washer 8.4Washer 8.4
-
27420922805 Water ImpellerWater Impeller
-
28420430050 GasketGasket
-
29420822280 Water Pump HousingWater Pump Housing
-
30420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
31293300041 O-RingO-Ring
-
32420888774 Oil Pump Ass'yOil Pump Ass'y
-
33414413800 Oil LineOil Line
-
34414413800 Oil LineOil Line
-
35420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
36420079701 Short Block 797 REVShort Block 797 REV
-
36a420079710 Bottom End AssemblyBottom End Assembly
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
39413707000 Molykote 111, 150 GMolykote 111, 150 G
-
40293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
41420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
-
42413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
