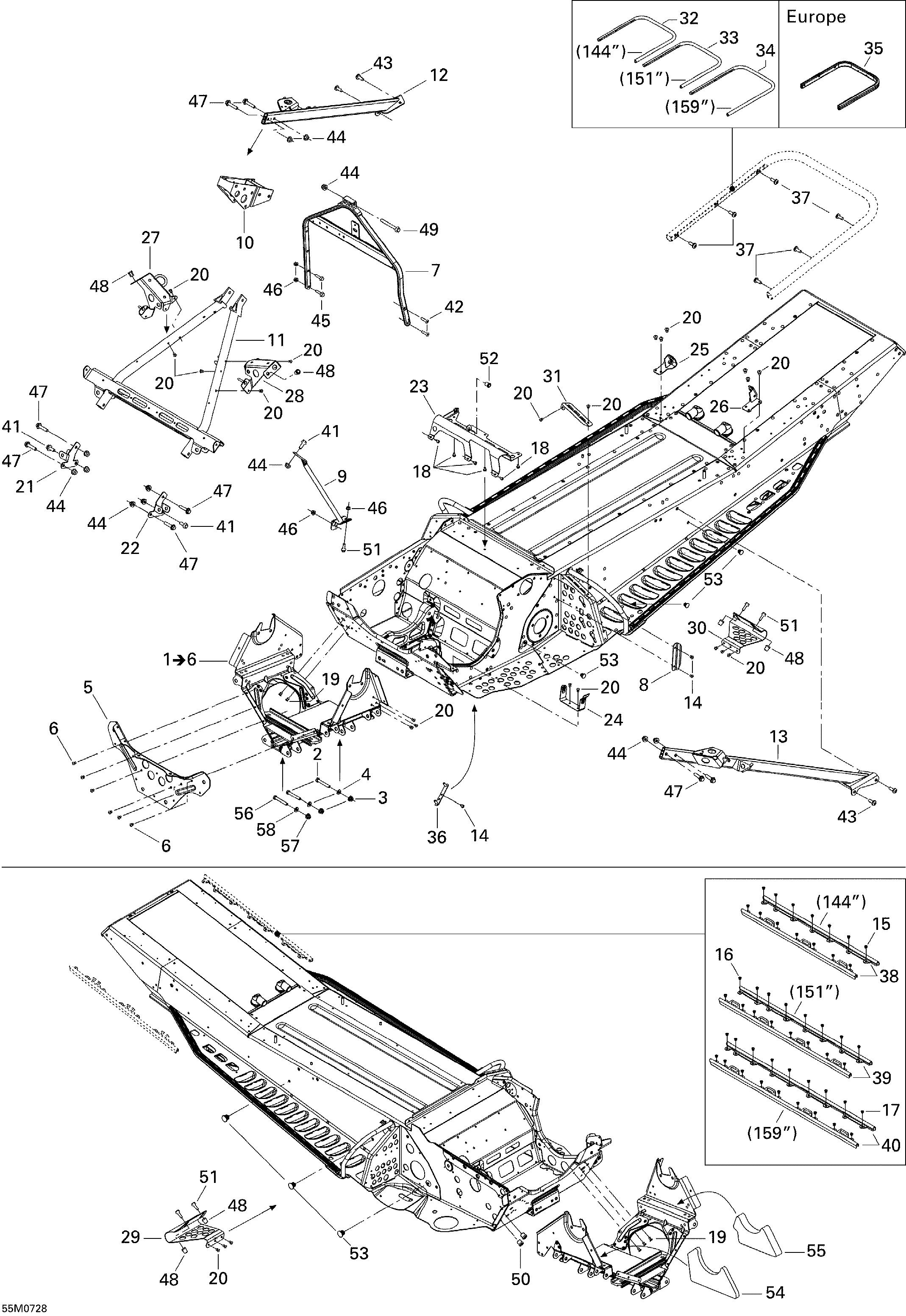

09- Frame and Components для BRP Ski-Doo Summit X - 2007

№

Артикул

Название
1

518325423 Cross Member. Includes 1 to 6

Cross Member. Includes 1 to 6

38 410 ₽
2

207085544 Hex. Screw M8 X 55

Hex. Screw M8 X 55

160 ₽
3

233281414 Hex Flanged Elastic Nut M8

Hex Flanged Elastic Nut M8

490 ₽
4

234081410 Flat Washer 8 mm

Flat Washer 8 mm

310 ₽
5

518325422 Front Plate

Front Plate

2 930 ₽
6

390909100 Avex Rivet

Avex Rivet

120 ₽
7

518323979 Handle Support

Handle Support

17 820 ₽
8

518317504 Cable Protector

Cable Protector

210 ₽
9

518323472 Brace, Black

Brace, Black

1 910 ₽
10

518323854 Bracket Block

Bracket Block

5 010 ₽
11

518324739 Upper Cross Member

Upper Cross Member

11 240 ₽
12

518324182 RH Member

RH Member

9 520 ₽
13

518324183 LH Member

LH Member

8 110 ₽
14

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
15

390402400 Pop Rivet 3/16''. Track 144''

Pop Rivet 3/16''. Track 144''

120 ₽
16

390402400 Pop Rivet 3/16''. Track 151''

Pop Rivet 3/16''. Track 151''

120 ₽
17

390402400 Pop Rivet 3/16''. Track 159''

Pop Rivet 3/16''. Track 159''

120 ₽
18

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
19

390909100 Avex Rivet

Avex Rivet

120 ₽
20

390909200 Avex Rivet

Avex Rivet

170 ₽
21

518322461 RH Shock Bracket

RH Shock Bracket

760 ₽
22

518322462 LH Shock Bracket

LH Shock Bracket

760 ₽
23

518323532 Intake Air Admission Support

Intake Air Admission Support

5 340 ₽
24

518322726 Guard Belt Bracket, Black

Guard Belt Bracket, Black

1 220 ₽
25

518323769 RH Bracket, Black

RH Bracket, Black

1 220 ₽
26

518323770 LH Bracket, Black

LH Bracket, Black

1 220 ₽
27

518323535 RH Console Support

RH Console Support

4 650 ₽
28

518323536 LH Console Support

LH Console Support

0 ₽
29

518324391 RH Toe Hold

RH Toe Hold

1 340 ₽
30

518324392 LH Toe Hold

LH Toe Hold

1 450 ₽
31

518323105 Plate, Black

Plate, Black

670 ₽
32

518324832 Rear Bumper. Track 144''

Rear Bumper. Track 144''

10 760 ₽
33

518324832 Rear Bumper. Track 151''

Rear Bumper. Track 151''

10 760 ₽
34

518324833 Rear Bumper. Track 159''

Rear Bumper. Track 159''

10 760 ₽
35

518325228 Rear Bumper. Track 151'' (Europe)

Rear Bumper. Track 151'' (Europe)

9 950 ₽
36

518323896 Trunk Bracket, Black

Trunk Bracket, Black

800 ₽
37

236282084 Hex Screw M8 X 20

Hex Screw M8 X 20

540 ₽
38

518324970 RH Wire Protector. Track 144''

RH Wire Protector. Track 144''

1 290 ₽
38

518324973 LH Wire Protector. Track 144''

LH Wire Protector. Track 144''

1 290 ₽
39

518324971 RH Wire Protector. Track 151''

RH Wire Protector. Track 151''

1 100 ₽
39

518324974 LH Wire Protector. Track 151''

LH Wire Protector. Track 151''

1 290 ₽
40

518324940 RH Wire Protector. Track 159''

RH Wire Protector. Track 159''

1 290 ₽
40

518324942 LH Wire Protector. Track 159''

LH Wire Protector. Track 159''

1 350 ₽
41

207682044 Hex. Flanged Screw M8 X 20

Hex. Flanged Screw M8 X 20

390 ₽
42

205862044 Socket Head Screw M6 X 20, Scotch Grip

Socket Head Screw M6 X 20, Scotch Grip

1 450 ₽
43

250000154 Torx Screw M8 X 13

Torx Screw M8 X 13

160 ₽
44

233281414 Hex Flanged Elastic Nut M8

Hex Flanged Elastic Nut M8

490 ₽
45

207662544 Hex Flanged Screw M6 X 25

Hex Flanged Screw M6 X 25

240 ₽
46

233261414 Hex Flanged Elastic Nut M6

Hex Flanged Elastic Nut M6

490 ₽
47

207683544 Hex Flanged Screw M8 X 35

Hex Flanged Screw M8 X 35

600 ₽
48

415107300 Insert

Insert

0 ₽
49

207687044 Hex Flanged Screw M8 X 70

Hex Flanged Screw M8 X 70

2 610 ₽
50

293450166 Insert

Insert

410 ₽
51

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
52

293450232 Insert

Insert

710 ₽
53

518321954 Fastener Panel

Fastener Panel

2 320 ₽
54

518323453 RH Front Foam

RH Front Foam

800 ₽
55

518323007 LH Front Foam

LH Front Foam

800 ₽
56

207085544 Hex. Screw M8 X 55

Hex. Screw M8 X 55

160 ₽
57

233281414 Hex Flanged Elastic Nut M8

Hex Flanged Elastic Nut M8

490 ₽
58

234081410 Flat Washer 8 mm

Flat Washer 8 mm

310 ₽
