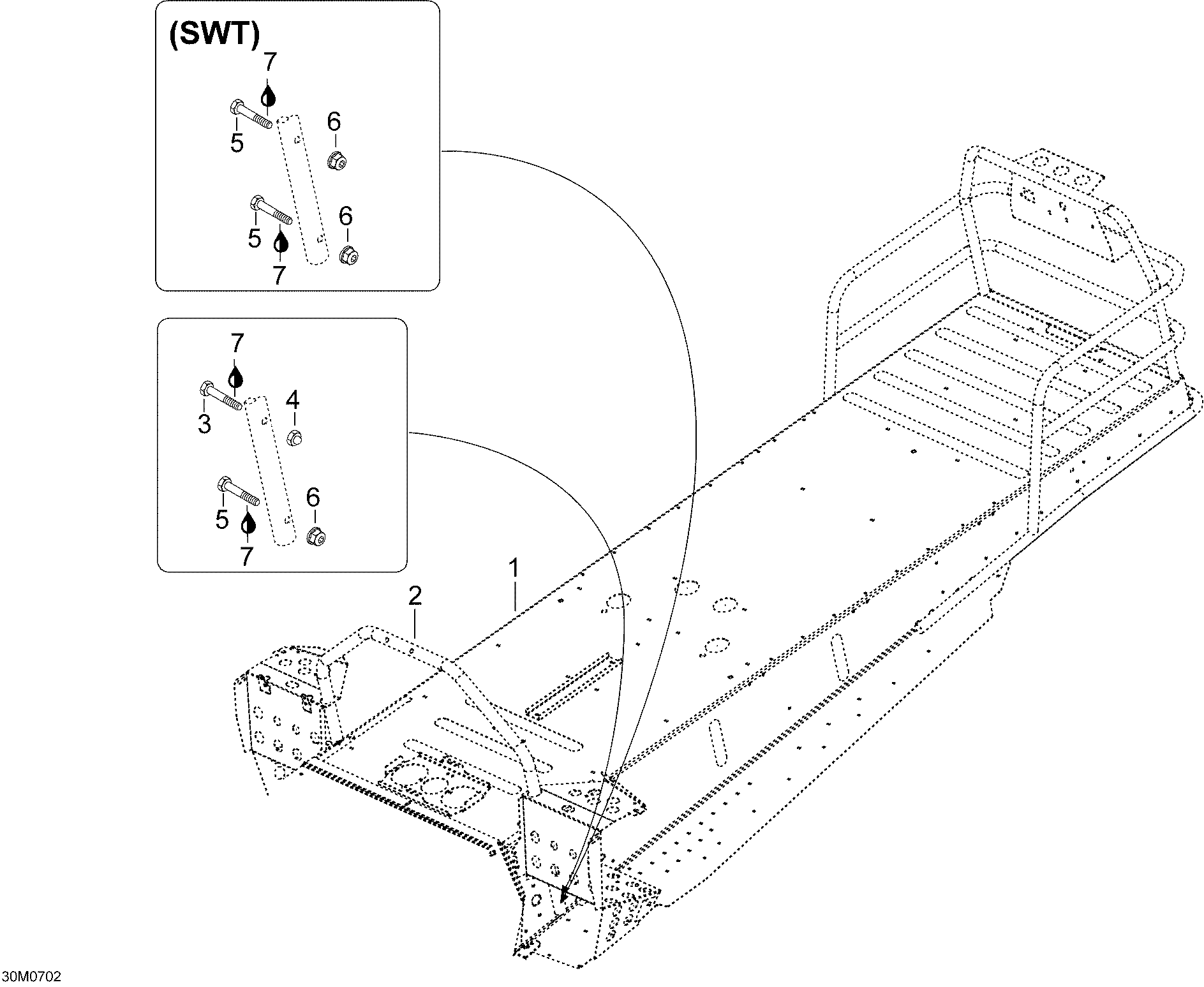

09- Frame WT 600 для BRP Ski-Doo Skandic WT 600 - 2007
-
№АртикулНазвание
-
1605153404 Frame Ass'y. Includes 1 to 6Frame Ass'y. Includes 1 to 6
-
2605150258 Handle SupportHandle Support
-
3207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
4232061414 Hex Nut M6Hex Nut M6
-
5207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
6M33200 Nut M6Nut M6
-
7293800060 Loctite 243, 10 mlLoctite 243, 10 ml
