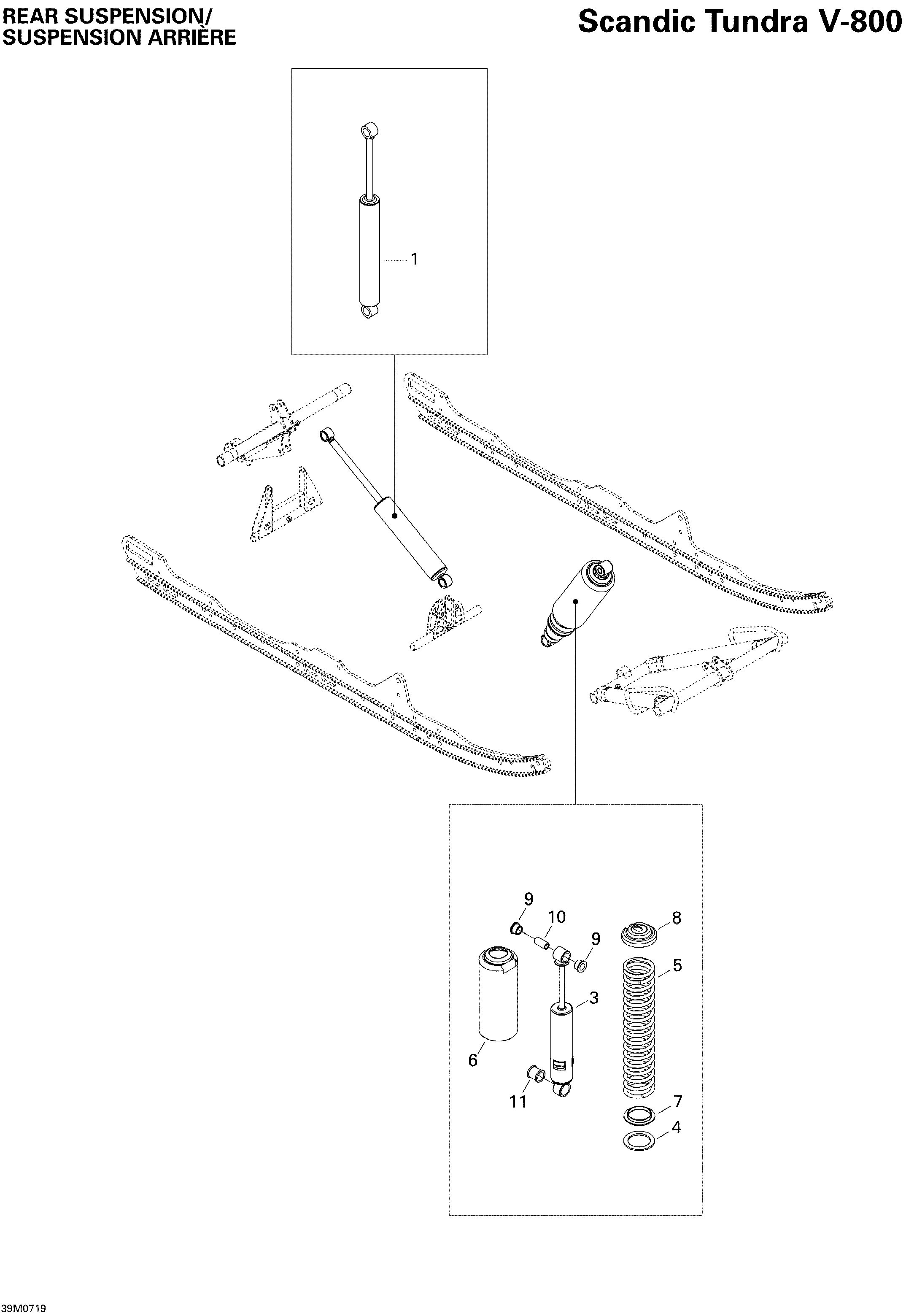

08- Rear Suspension Shocks для BRP Ski-Doo Skandic Tundra V-800 - 2007
-
№АртикулНазвание
-
1503191228 Rear Shock. C/URear Shock. C/U
-
1503191229 Rear Shock. EURRear Shock. EUR
-
3503190992 Center ShockCenter Shock
-
4505070401 WasherWasher
-
5503191135 SpringSpring
-
6503191126 ProtectorProtector
-
7503187500 Spring GuideSpring Guide
-
8503140600 Spring StopperSpring Stopper
-
9503189117 CushionCushion
-
10503189282 BushingBushing
-
11503189271 CushionCushion
