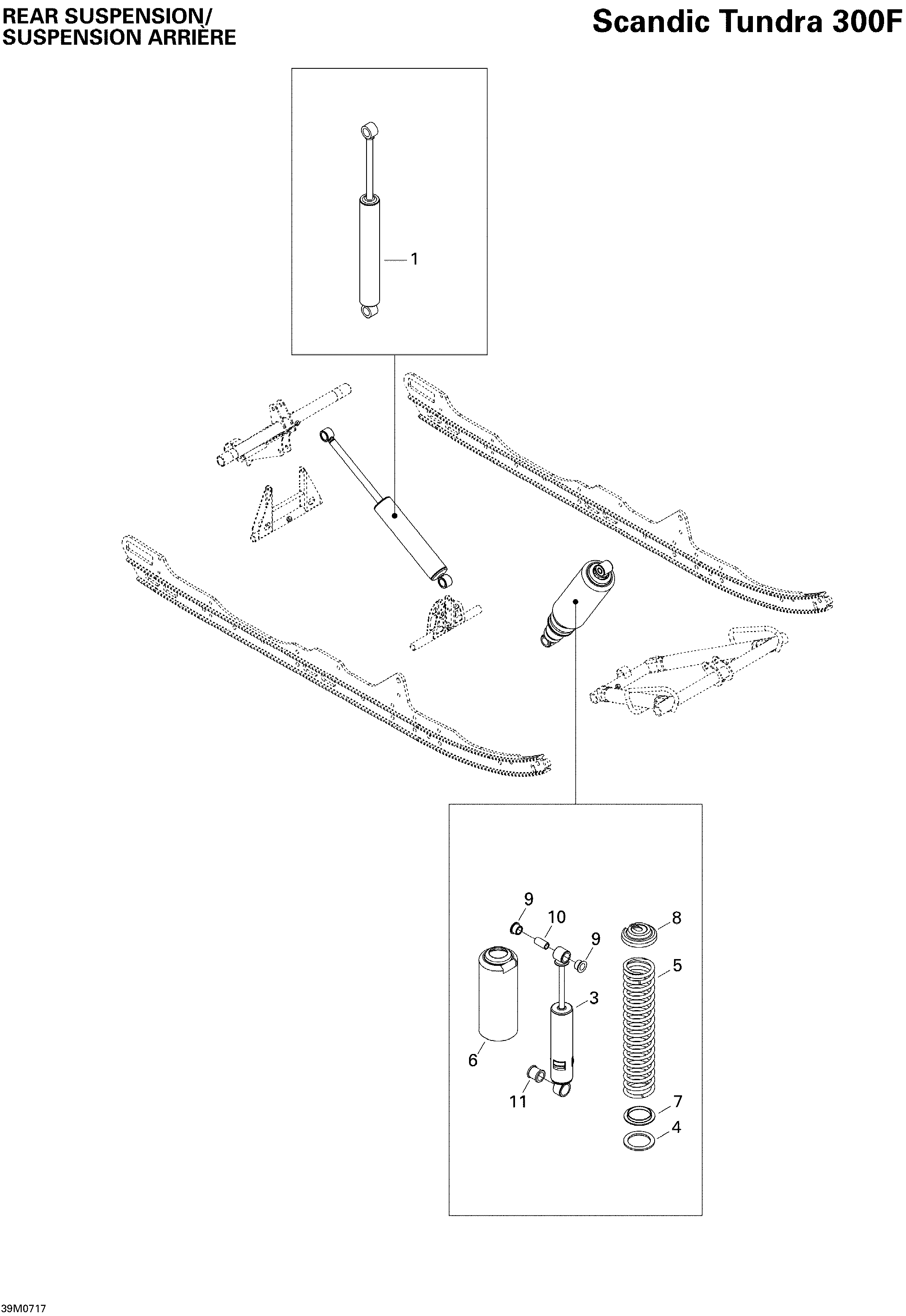

08- Rear Suspension Shocks для BRP Ski-Doo Skandic Tundra 300F - 2007
-
№АртикулНазвание
-
1503191228 Rear Shock. C/URear Shock. C/U
-
1503191229 Rear Shock. EURRear Shock. EUR
-
3503190746 Center ShockCenter Shock
-
4503184400 WasherWasher
-
5503191347 Spring. C/USpring. C/U
-
5503191488 Spring. EURSpring. EUR
-
6503191126 ProtectorProtector
-
7505071954 Spring GuideSpring Guide
-
8503140600 Spring StopperSpring Stopper
-
9503189117 CushionCushion
-
10503189282 BushingBushing
-
11503189271 CushionCushion
