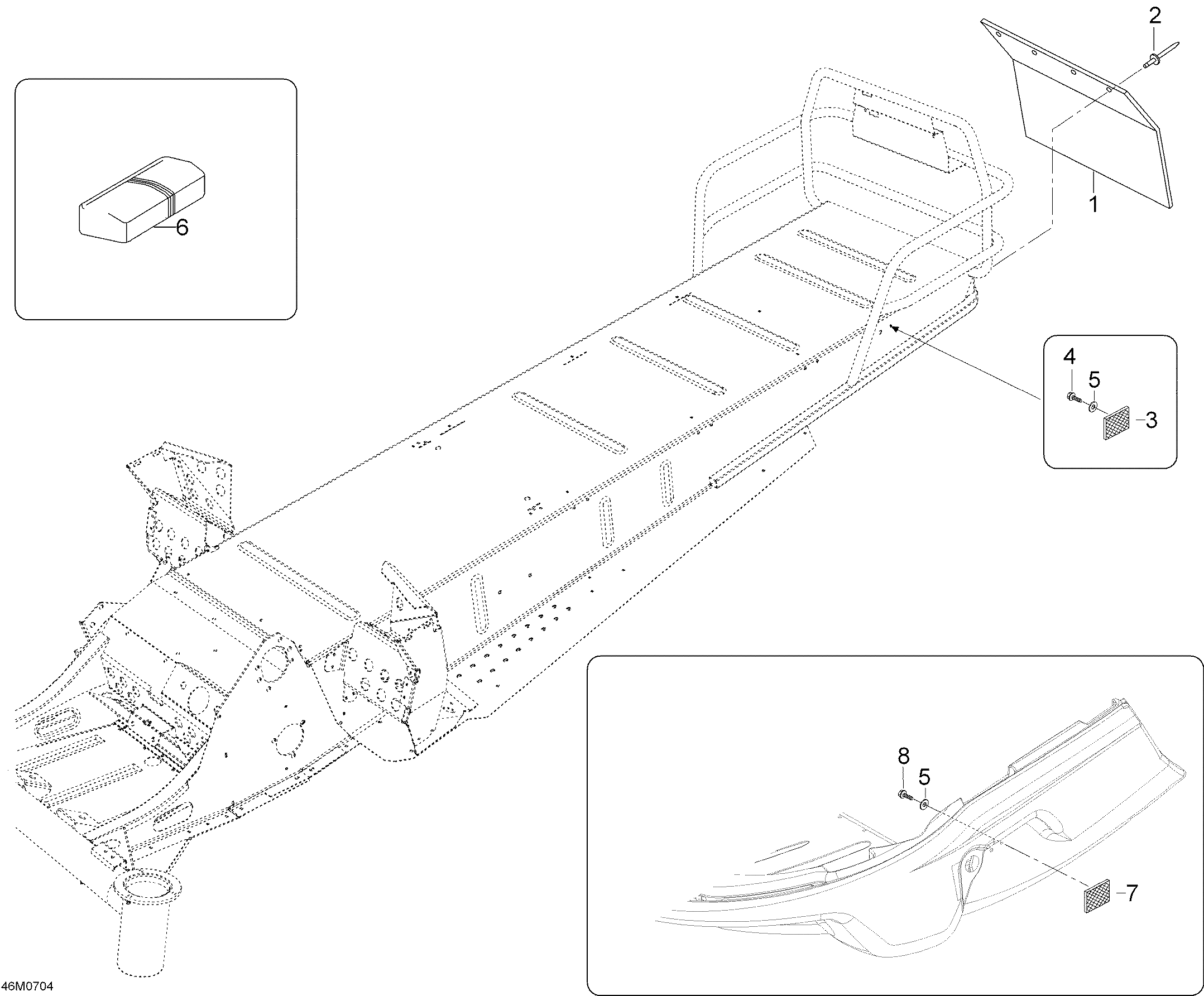

09- Utilities для BRP Ski-Doo Skandic LT 440F - 2007
-
№АртикулНазвание
-
1572013800 Snow GuardSnow Guard
-
2M36036 Rivet-BlackRivet-Black
-
3414510100 Reflector, RedReflector, Red
-
4M40070 ScrewScrew
-
5234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
6605350525 Tool KitTool Kit
-
7414510200 Reflector, AmberReflector, Amber
-
8M40063 Screw M5x12Screw M5x12
