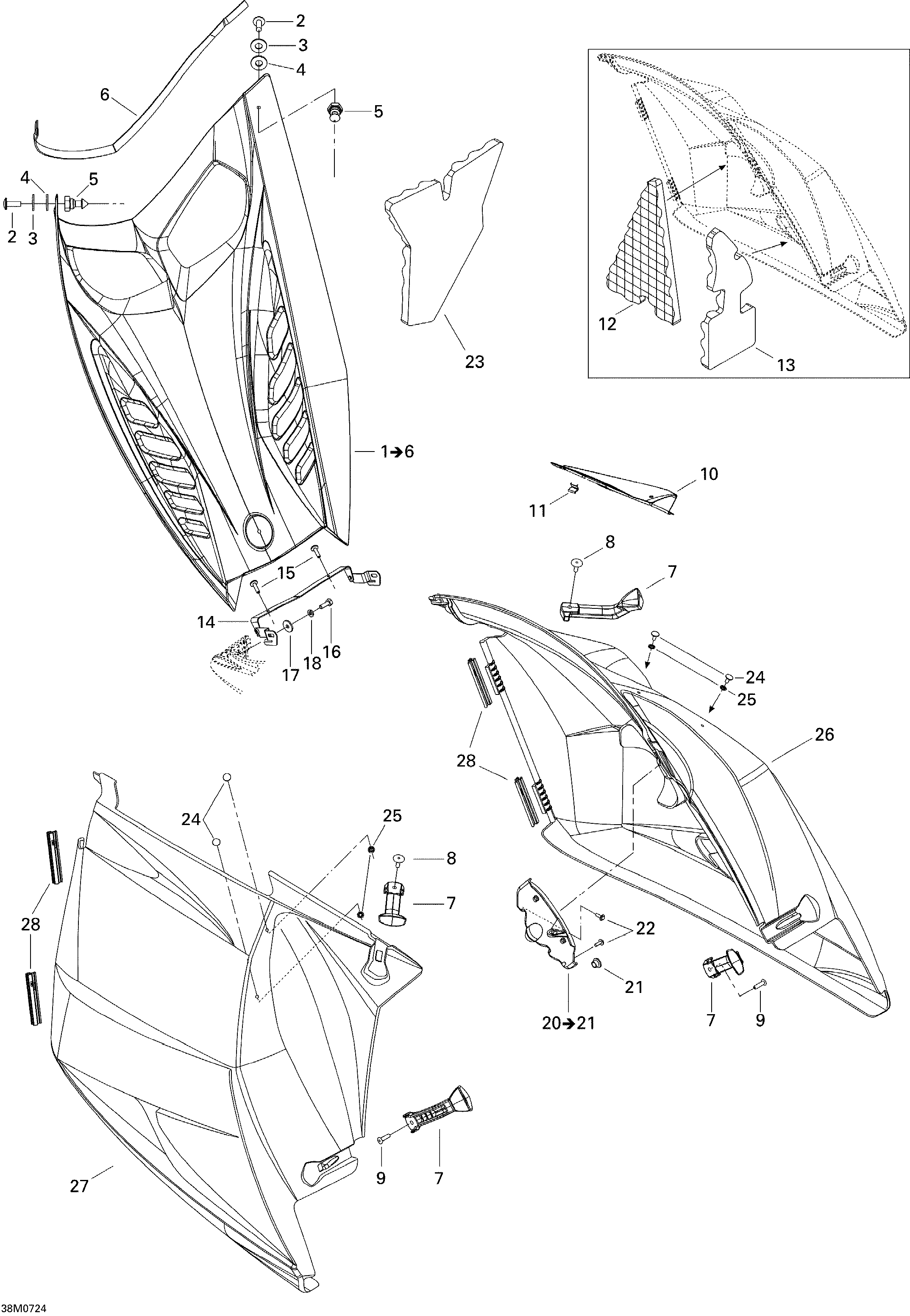

09- Hood для BRP Ski-Doo MX Z XRS 600 HO SDI - 2007
-
№АртикулНазвание
-
1517303706 Hood XRS Ass'y. Includes 1 to 6Hood XRS Ass'y. Includes 1 to 6
-
2250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
3250200025 Washer M5Washer M5
-
4250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
5517303729 KnobKnob
-
6293250087 GasketGasket
-
7517302448 Panel LatchPanel Latch
-
8293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
9390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
10517302938 RH Panel GrillRH Panel Grill
-
11517302789 ClipClip
-
12517303082 RH Panel Front FoamRH Panel Front Foam
-
13517303492 RH Panel Rear FoamRH Panel Rear Foam
-
14517303679 HingeHinge
-
15293150103 Pop RivetPop Rivet
-
16207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer M6, BlackLock Washer M6, Black
-
20517303482 RH Console. Includes 20 to 21RH Console. Includes 20 to 21
-
21275500241 Cap, BlackCap, Black
-
22241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
23517303755 Hood FoamHood Foam
-
24517303070 Windshield DartWindshield Dart
-
25250100034 Push NutPush Nut
-
26517303180 RH Panel, Yellow, B-190RH Panel, Yellow, B-190
-
27517302805 LH Panel, Yellow B-190LH Panel, Yellow B-190
-
28517302823 Hinge LockHinge Lock
