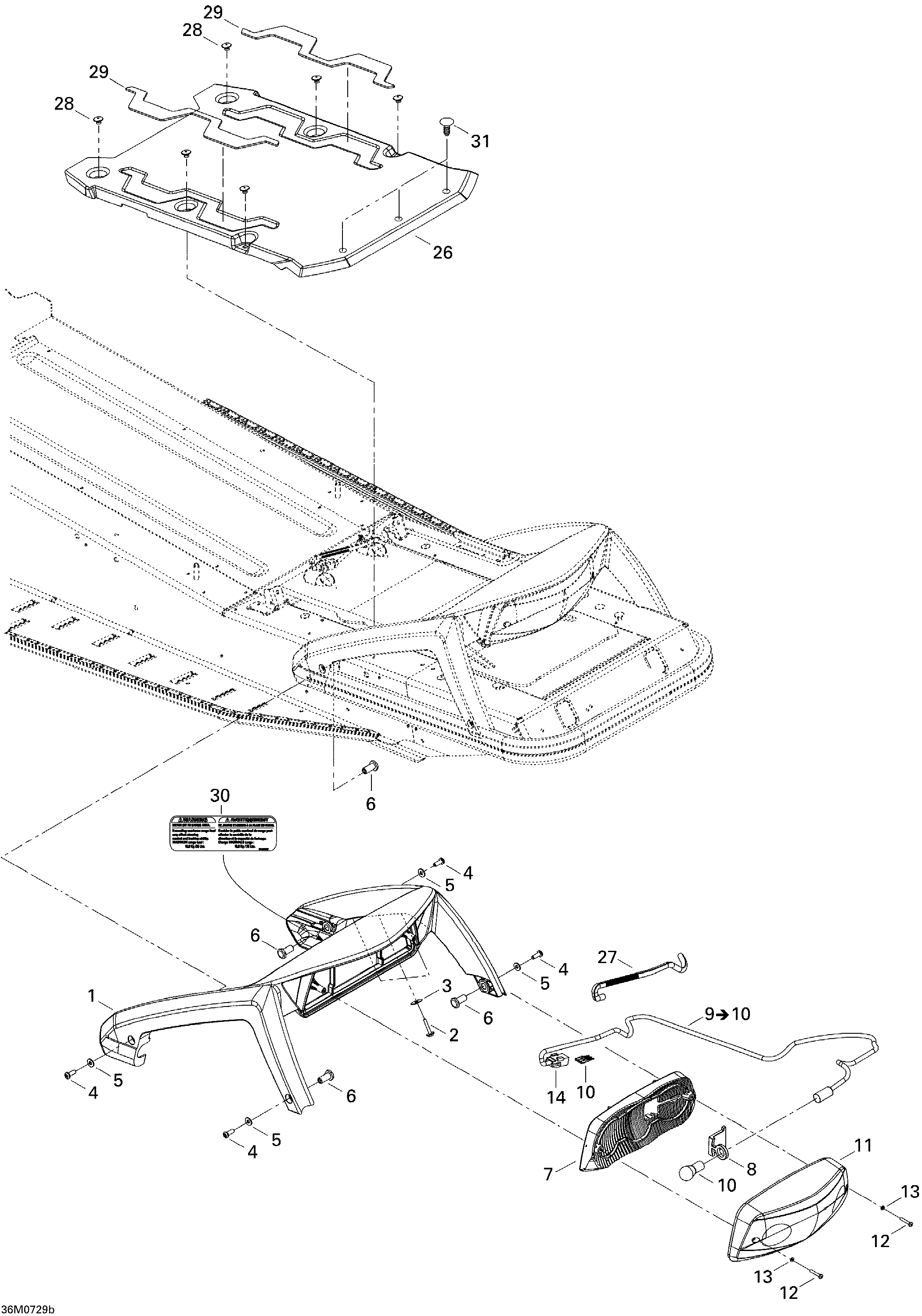

09- Luggage Rack REN для BRP Ski-Doo MX Z Renegade 800 HO PTEK - 2007
-
№АртикулНазвание
-
1511000425 Luggage RackLuggage Rack
-
2250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
3250200040 Flat WasherFlat Washer
-
4250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
5250200039 Flat WasherFlat Washer
-
6511000398 InsertInsert
-
7510004442 ReflectorReflector
-
8511000431 Bulb SupportBulb Support
-
9511000466 Bulb SocketBulb Socket
-
10410504100 Tail Light BulbTail Light Bulb
-
11511000315 LensLens
-
12209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
13414516400 WasherWasher
-
14515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
26511000436 Radiator CoverRadiator Cover
-
27515175442 Tubing 6 mmTubing 6 mm
-
28293150103 Pop RivetPop Rivet
-
29511000396 CarpetCarpet
-
30516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
31293730006 Black DartBlack Dart
