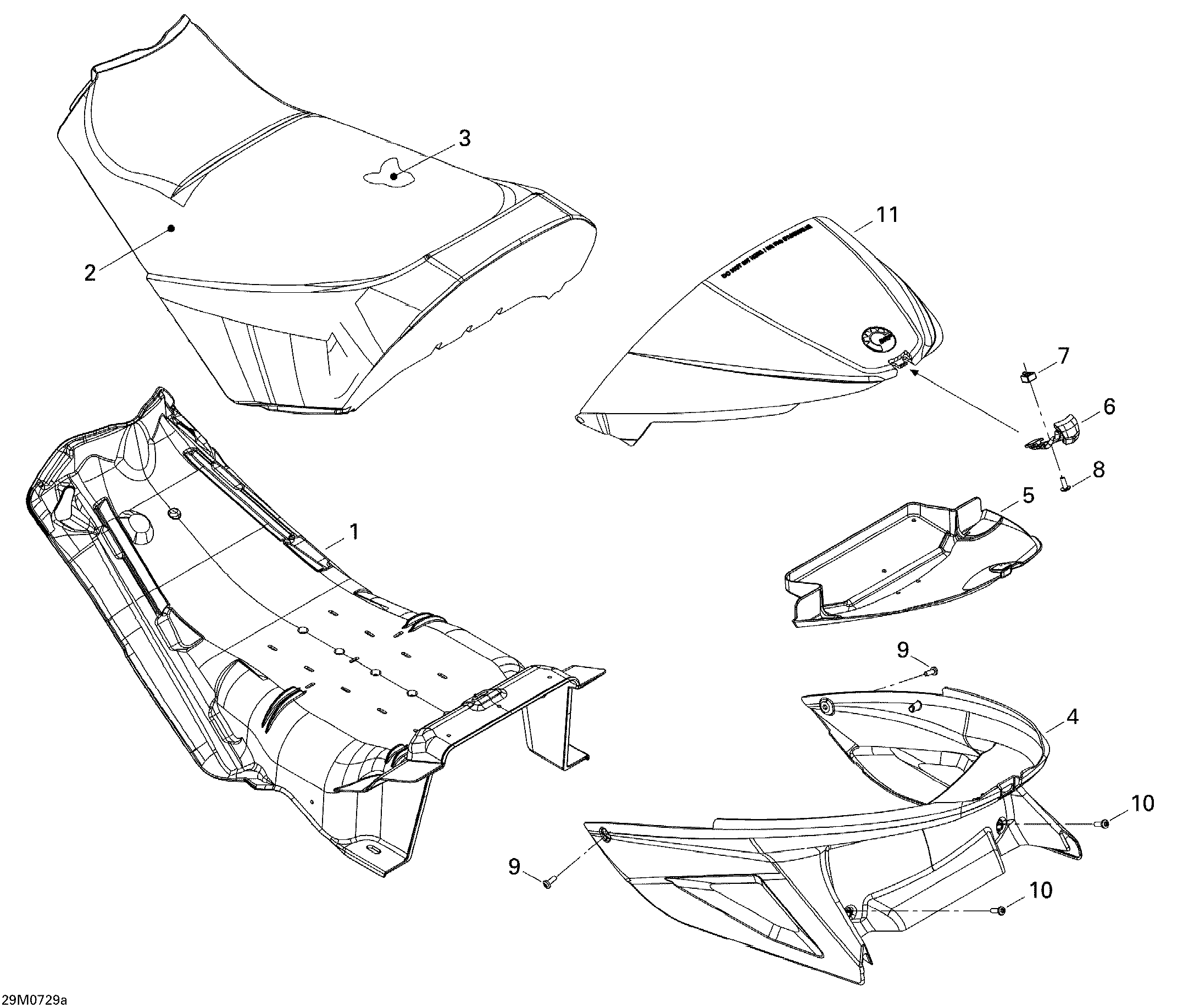

09- Seat REN для BRP Ski-Doo MX Z Renegade 600 HO SDI - 2007
-
№АртикулНазвание
-
1510004575 Seat BaseSeat Base
-
2510004499 Seat Cover. Black/YellowSeat Cover. Black/Yellow
-
2510004728 Seat Cover. White/BlackSeat Cover. White/Black
-
3510004275 Seat FoamSeat Foam
-
4510004628 Trunk, Black. White/BlackTrunk, Black. White/Black
-
4510004629 Trunk, Yellow, B-190. Black/YellowTrunk, Yellow, B-190. Black/Yellow
-
5510004600 Box LinerBox Liner
-
6510003917 BracketBracket
-
7708000046 Nut Housing Ass'y M6Nut Housing Ass'y M6
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11510004631 Cover, BlackCover, Black
