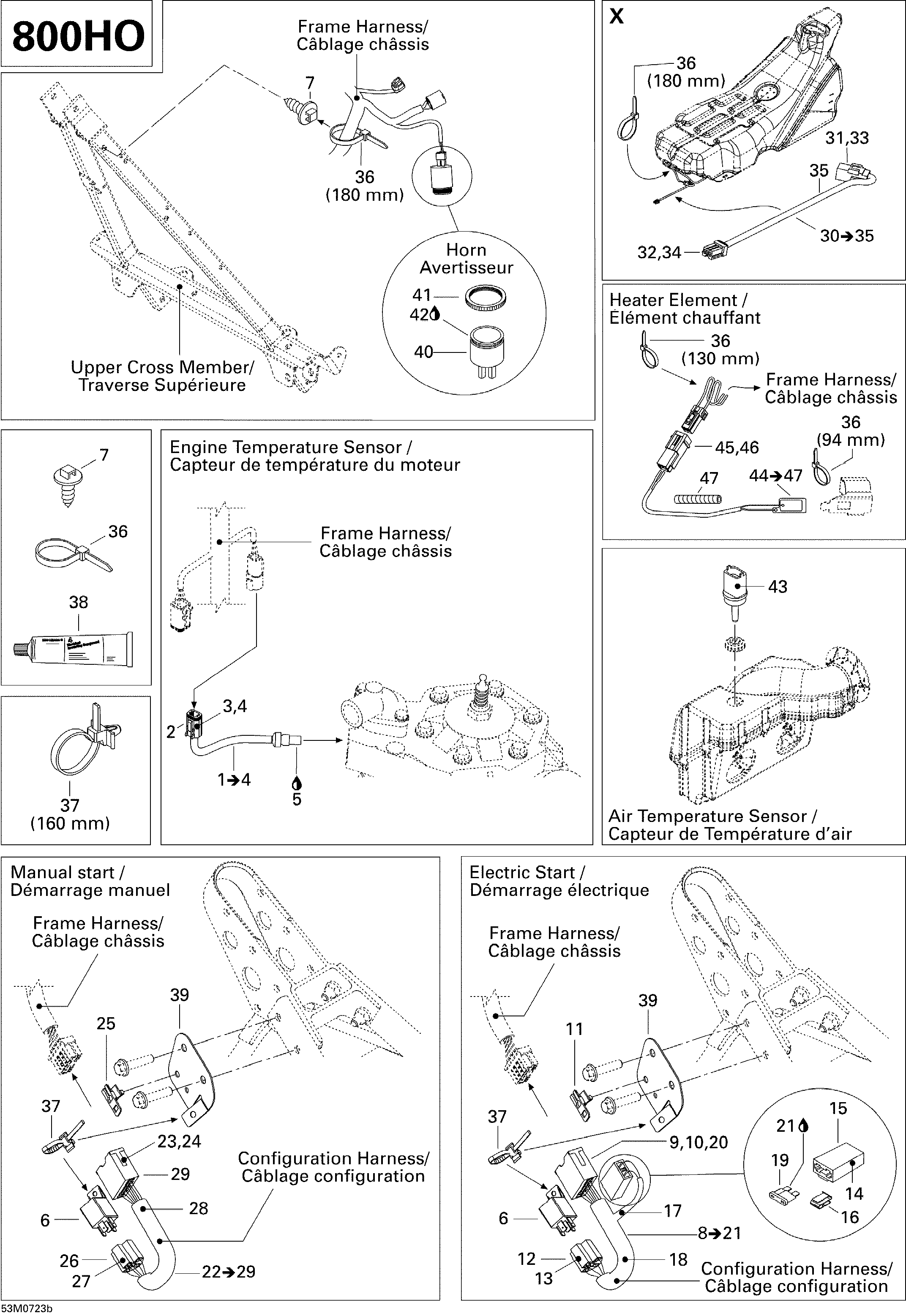

10- Electrical Accessories 2 для BRP Ski-Doo MX Z Blizzard 800 HO PTEK - 2007

  • №
    Артикул
    Название
  • 1
    515176043 Temperature Sensor. Includes 1 to 4
    Temperature Sensor. Includes 1 to 4
  • 2
    278000739 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 3
    278000632 Female Terminal
    Female Terminal
  • 4
    515175677 Male Wedge, 4 Circuits
    Male Wedge, 4 Circuits
  • 5
    293800018 Loctite 592, Pipe Sealant, 50 ml
    Loctite 592, Pipe Sealant, 50 ml
  • 6
    410113200 Relay
    Relay
  • 7
    293730018 Mount Dart
    Mount Dart
  • 8
    515175721 Configuration Harness Ass'y. Electric Start, Includes 8 to 21
    Configuration Harness Ass'y. Electric Start, Includes 8 to 21
  • 9
    515175232 Male Terminal. Electric Start
    Male Terminal. Electric Start
  • 10
    515175273 Male Terminal. Electric Start
    Male Terminal. Electric Start
  • 11
    515175283 Housing Support. Electric Start
    Housing Support. Electric Start
  • 12
    409209900 Female Housing, 5 Circuits. Electric Start
    Female Housing, 5 Circuits. Electric Start
  • 13
    561503100 Female Terminal. Electric Start
    Female Terminal. Electric Start
  • 14
    409011600 Female Terminal. Electric Start
    Female Terminal. Electric Start
  • 15
    409004000 Fuse Holder. Electric Start
    Fuse Holder. Electric Start
  • 16
    409014200 Clip. Electric Start
    Clip. Electric Start
  • 17
    515175442 Tubing 6 mm. Electric Start
    Tubing 6 mm. Electric Start
  • 18
    409901800 Tubing 13 mm. Electric Start
    Tubing 13 mm. Electric Start
  • 19
    278000344 Fuse, 5 Amperes. Electric Start
    Fuse, 5 Amperes. Electric Start
  • 20
    515175720 Male Terminal Housing, 11 Circuits. Electric Start
    Male Terminal Housing, 11 Circuits. Electric Start
  • 21
    293550004 Dielectric Grease, 150 g. Electric Start
    Dielectric Grease, 150 g. Electric Start
  • 22
    515176175 Configuration Harness. Manual Start, Includes 22 to 29
    Configuration Harness. Manual Start, Includes 22 to 29
  • 23
    515175232 Male Terminal. Manual Start
    Male Terminal. Manual Start
  • 24
    515175273 Male Terminal. Manual Start
    Male Terminal. Manual Start
  • 25
    515175283 Housing Support. Manual Start
    Housing Support. Manual Start
  • 26
    409209900 Female Housing, 5 Circuits. Manual Start
    Female Housing, 5 Circuits. Manual Start
  • 27
    561503100 Female Terminal. Manual Start
    Female Terminal. Manual Start
  • 28
    409901800 Tubing 13 mm. Manual Start
    Tubing 13 mm. Manual Start
  • 29
    515175720 Male Terminal Housing, 11 Circuits. Manual Start
    Male Terminal Housing, 11 Circuits. Manual Start
  • 36
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 36
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 36
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 37
    293750009 Tie-Rap 160 mm
    Tie-Rap 160 mm
  • 38
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 39
    515176020 Harness Support
    Harness Support
  • 40
    515176035 Horn
    Horn
  • 41
    414805101 Plastic Nut
    Plastic Nut
  • 42
    296000309 Sealant Silicone, Clear
    Sealant Silicone, Clear
  • 43
    270600000 Air Temperature Sensor
    Air Temperature Sensor
  • 44
    515176473 Heater Element Ass'y. Includes 44 to 47
    Heater Element Ass'y. Includes 44 to 47
  • 45
    515175654 Male Terminal Housing, 2 Circuits
    Male Terminal Housing, 2 Circuits
  • 46
    515175232 Male Terminal
    Male Terminal
  • 47
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
