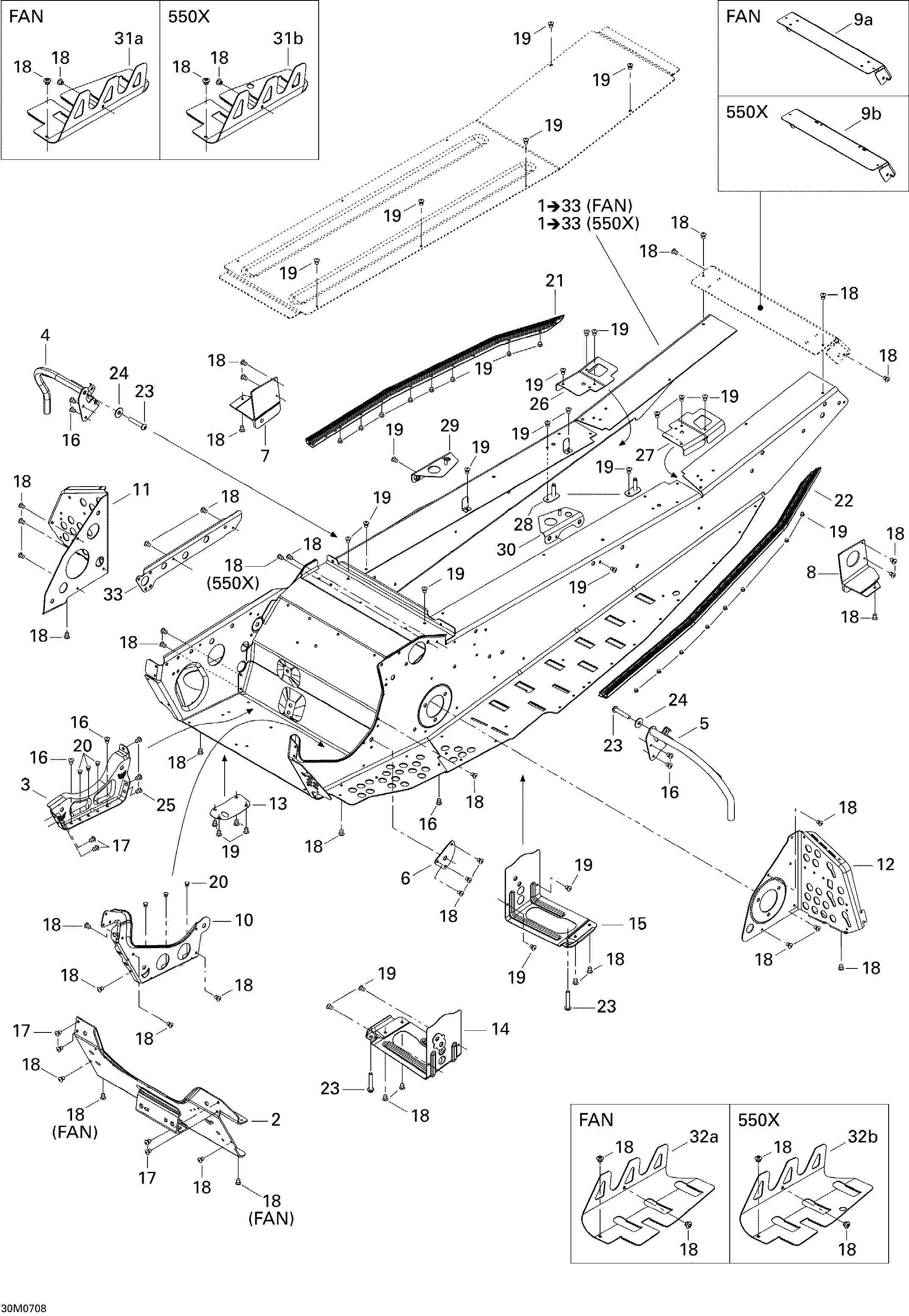

09- Frame FAN для BRP Ski-Doo MX Z 550F - 2007
-
№АртикулНазвание
-
1415129130 Frame. Includes 1 to 33, FANFrame. Includes 1 to 33, FAN
-
2518324114 Front Pan WeldFront Pan Weld
-
3518323346 Engine Support, BlackEngine Support, Black
-
4518324162 RH Toe Hold SupportRH Toe Hold Support
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518324488 RH Slide BracketRH Slide Bracket
-
8518324489 LH Slide BracketLH Slide Bracket
-
9a518324279 Rear Cap. FANRear Cap. FAN
-
10518323241 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
14518324634 RH Reinforcement, BlackRH Reinforcement, Black
-
15518324635 LH Reinforcement, BlackLH Reinforcement, Black
-
16390909200 Avex RivetAvex Rivet
-
17390909100 Avex RivetAvex Rivet
-
18390402200 Pop Rivet 3/16''. FANPop Rivet 3/16''. FAN
-
19390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390910300 Rivet HenrobRivet Henrob
-
21518324953 RH RollerRH Roller
-
22518324954 LH RollerLH Roller
-
23205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
25293150096 RivetRivet
-
26518324431 RH Frame ReinforcementRH Frame Reinforcement
-
27518324432 LH Frame ReinforcementLH Frame Reinforcement
-
28518322791 Tank BracketTank Bracket
-
29518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
30518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
31a518323307 RH Tunnel Liner. FANRH Tunnel Liner. FAN
-
32a518323309 LH Tunnel Liner. FANLH Tunnel Liner. FAN
-
33518323328 RH Tunnel StiffenerRH Tunnel Stiffener
